Dayton Audio RS270-8

Dayton Audio
Preview: Dayton Audio RS270-8 Preview: Dayton Audio RS270-8 back Preview: Dayton Audio RS270-8 front Preview: Dayton Audio RS270-8 frequency chart Preview: Dayton Audio RS270-8 impedance curve Preview: Dayton Audio RS270-8 dimensions
Dayton Audio RS270-8

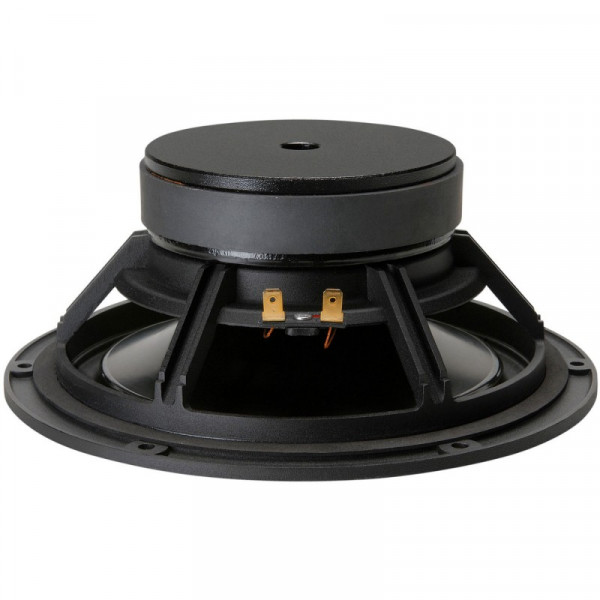

Dayton Audio RS270-8 back

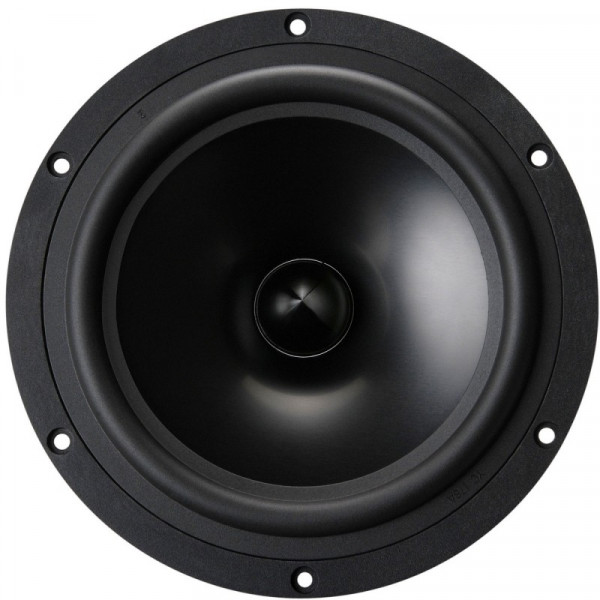

Dayton Audio RS270-8 front

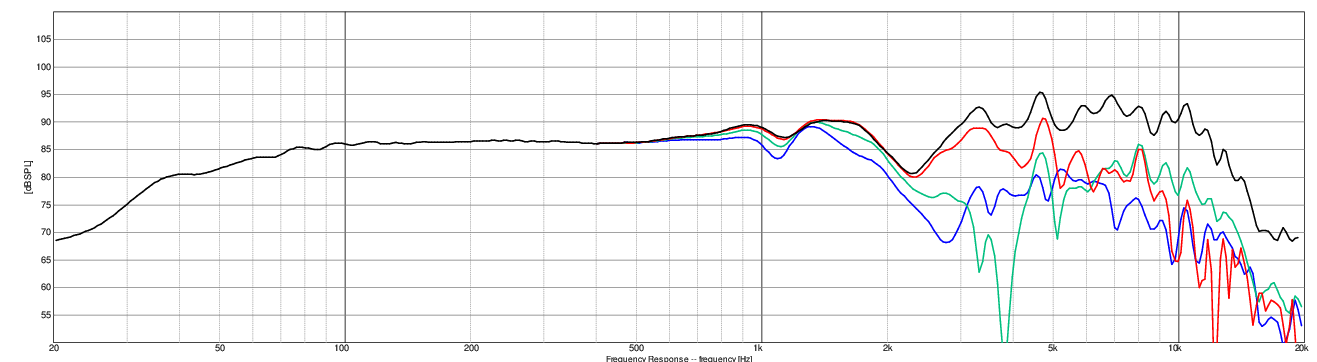

Dayton Audio RS270-8 frequency chart

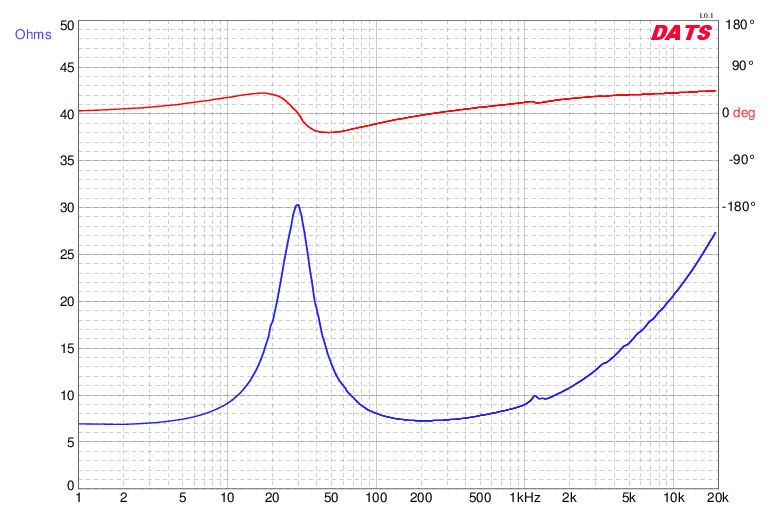

Dayton Audio RS270-8 impedance curve

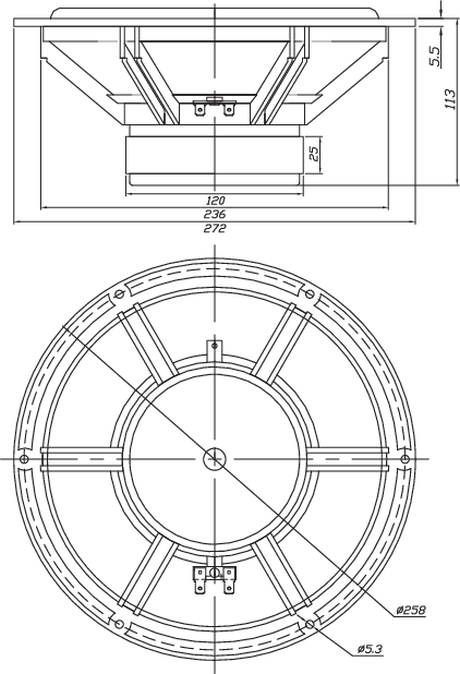

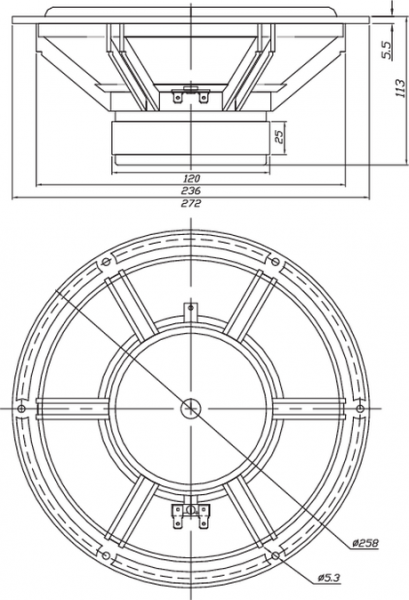

Dayton Audio RS270-8 dimensions

€169.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: da-rs270-8
Description Evaluations 0
Description
RS270-8 10" Reference Woofer 8 Ohm   Dayton Audio Reference Series RS270-8 10"... more
Close menu
Product information "Dayton Audio RS270-8"

RS270-8 10" Reference Woofer 8 Ohm



Dayton Audio Reference Series RS270-8 10" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Product Highlights

  • One of the lowest distortion, highest resolution driver series available
  • Low-distortion high-excursion motor system with two short-circuit paths
  • Compliant suspension and rigid black anodized aluminum cone for strong bass performance
  • Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug



Specifications

  • Power Handling (RMS) 100 watts
  • Power Handling (max) 200 watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88.7 dB
  • Frequency Response 27 - 2,040 Hz
  • Voice Coil Diameter 50 mm
  • DC Resistance (Re) 6.8 ohms
  • Voice Coil Inductance (Le) 0.93 mH @ 1 kHz
  • Resonant Frequency (Fs) 29.6 Hz
  • Mechanical Q (Qms) 2.08
  • Electromagnetic Q (Qes) 0.61
  • Total Q (Qts) 0.47
  • Diaphragm Mass Inc. Airload (Mms) 50.5g
  • Mechanical Compliance of Suspension (Cms) 0.57 mm/N
  • Surface Area of Cone (Sd) 346.4 cm²
  • Volume of Displacement (Vd) 228.6 cm³
  • BL Product (BL) 10.3 Tm
  • Compliance Equivalent Volume (Vas) 96.5 liters
  • Maximum Linear Excursion (Xmax) 6.6 mm
  • Overall Outside Diameter 272 mm
  • Overall Depth 113 mm
  • Baffle Cutout Diameter 236 mm
