SB Acoustics SB29NRX75-6

SB Acoustics
Preview: SB Acoustics SB29NRX75-6 Preview: SB Acoustics SB29NRX75-6 charts Preview: SB Acoustics SB29NRX75-6 parameter Preview: SB Acoustics SB29NRX75-6 dimensions

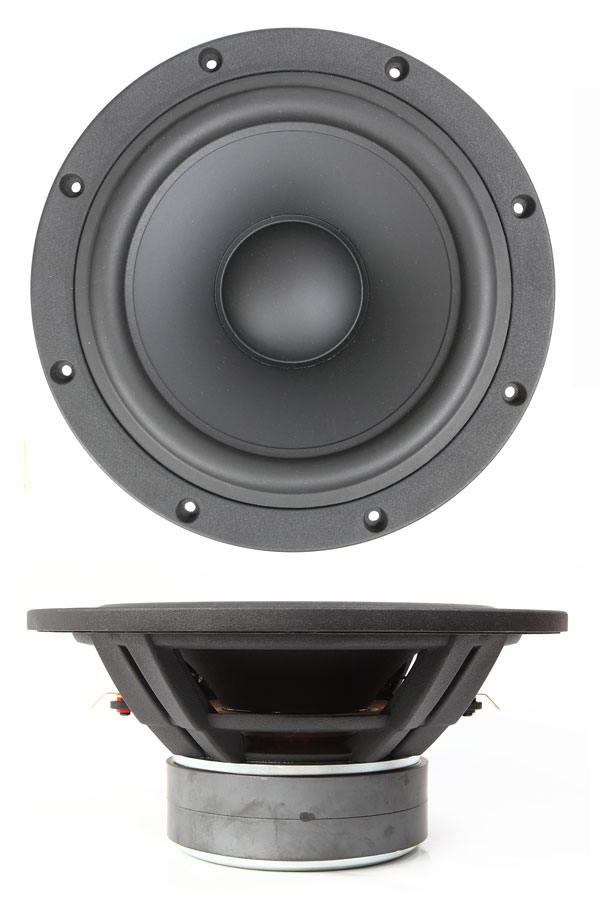

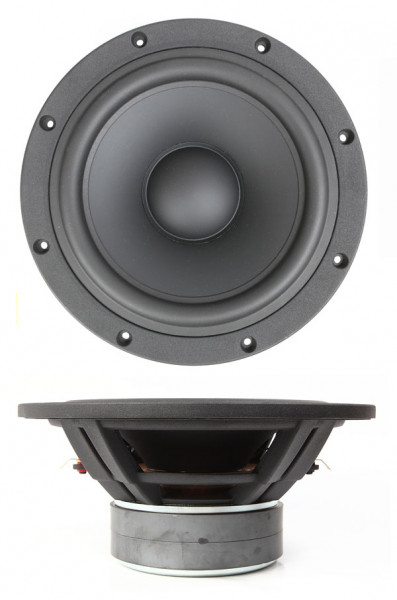

SB Acoustics SB29NRX75-6

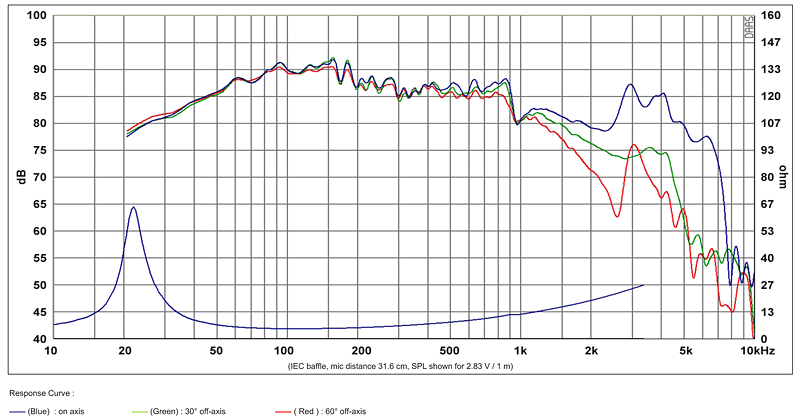

SB Acoustics SB29NRX75-6 charts

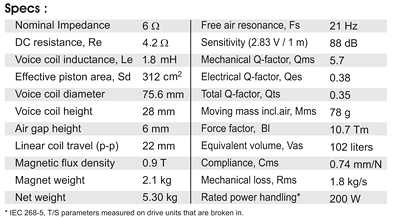

SB Acoustics SB29NRX75-6 parameter

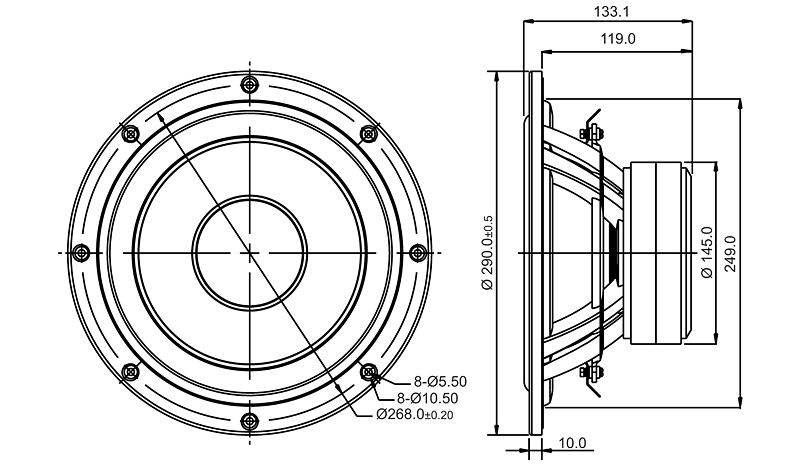

SB Acoustics SB29NRX75-6 dimensions

€200.55 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382304
Description Evaluations 0
Description
SB Acoustics SB29NRX75-6 10" Woofer Hard paper cone for improved piston operation (made... more
Close menu
Product information "SB Acoustics SB29NRX75-6"

SB Acoustics SB29NRX75-6 10" Woofer

  • Hard paper cone for improved piston operation (made in-house)
  • Vented pole piece for minimum compression
  • Vented cast aluminum chassis for optimum strength and low compression
  • 3 copper voice coil for improved power handling
  • Long life silver lead wires
  • Low damping rubber surround for improved dynamic linearity
  • Non-conducting fiber glass voice coil former for minimum damping



Specifications

  • power handling (continuous/programme) = 200 W
  • resonance frequency fs = 21 Hz
  • impedance R = 6 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 4,2 Ohm
  • force factor BL = 10,7 N/A
  • voice coil inductance L = 1,8 mH
  • effective piston radiating area Sd = 312 cm2
  • effective mechanical mass incl. air load mms = 78 g
  • equivalent volume of compliance Vas = 102 l
  • total Q factor Qts = 0,35 (Qms=5,7, Qes=0,38)
  • voice coil diameter = 75,6 mm
  • mounting diameter d = 246,5 mm
  • overall diameter d = 290 mm
  • mounting depth (not countersunk) t = 119 mm
