SB Acoustics SW26DAC76-3-DV

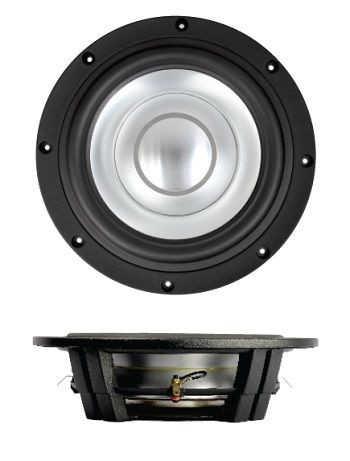

SB-Acoustics SW26DAC76-3-DV 10" Woofer

• Dual rigid aluminum cone structure
• Cast aluminium chassis for optimum strength
• Low damping medium hardness rubber surround for improved dynamic linearity and mechanical stability
• Easily adjustable moving mass

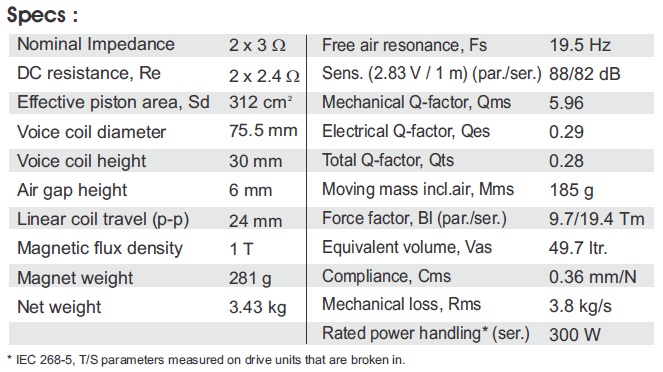

Specifications

• power handling (continuous/programme) = 200 W
• resonance frequency fs = 19.5 Hz
• impedance R = 2x3 Ohm

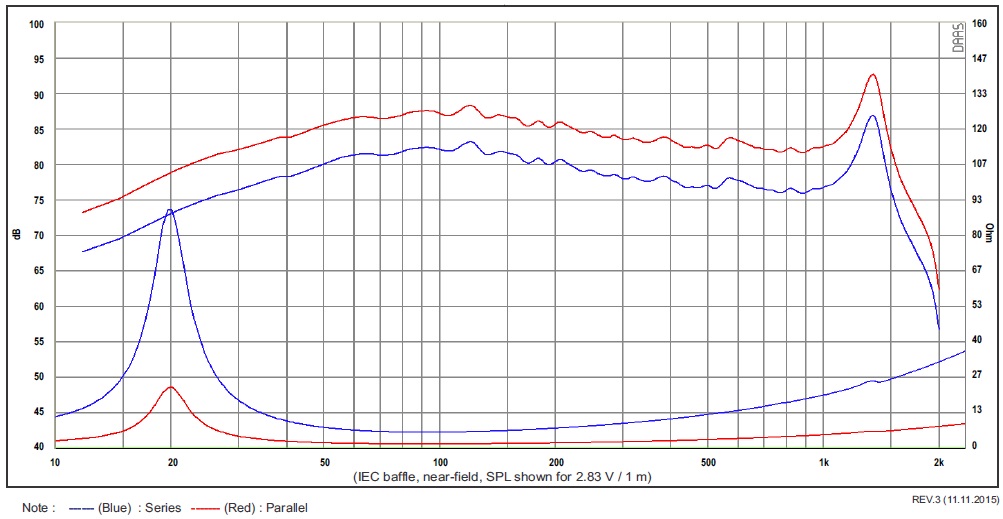

• sound pressure level SPL = 88/82 dB (2,83V; 1m)(par./ser.)
• DC resistance Re = 2x2.4 Ohm
• force factor BL = 9.7/19.4 N/A (par./ser.)
• effective piston radiating area Sd = 312 cm²
• effective mechanical mass incl. air load mms = 185 g
• equivalent volume of compliance Vas = 49.7 l
• total Q factor Qts = 0.28 (Qms=5.96, Qes=0.29)
• voice coil diameter = 75,5 mm

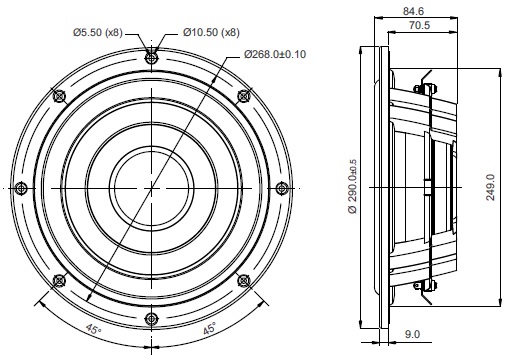

• mounting diameter d = 249 mm
• overall diameter d = 290 mm
• mounting depth (not countersunk) t = 70,5 mm
