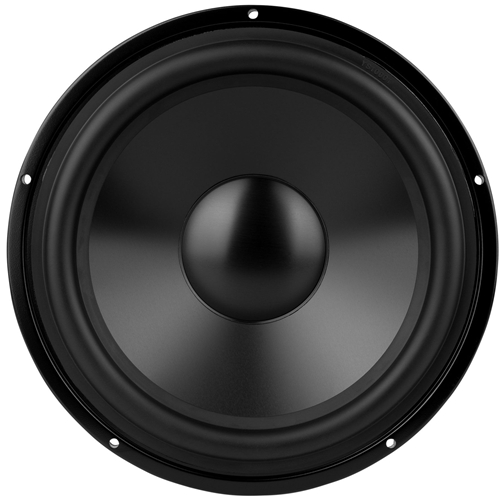

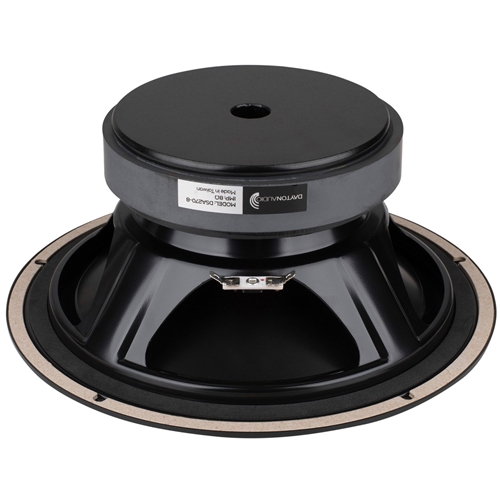

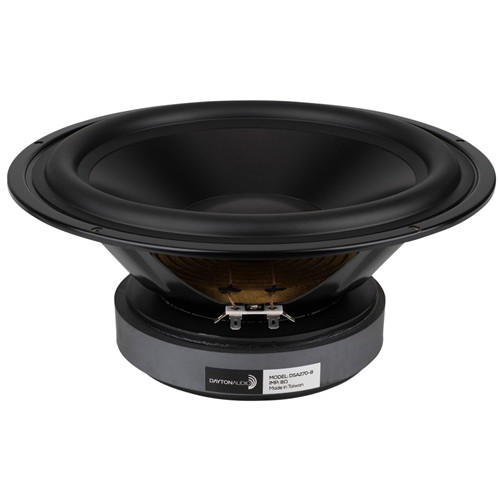

DSA270-8 10" Designer Series Aluminum Cone Woofer 8 Ohm
The Dayton Audio Designer Series DSA270-8 10" can operate at its full rated power down to 27 Hz without exceeding Xmax!
Product Highlights
- Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
- Low distortion motor system with copper shorting ring
- Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
- Optimized to yield the smallest possible box volume and lowest 3 dB down point
- Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
- Vented pole piece for minimized power compression and maximized reliability
- Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
Specifications
- Power Handling (RMS) 100 watts
- Power Handling (max) 200 watts

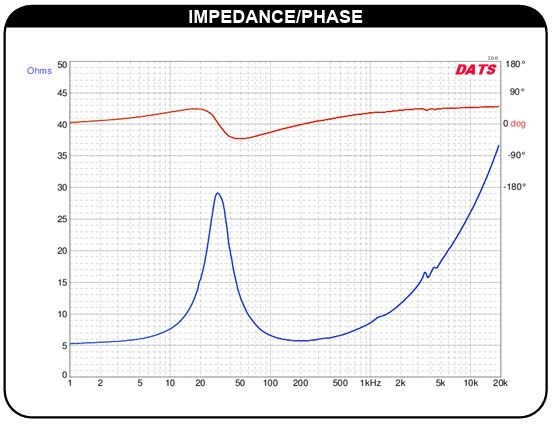

- Impedance (Z) 8 ohms
- Sensitivity (SPL at 1m / 2.83V) 90.4 dB

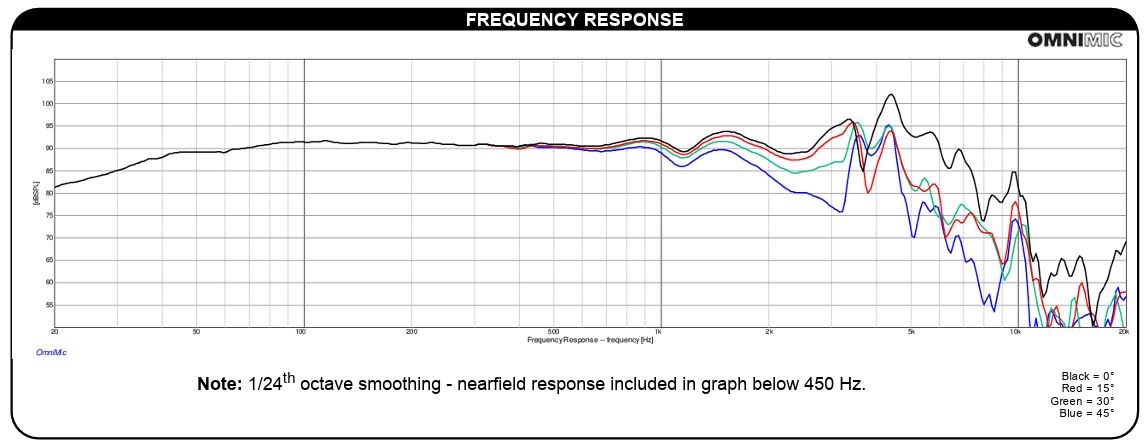

- Frequency Response 29 - 6,000 Hz
- Voice Coil Diameter 38.5 mm
- Magnet Weight 62 oz.
- DC Resistance (Re) 5.4 ohms
- Voice Coil Inductance (Le) 1.07 mH @ 1 kHz
- Resonant Frequency (Fs) 29.6 Hz
- Mechanical Q (Qms) 2.09
- Electromagnetic Q (Qes) 0.47
- Total Q (Qts) 0.39
- Diaphragm Mass Inc. Airload (Mms) 59.6g
- Mechanical Compliance of Suspension (Cms) 0.49 mm/N
- Surface Area of Cone (Sd) 353 cm²
- Volume of Displacement (Vd) 194.1 cm³
- BL Product (BL) 11.2 Tm
- Compliance Equivalent Volume (Vas) 88.1 liters
- Maximum Linear Excursion (Xmax) 5.5 mm

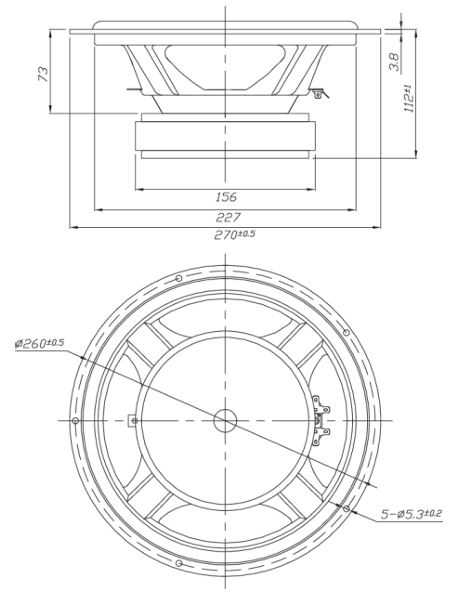

- Overall Outside Diameter 270 mm
- Overall Depth 112 mm
- Baffle Cutout Diameter 227 mm
