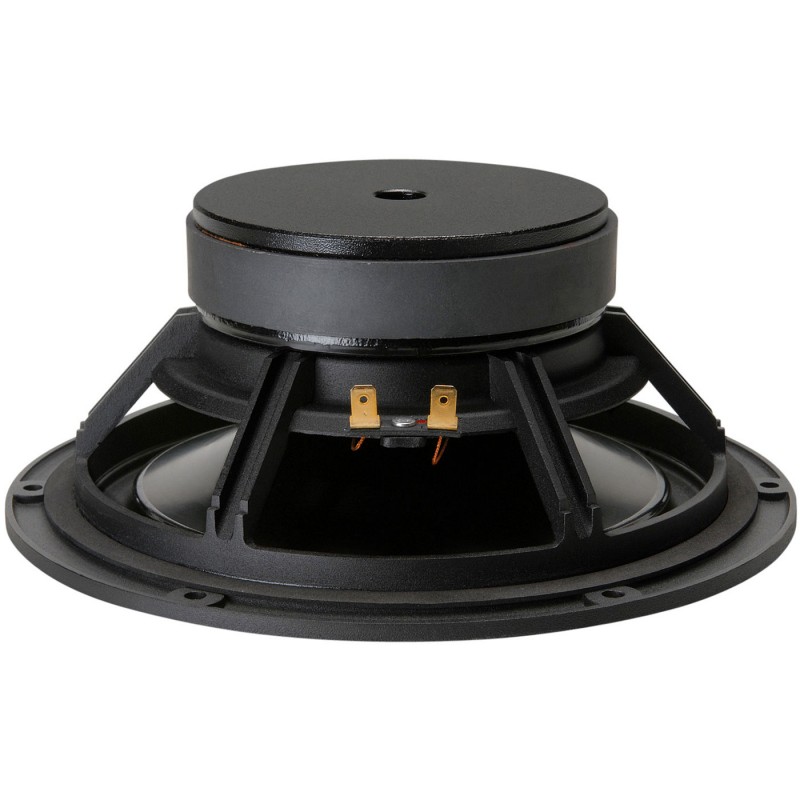

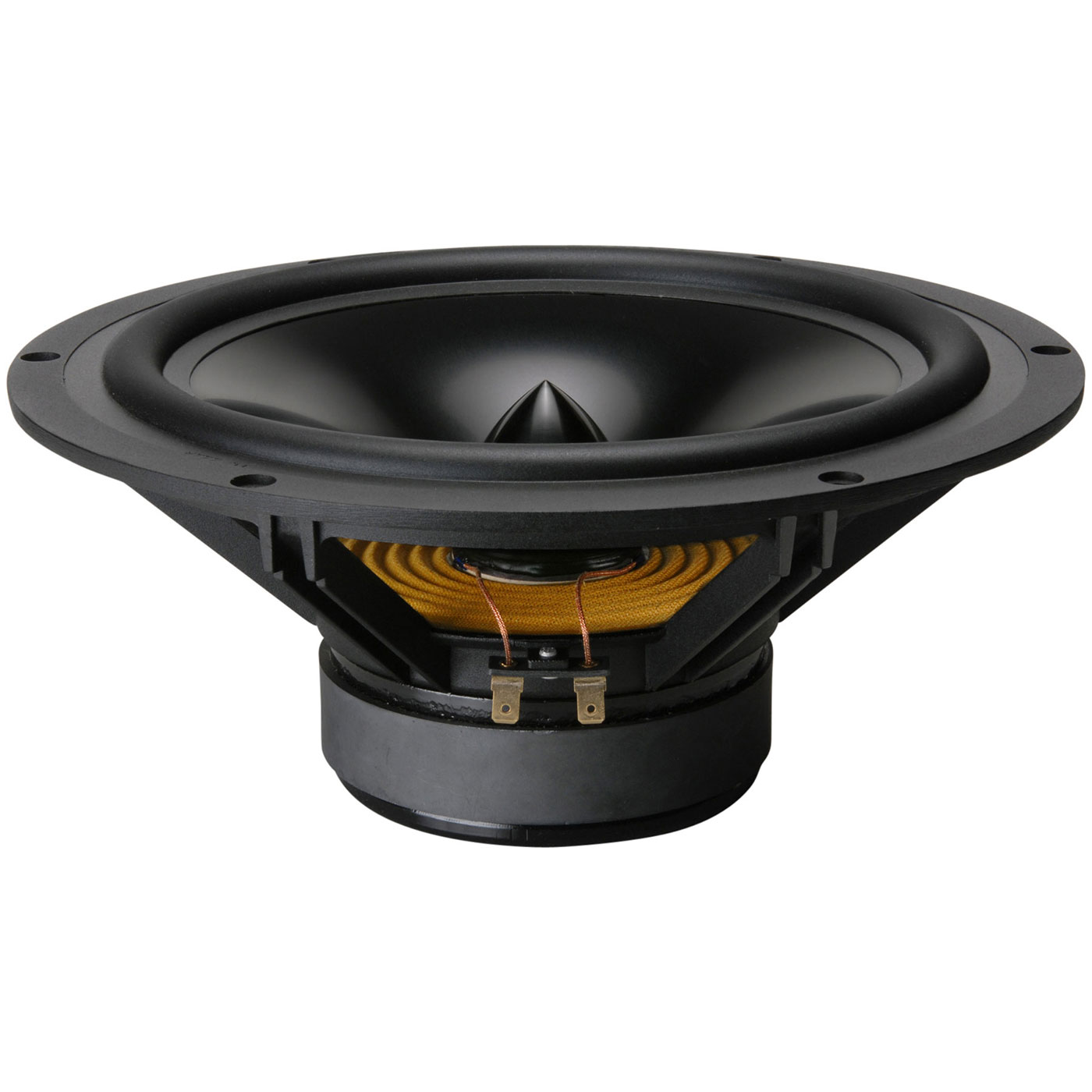

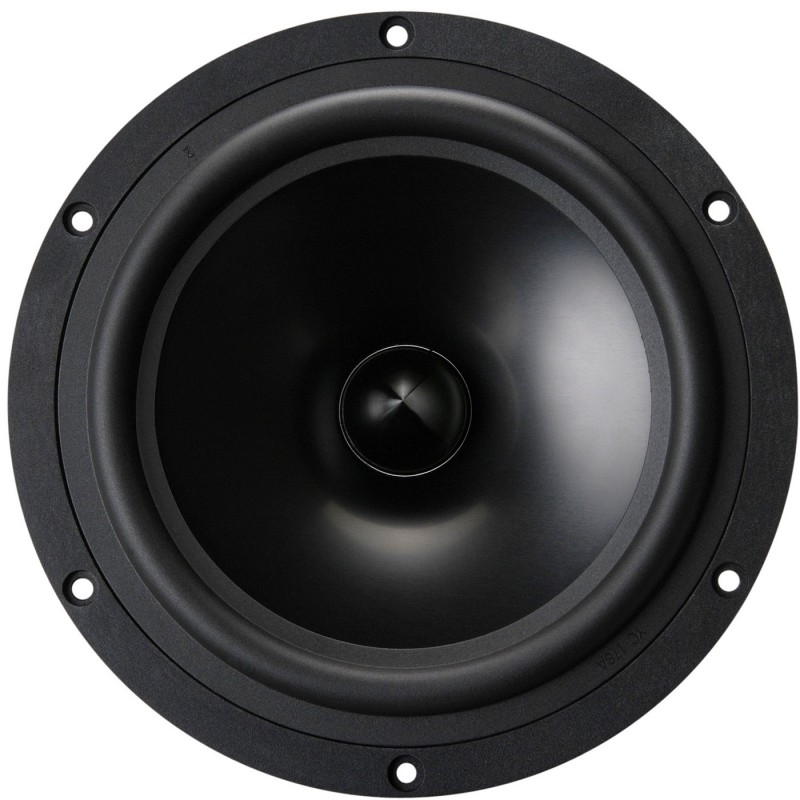

RS270-4 10" Reference Woofer 4 Ohm



Dayton Audio Reference Series RS270-8 10" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.

Product Highlights

  • One of the lowest distortion, highest resolution driver series available
  • Low-distortion high-excursion motor system with two short-circuit paths
  • Compliant suspension and rigid black anodized aluminum cone for strong bass performance
  • Heavy-duty 6-hole cast frame, low-loss rubber surround, and solid aluminum phase plug



Specifications

  • Power Handling (RMS) 100 watts
  • Power Handling (max) 200 watts
  • Impedance (Z) 4 ohms
  • Sensitivity (SPL at 1m / 2.83V) 89.2 dB
  • Frequency Response 21 - 2,000 Hz
  • Voice Coil Diameter 2"
  • DC Resistance (Re) 3.9 ohms
  • Voice Coil Inductance (Le) 0.57 mH
  • Resonant Frequency (Fs) 20.9 Hz
  • Mechanical Q (Qms) 1.33
  • Electromagnetic Q (Qes) 0.35
  • Total Q (Qts) 0.27
  • Diaphragm Mass Inc. Airload (Mms) 98.6g
  • Mechanical Compliance of Suspension (Cms) 0.59 mm/N
  • Surface Area of Cone (Sd) 346.4 cm²
  • Volume of Displacement (Vd) 207.8 cm³
  • BL Product (BL) 12.1 Tm
  • Compliance Equivalent Volume (Vas) 98.6 liters
  • Maximum Linear Excursion (Xmax) 6 mm
  • Overall Outside Diameter 272 mm
  • Overall Depth 113 mm
  • Baffle Cutout Diameter 236 mm
