Seas CA26RE4X H1316-08

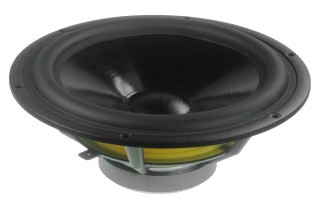

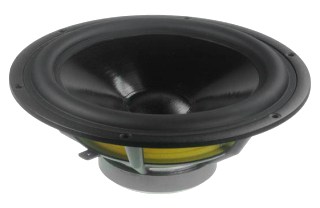

Seas CA26RE4X H1316-08 Paper Cone Woofer

Classical manually coated paper cone and matching natural rubber surround produce a smooth response and reduce potential resonance problems.

Four layer voice coil provides a well behaved roll off characteristic.

Large magnet system gives good sensitivity and transient response.

Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.

Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

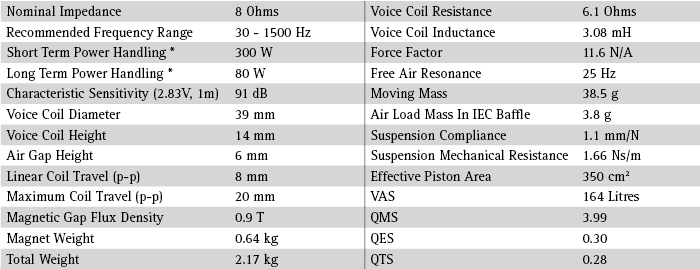

CA26RE4X Specifications

• power handling (continuous/programme) = 80/300 W

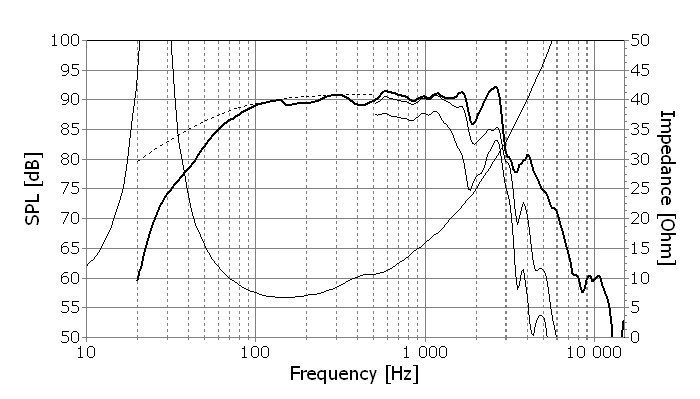

• frequency range = 30-1500 Hz
• resonance frequency fs = 25 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (2,83V; 1m)
• DC resistance Re = 6,1 Ohm
• force factor BL = 11,6 N/A
• voice coil inductance L = 3,08 mH
• effective piston radiating area Sd = 350 cm²
• effective mechanical mass incl. air load mms = 38,5 g
• equivalent volume of compliance Vas = 164 l
• total Q factor Qts = 0,28 (Qms=3,99, Qes=0,3)
• voice coil diameter = 39 mm
• maximum peak linear excursion vibration x_lin = +/- 7 mm

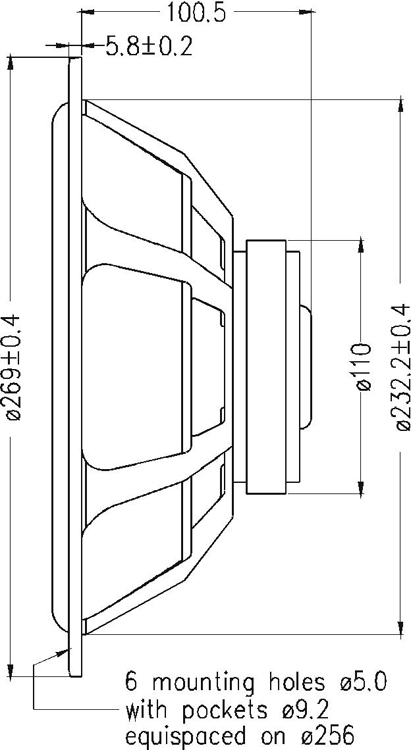

• mounting diameter d = 232,2 mm
• overall diameter d = 269 mm
• mounting depth (not countersunk) t = 100,5 mm
