Classical handcoated paper cone and matching natural rubber surround produce a well behaved roll off characteristic and reduce potential resonance problems.
2” high temperature voice coil with black anodized aluminium coil former gives high power handling and reduced power compression.
Large magnet system gives good sensitivity and transient response. Bumped backplate in the magnet system allows maximum utilization of the long voice coil without mechanical limitation.
Extremely stiff and stable injection moulded metal basket keeps the critical components in perfect alignment.
Large windows in the basket both above and below the spider reduce sound reflexion, air flow noise and cavity resonance to a minimum.

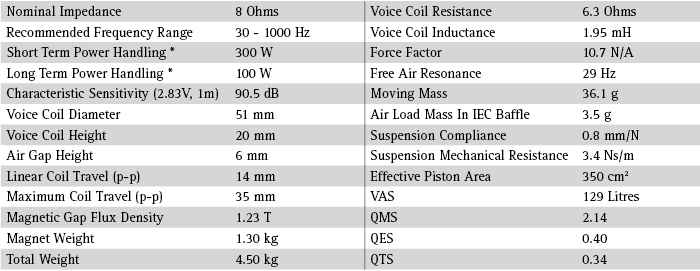

CA26RFX Specifications
power handling (continuous/programme) = 100/300 W
frequency range = 30-1000 Hz
resonance frequency fs = 29 Hz
impedance R = 8 Ohm
sound pressure level SPL = 90,5 dB (2,83V; 1m)
DC resistance Re = 6,3 Ohm
force factor BL = 10,7 N/A
voice coil inductance L = 1,95 mH
effective piston radiating area Sd = 350 cm2
effective mechanical mass incl. air load mms = 36,1 g
equivalent volume of compliance Vas = 129 l
total Q factor Qts = 0,34 (Qms=2,14, Qes=0,4)
voice coil diameter = 51 mm
maximum peak linear excursion vibration xlin = +/- 10 mm
