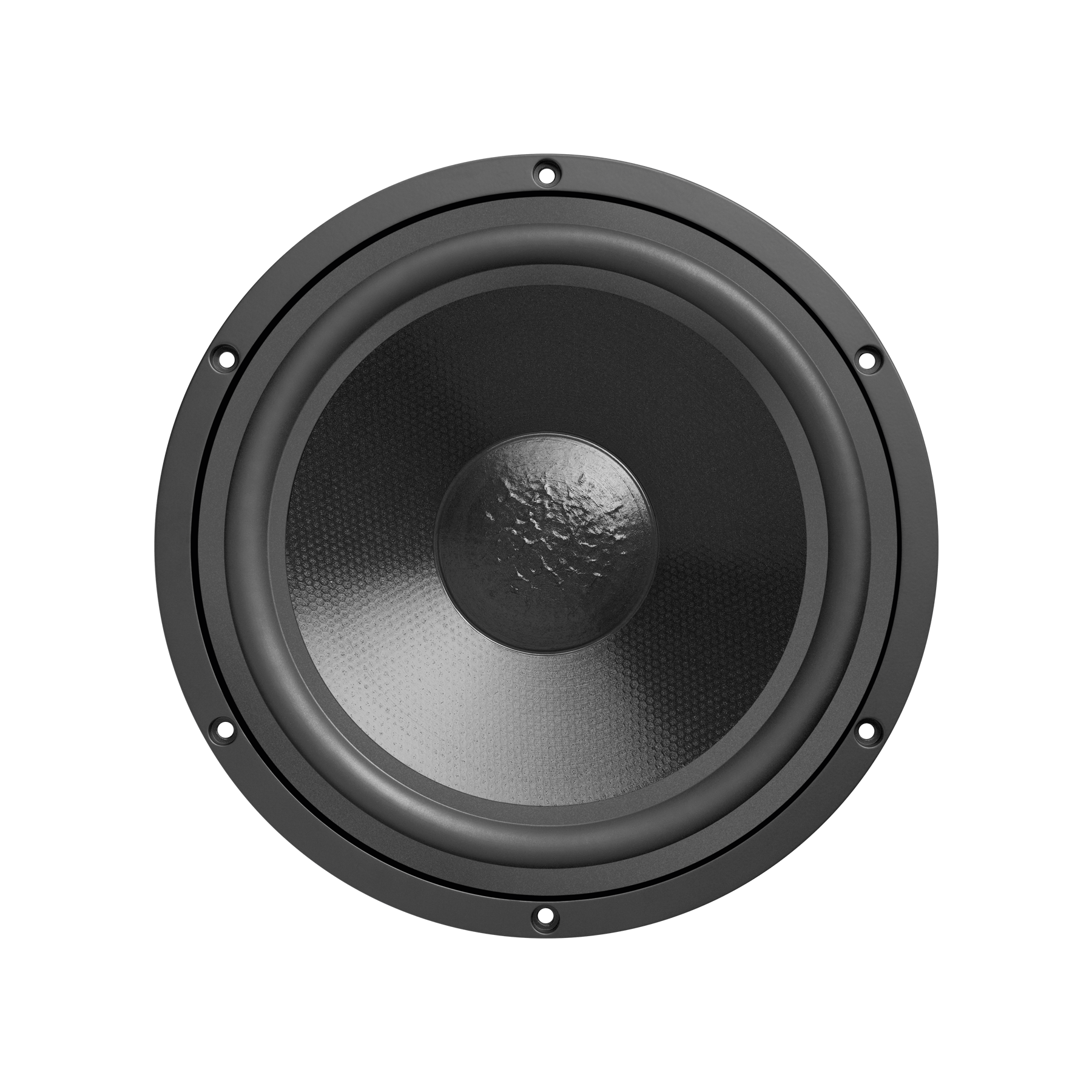

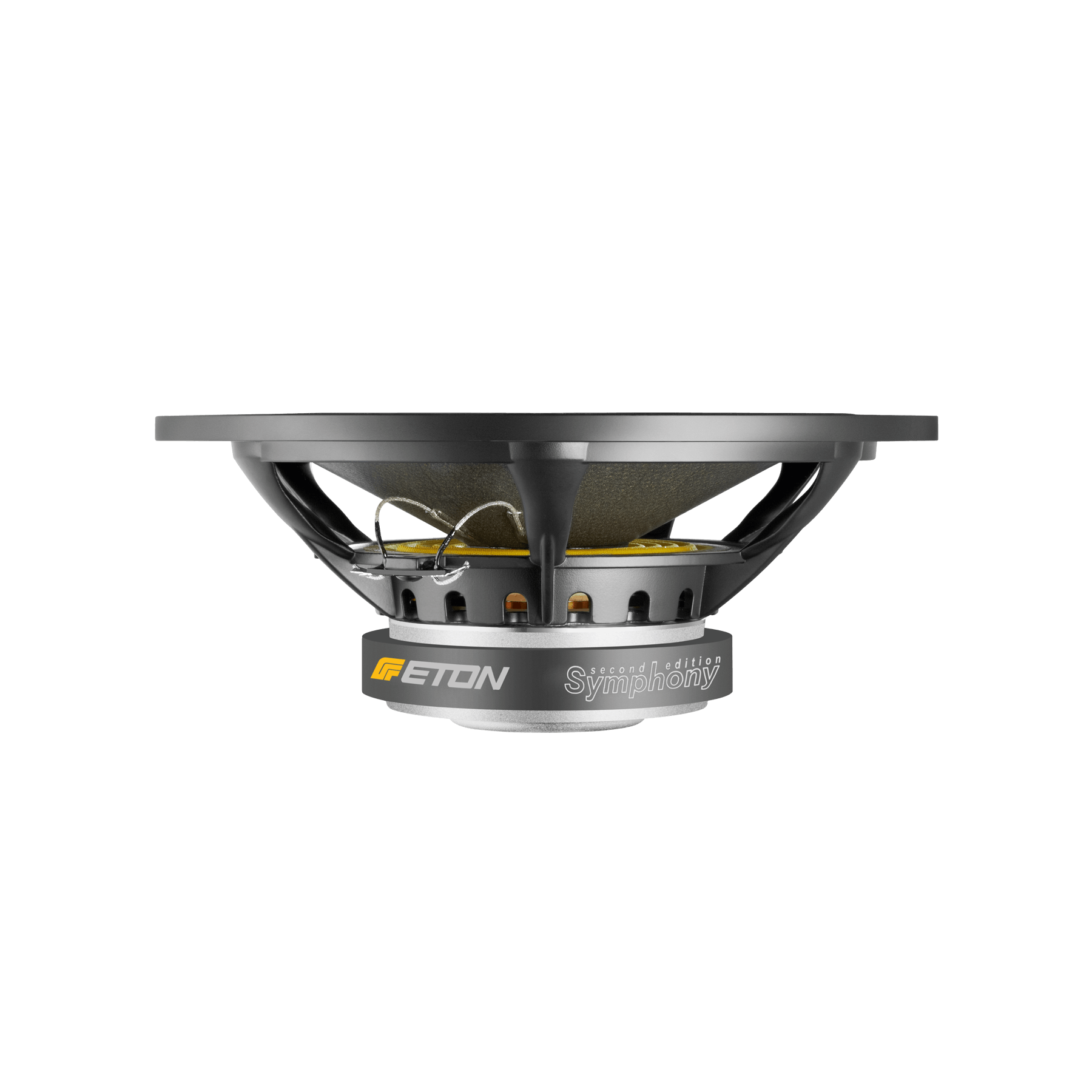

11“ Bass driver for multiple usage, 3-layer Hexacone Sandwich cone, equipped with a heavy bass-base,reproduction up to the lower mid-range, uncolored sound performance.
Specifications
power handling (continuous/programme) = 150 W
frequency range = 30-1000 Hz
resonance frequency fs = 22 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 5,2 Ohm
force factor BL = 11,6 N/A
voice coil inductance L = 1,15 mH
effective piston radiating area Sd = 366 cm2
effective mechanical mass incl. air load mms = 61,0 g
equivalent volume of compliance Vas =134 l
total Q factor Qts = 0,31 (Qms=9,94, Qes=0,32)
voice coil diameter = 50 mm
maximum peak linear excursion vibration xlin = +/- 5,0 mm
