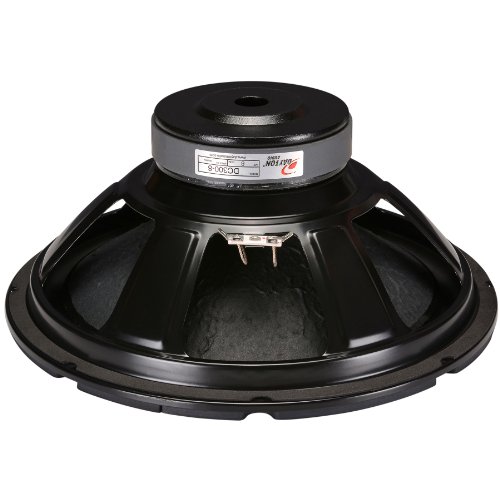

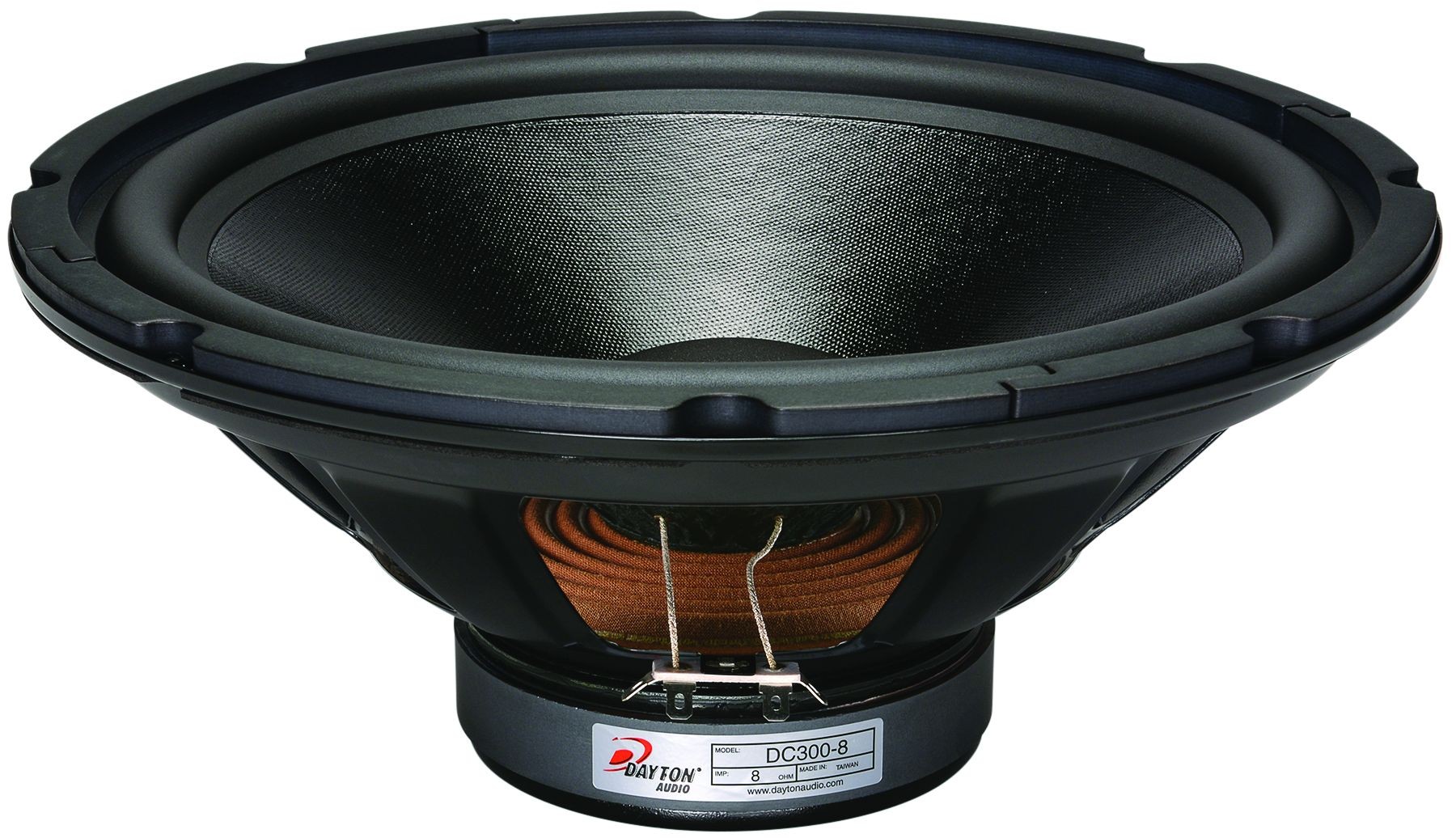

Dayton Audio Classic Series woofers are excellent for use as replacement speakers or for new loudspeaker system design and construction. The DC300-8 12" woofer has developed quite a reputation for having the best bang-for-the-buck performance and value available anywhere. Smooth frequency response and extended bass performance make this driver ideal for use in large format two-way and classic three-way loudspeaker designs. A Qts of 0.43 allows the DC300-8 to work well in both sealed and ported speaker enclosures.
A non-pressed treated paper cone allows for smooth frequency response, while the high temperature aluminum voice coil and vented pole piece combine to increase power handling without compression. Longevity is ensured with the use of a rubber surround, treated cloth dust cap, and an extended bump plate.
Specifications
power handling (continuous/programme) = 80 W

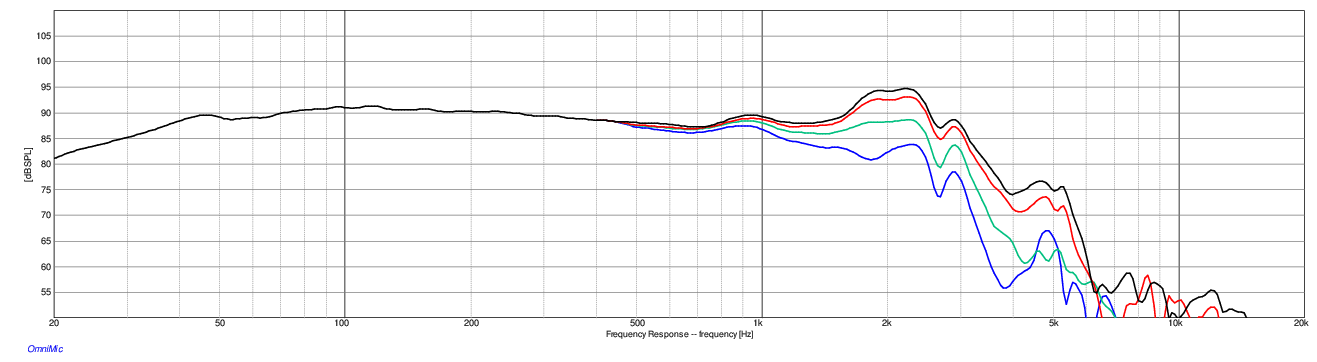

frequency range = 28-2500 Hz
resonance frequency fs = 26,2 Hz

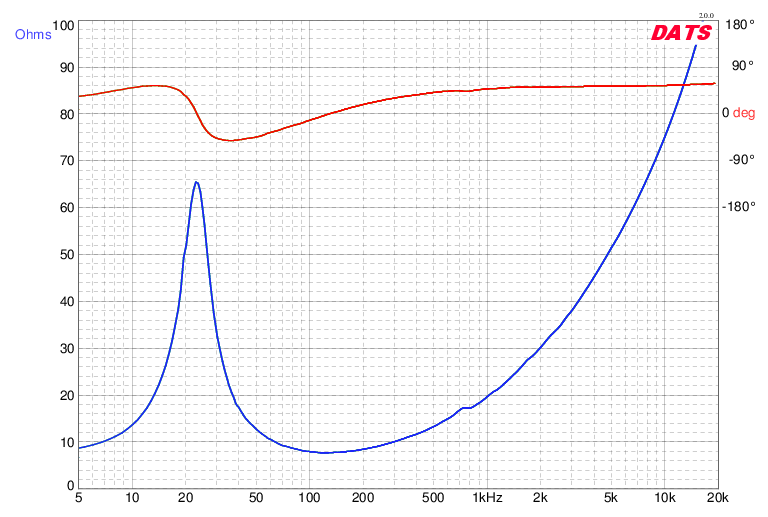

impedance R = 8 Ohm
sound pressure level SPL = 92,0 dB (2,83V; 1m)
DC resistance Re = 6,4 Ohm
force factor BL = 14,67 N/A
voice coil inductance L = 2,06 mH
effective piston radiating area Sd = 498,8 cm2
effective mechanical mass incl. air load mms = 96,59 g
equivalent volume of compliance Vas = 133,1 l
total Q factor Qts = 0,43 (Qms=3,98, Qes=0,48)
voice coil diameter = 51 mm
maximum peak linear excursion vibration xlin = +/- 4,3 mm
