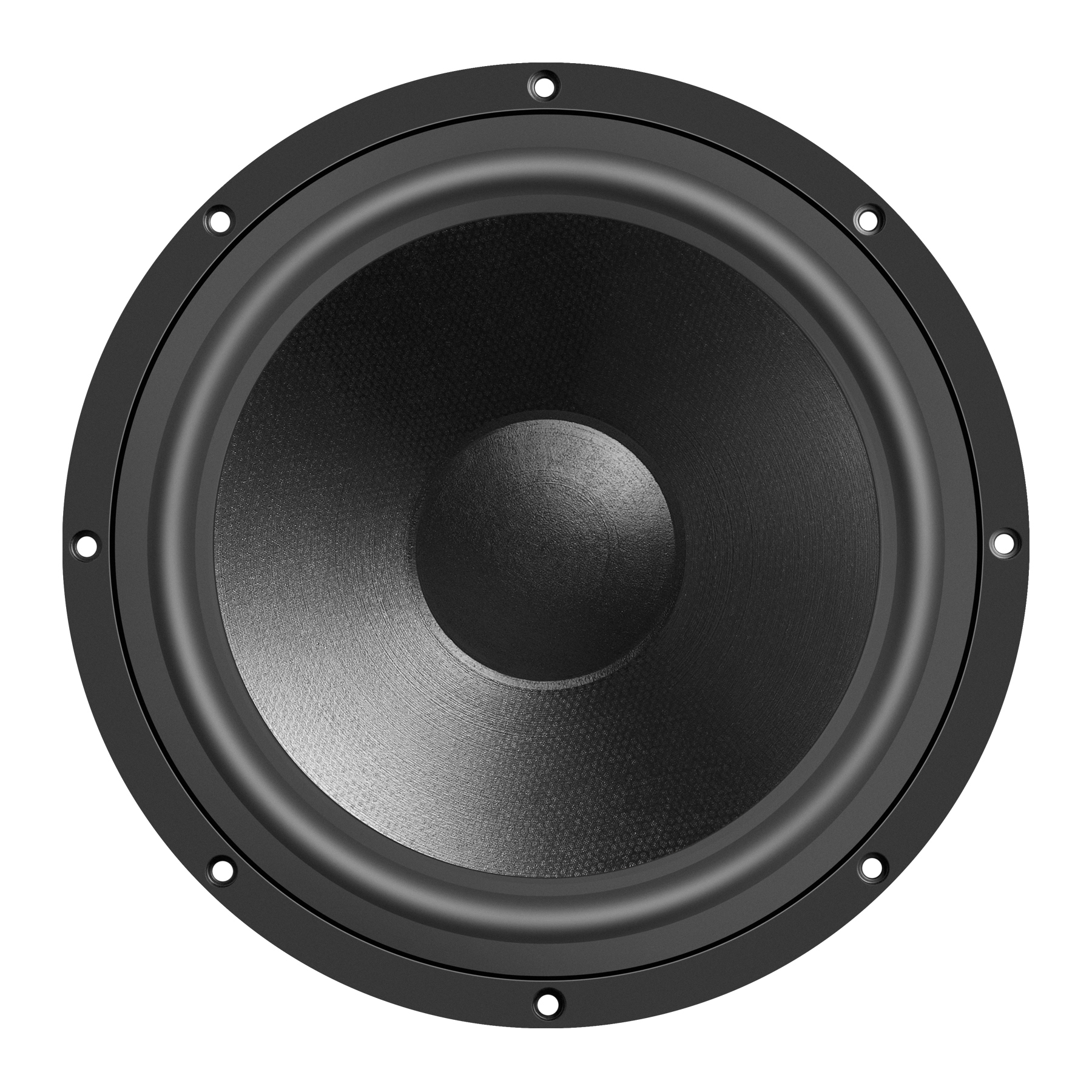

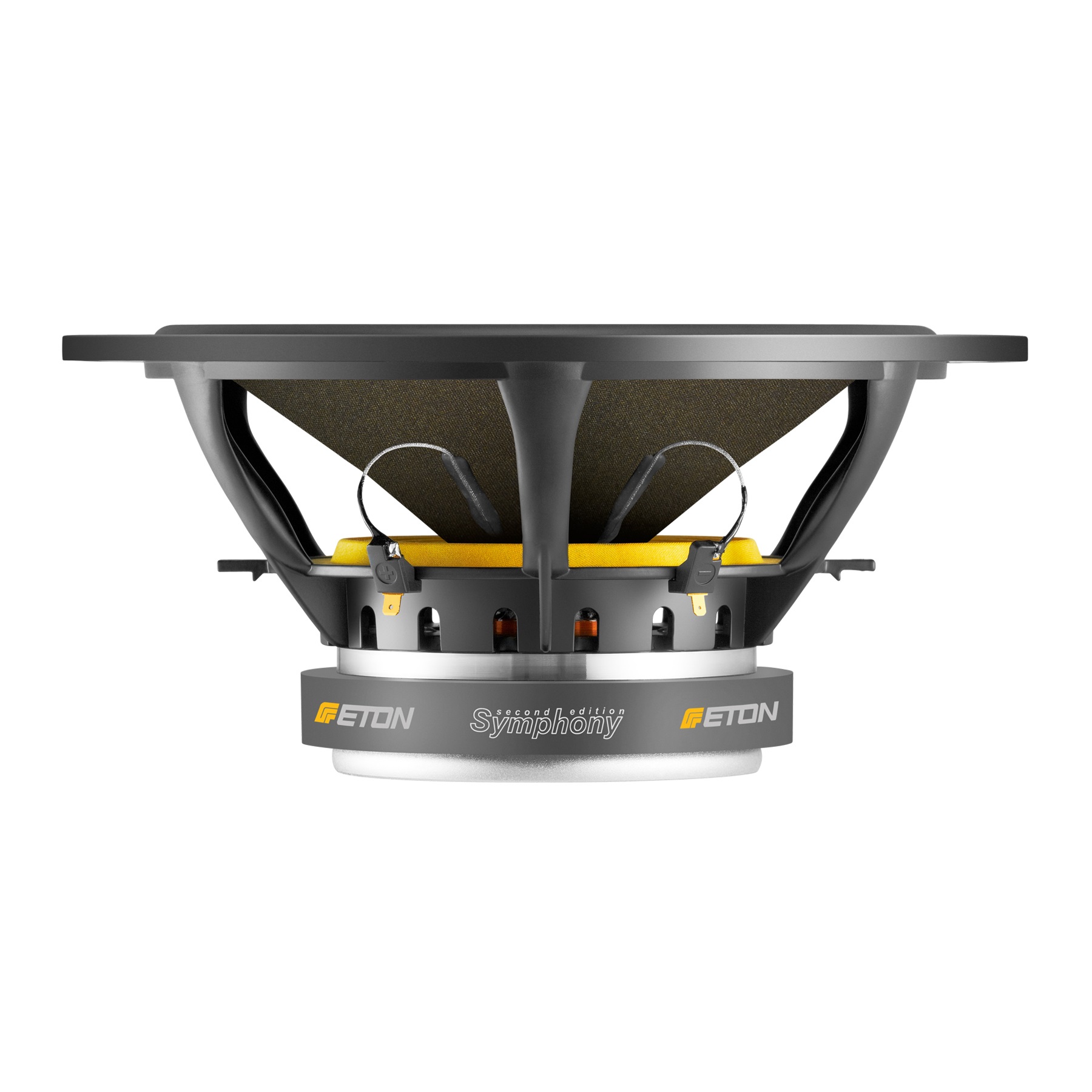

Eton 12-212/C8/62 Hex

12“ Bass driver primary for sub and 3-way application,3-layer Hexacone Sandwich cone, equipped with an excellent deep-bass repro-duction, fast and high dynamical bass reproduction,high power handling.

Specifications

• power handling (continuous/programme) = 200 W
• frequency range = 25-500 Hz
• resonance frequency fs = 23 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 92 dB (2,83V; 1m)
• DC resistance Re = 6,2 Ohm
• force factor BL = 15,7 N/A
• voice coil inductance L = 1,57 mH
• effective piston radiating area Sd = 515 cm²
• effective mechanical mass incl. air load mms = 92,7 g
• equivalent volume of compliance Vas = 176 l
• total Q factor Qts = 0,31 (Qms=7,15, Qes=0,32)
• voice coil diameter = 62 mm
• maximum peak linear excursion vibration x_lin = +/- 8,5 mm
• mounting diameter d = 282 mm
• overall diameter d = 330,5 mm
• mounting depth (not countersunk) t = 141,5 mm
