Dayton Audio RS75-8

€38.40 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Order number: da-rs75-8

RS75-8 3" Reference Full-Range Driver 8 Ohm Incorporating a low-distortion motor... more

Close menu

Product information "Dayton Audio RS75-8"

Incorporating a low-distortion motor system with a copper ring, a copper cap, and an aluminum phase plug, the RS75-8 can outperform "boutique" drivers that cost several times the price.

Product Highlights

Full-range performance
Low distortion and high resolution
Aluminum frame, aluminum cone, rubber surround
Distortion-reducing copper ring, copper cap, and aluminum phase plug
Subtle yet high-tech look makes a bold cosmetic statement

Specifications

Power Handling (RMS) 15 watts
Power Handling (max) 30 watts

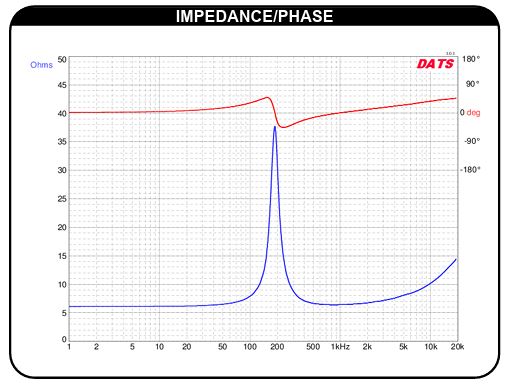

Impedance (Z) 8 ohms
Sensitivity (SPL at 1m / 2.83V) 80.5 dB

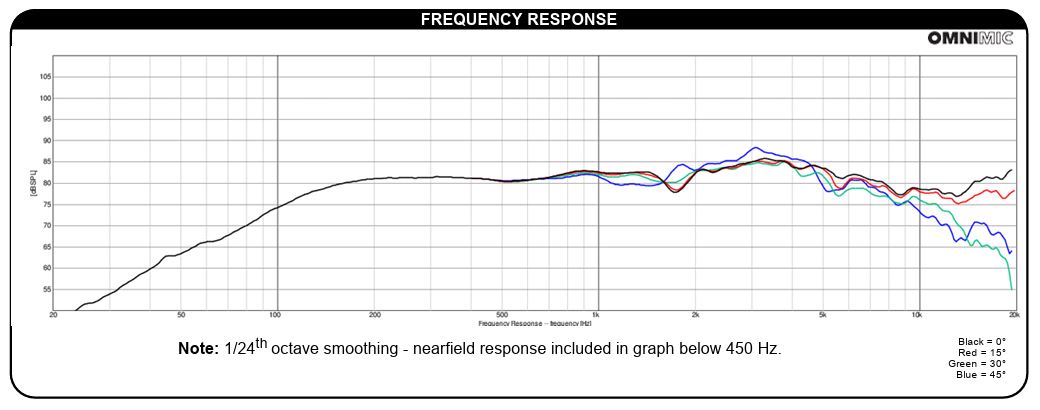

Frequency Response 160 - 20,000 Hz
Voice Coil Diameter 16 mm
DC Resistance (Re) 6,2 ohms
Voice Coil Inductance (Le) 0.32 mH @ 1 kHz
Resonant Frequency (Fs) 185 Hz
Mechanical Q (Qms) 5.12
Electromagnetic Q (Qes) 1.35
Total Q (Qts) 1.07
Diaphragm Mass Inc. Airload (Mms) 1.23g
Mechanical Compliance of Suspension (Cms) 0.60 mm/N
Surface Area of Cone (Sd) 12 cm²
Volume of Displacement (Vd) 1.31 cm³
BL Product (BL) 2.55 Tm
Compliance Equivalent Volume (Vas) 0.11 liters
Maximum Linear Excursion (Xmax) 1.1 mm

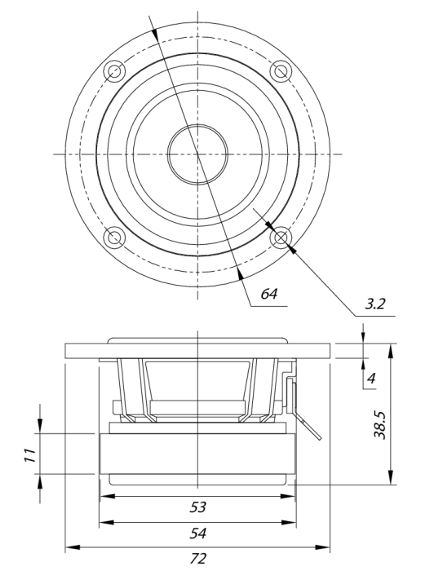

Overall Outside Diameter 72 mm
Overall Depth 38.5 mm
Baffle Cutout Diameter 54 mm
