Visaton TI 100

Visaton TI 100

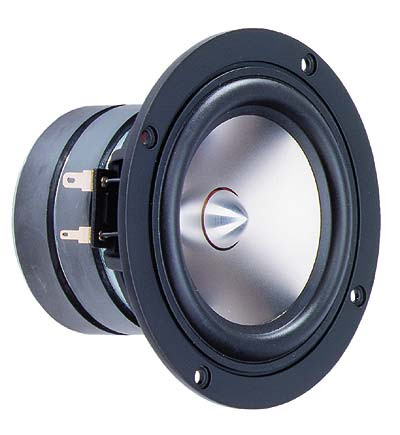

10 cm (4") High-End low-midrange driver featuring a diaphragm cone made of pure titanium. The carefully designed cone combines with the shape and material of the surround and the adhesives to avoid cone resonance. The shape of the basket with its large aperture and rear-ventilated damper coupled with the open voice coil with its phase plug produce the lowest possible mechanical losses and produce a correspondingly high mechanical Qfactor. As a result of the construction using double magnets the TI 100 - 8 Ohm is also magnetically compensated.

The TI 100 - 8 Ohm is ideal as a mid-bass unit in smaller high end shelf speakers or as a mid-range unit in high-end multi-way Speakers.

Specifications

• power handling (continuous/programme) = 40/60 W

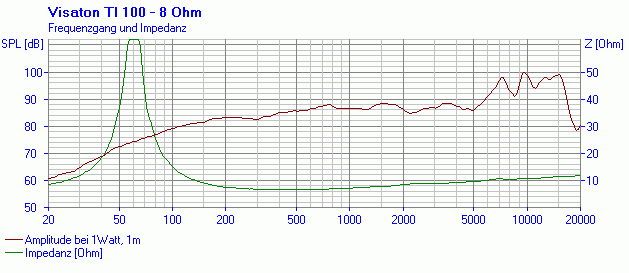

• frequency range = 70-20000 Hz
• resonance frequency fs = 62 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 86 dB (2,83V; 1m)
• DC resistance Re = 6 Ohm
• force factor BL = 4,8 N/A
• voice coil inductance L = 0,7 mH
• effective piston radiating area Sd = 54 cm²
• effective mechanical mass incl. air load mms = 4 g
• equivalent volume of compliance Vas = 6,92 l
• total Q factor Qts = 0,38 (Qms=7,05, Qes=0,4)
• voice coil diameter = 20 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm

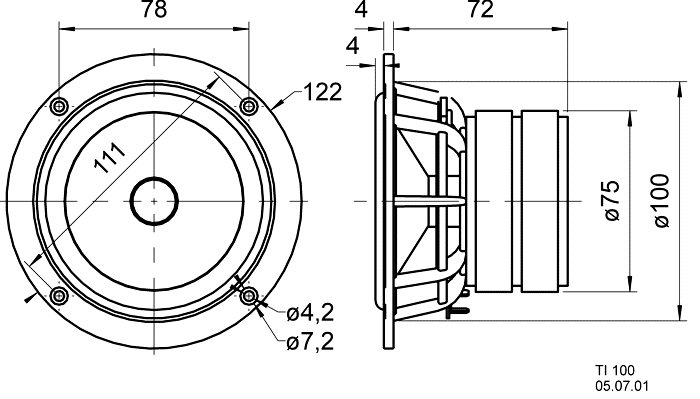

• mounting diameter d = 100 mm
• overall diameter d = 122 mm
• mounting depth (not countersunk) t = 72 mm
