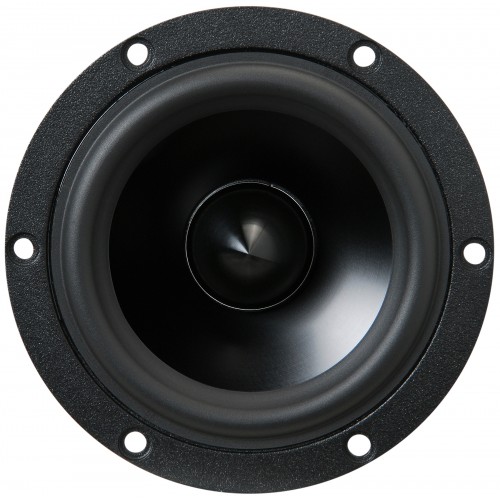

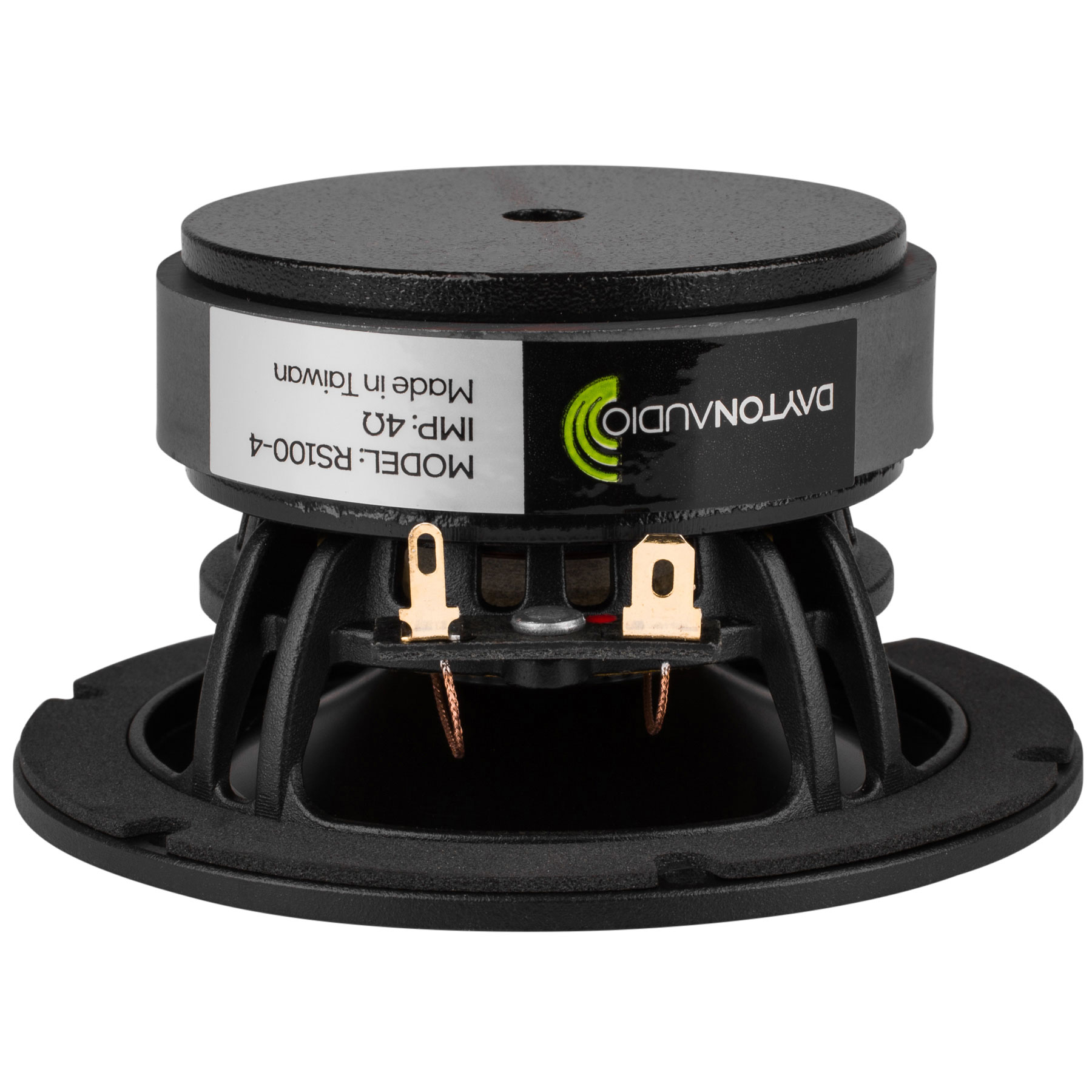

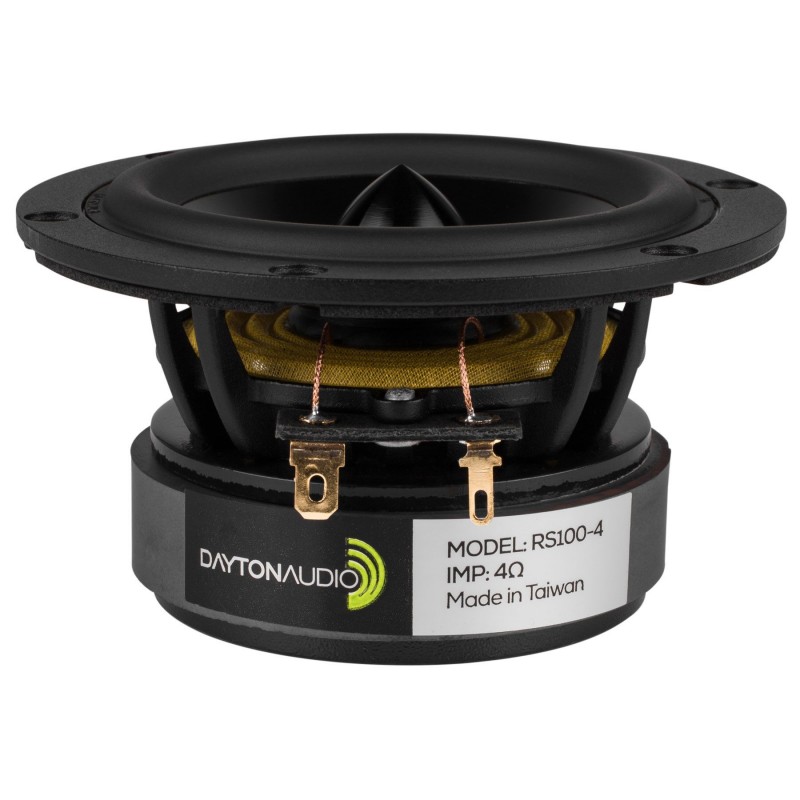

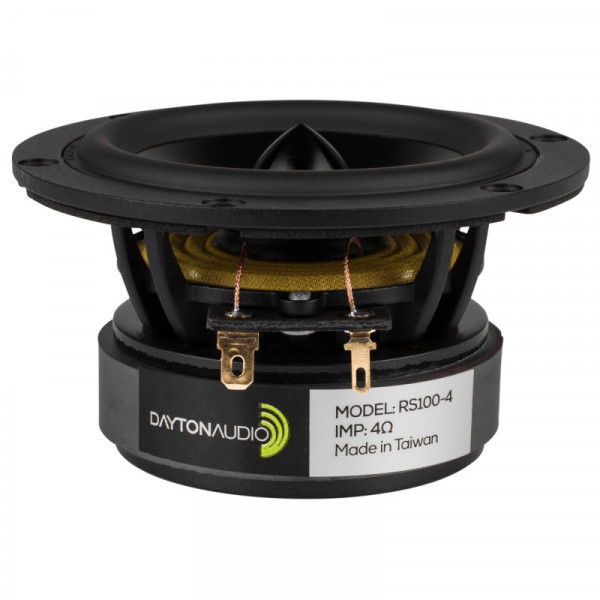

The Dayton Reference Series sets a new standard of value in high-performance loudspeaker drivers. Utilizing a low-distortion motor system with two short-circuit paths and a rigid aluminum cone, the Reference Series can outperform drivers that cost several times the price. Their low-distortion characteristics and high excursion capabilities provide exceptional clarity, detail, and dynamics. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold terminals.
Product Highlights
• Full-range capability • Long-excursion motor and suspension for strong bass performance • Subtle yet high-tech look makes a bold cosmetic statement • Great replacement for the Dayton RS100S-8 4" Reference Shielded Full-Range Driver
Specifications
power handling (continuous/programme) = 30 W

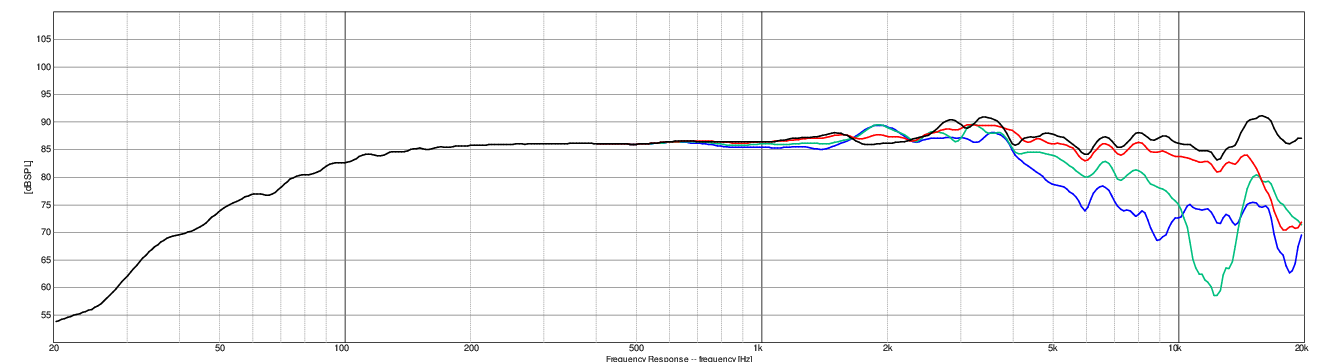

frequency range = 80-20000 Hz
resonance frequency fs = 80,2 Hz

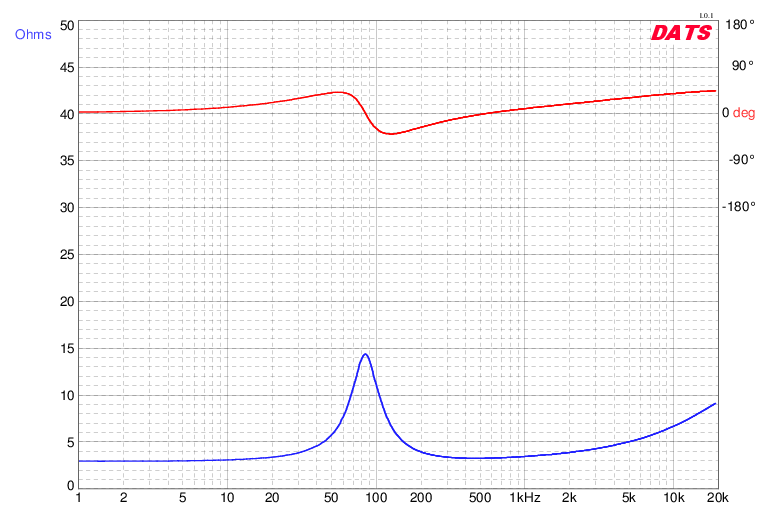

impedance R = 4 Ohm
DC resistance Re = 3 Ohm
force factor BL = 3,22 N/A
voice coil inductance L = 0,67 mH
effective piston radiating area Sd = 37,4 cm2
effective mechanical mass incl. air load mms = 3,9 g
equivalent volume of compliance Vas = 2 l
total Q factor Qts = 0,48 (Qms=3,1, Qes=0,57)
voice coil diameter = 26 mm
maximum peak linear excursion vibration xlin = +/- 4 mm
