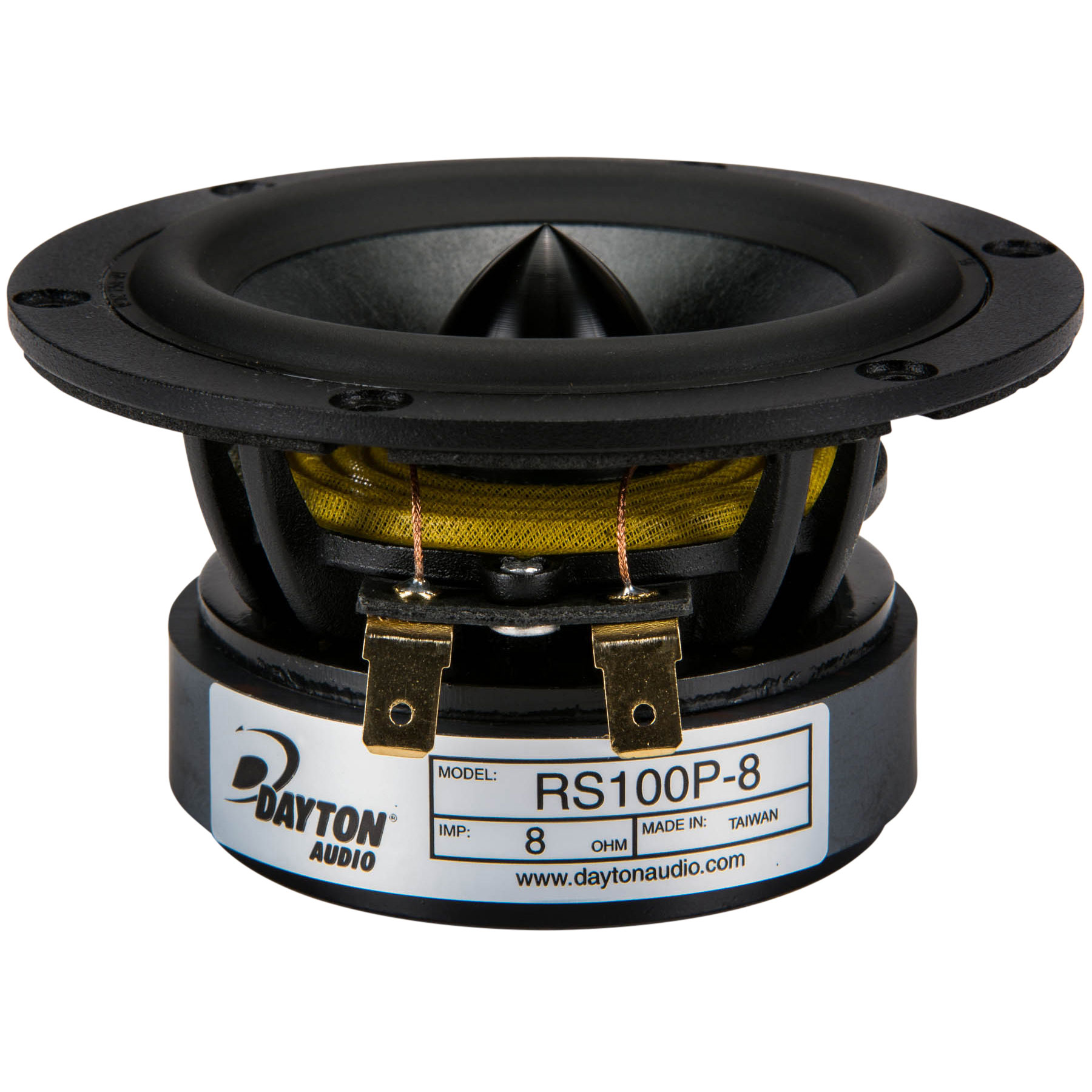

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
Similar cosmetics and design features as original aluminum Dayton Audio Reference Series
Perfect for use a woofer, midwoofer, or dedicated midrange driver
Specifications
power handling (continuous/programme) = 30 W

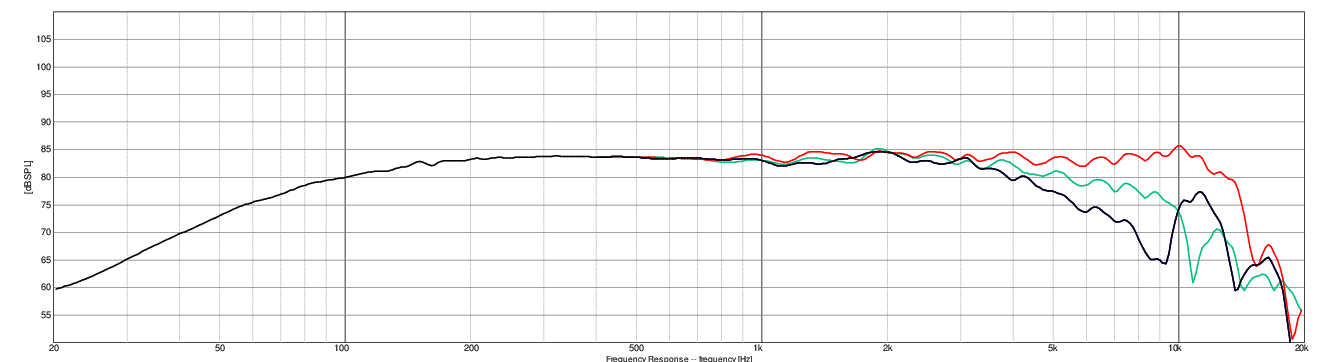

frequency range = 90-12500 Hz
resonance frequency fs = 95,6 Hz

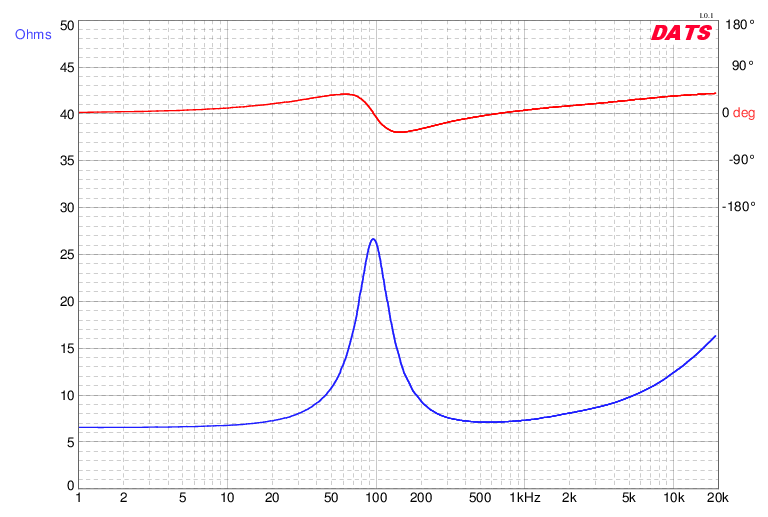

impedance R = 8 Ohm
DC resistance Re = 6,6 Ohm
force factor BL = 3,95 N/A
voice coil inductance L = 0,51 mH
effective piston radiating area Sd = 37,4 cm2
effective mechanical mass incl. air load mms = 2,8 g
equivalent volume of compliance Vas = 1,82 l
total Q factor Qts = 0,54 (Qms=2,18, Qes=0,71)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 3,7 mm
