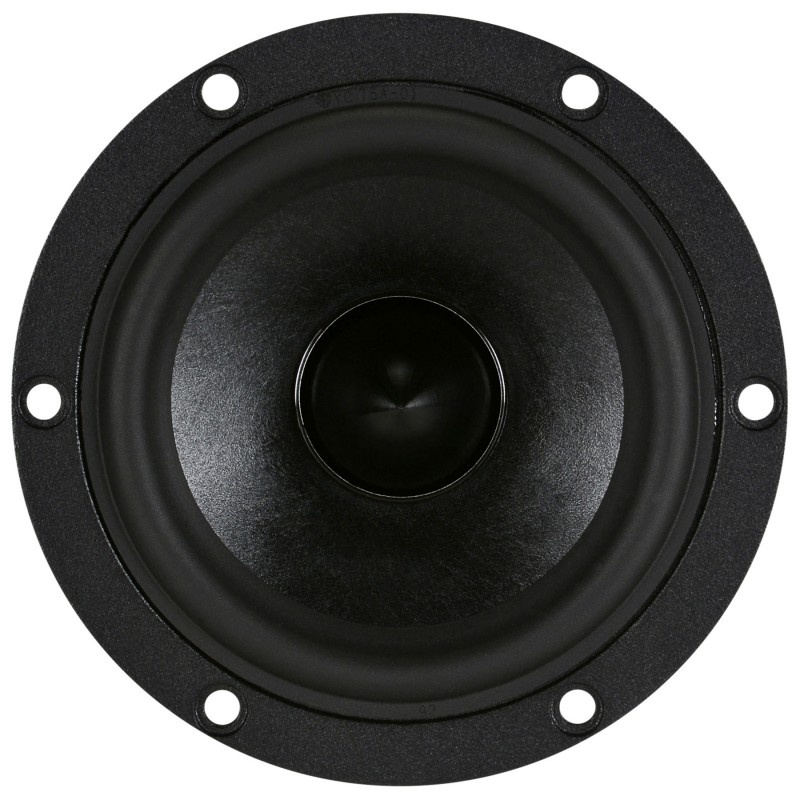

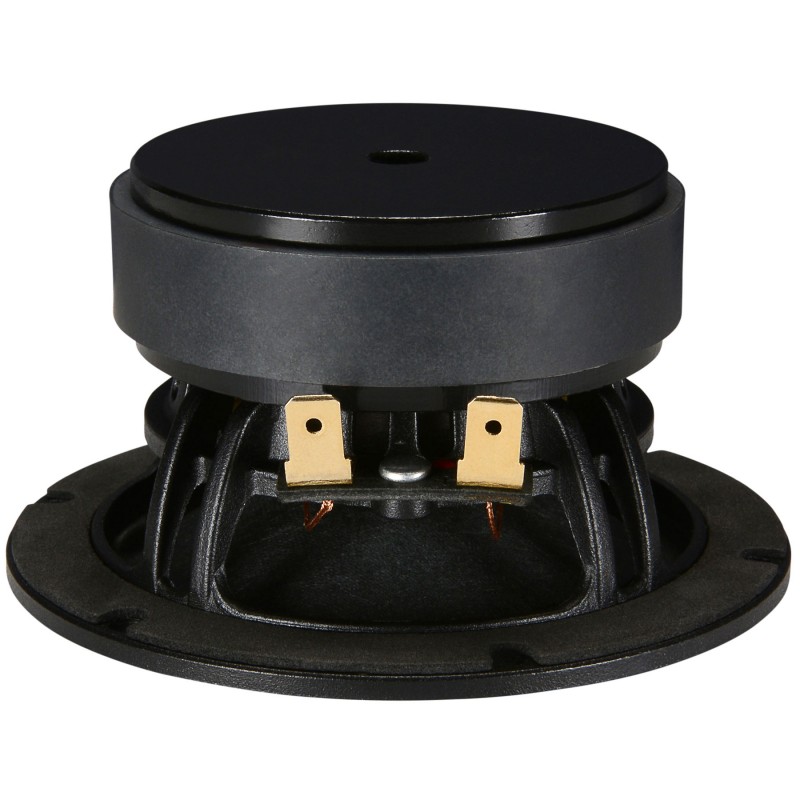

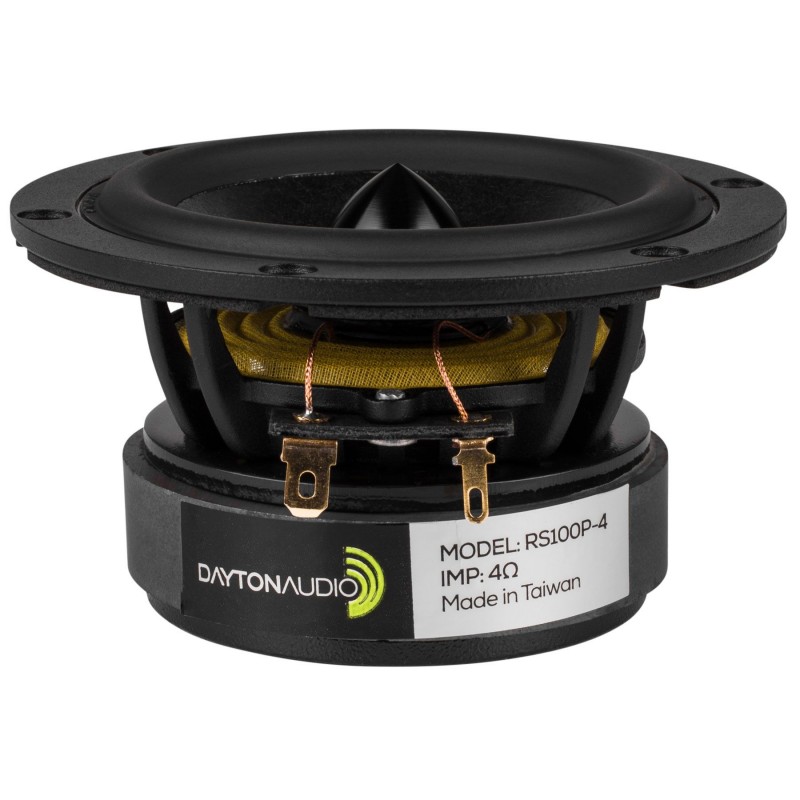

The performance of the original groundbreaking Reference Series from Dayton Audio, now available with a paper cone! The Reference Series Paper drivers use a proprietary paper cone formulation combining natural paper pulp and synthetic Kevlar® and glass fibers to create an advanced non-woven fiber composite that delivers the perfect combination of excellent detail and smooth, natural sonic character, plus a distinctive, classy look.
• Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers • Similar cosmetics and design features as original Reference Series with low-distortion • Perfect for use a woofer, midwoofer, or dedicated midrange driver
Specifications
power handling (continuous/programme) = 30 W

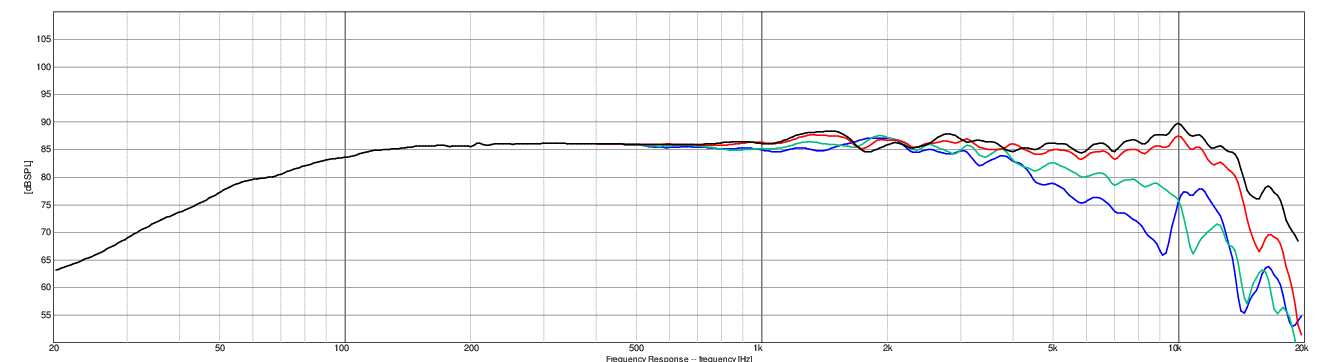

frequency range = 85-13500 Hz
resonance frequency fs = 84,8 Hz

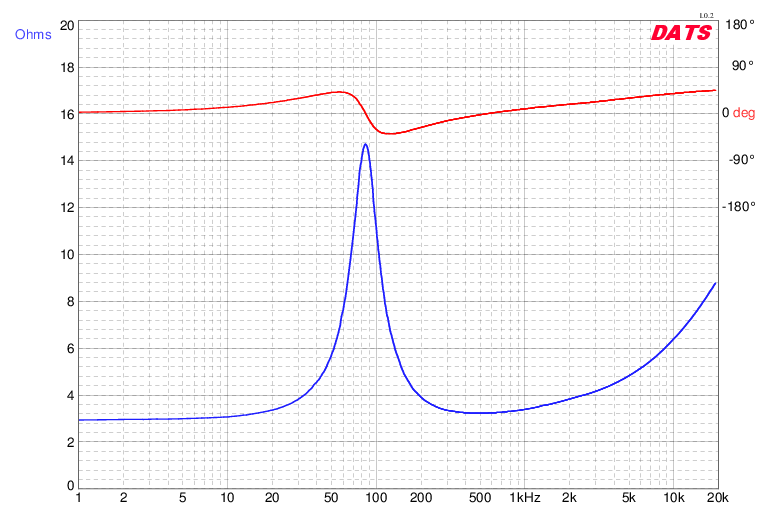

impedance R = 4 Ohm
DC resistance Re = 3,0 Ohm
force factor BL = 2,95 N/A
voice coil inductance L = 0,26 mH
effective piston radiating area Sd = 36,3 cm2
effective mechanical mass incl. air load mms = 3,7 g
equivalent volume of compliance Vas = 1,86 l
total Q factor Qts = 0,54 (Qms=2,67, Qes=0,67)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 4 mm
