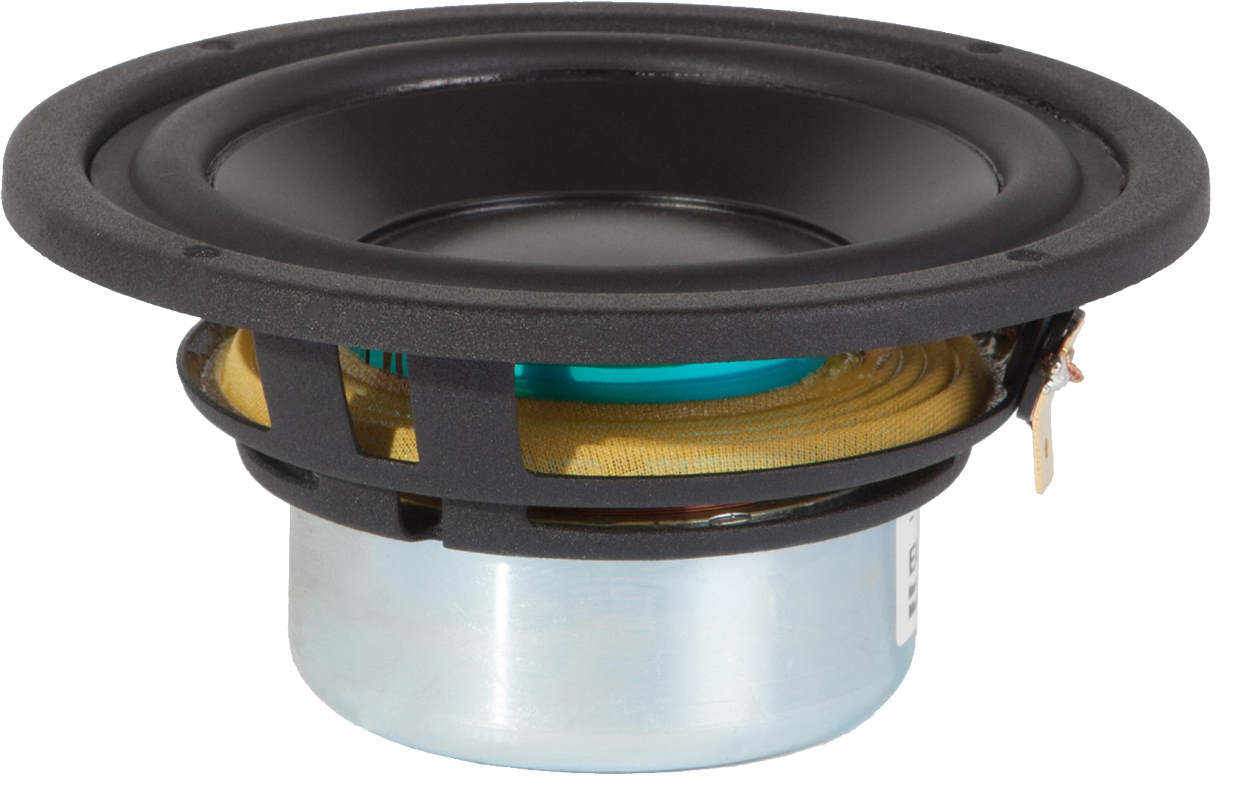

The Classic Advanced CAW 428 is based on Morel's renowned MW series. These products have high power handling due to the aerodynamic Uniflow™ open chassis and large diameter spider. This woofer has reinforced ferrite magnets for the double magnet system, delivering higher magnetic flux and resulting in a low resonance frequency and Qts point.
75mm large Hexatech™ aluminum voice coil
Uniflow™ steel chassis
High flux ferrite double magnet system
Shallow profile DPC cone
High excursion
Specifications
power handling (continuous/programme) = 150 W
frequency range = 45-3000 Hz
resonance frequency fs = 74 Hz

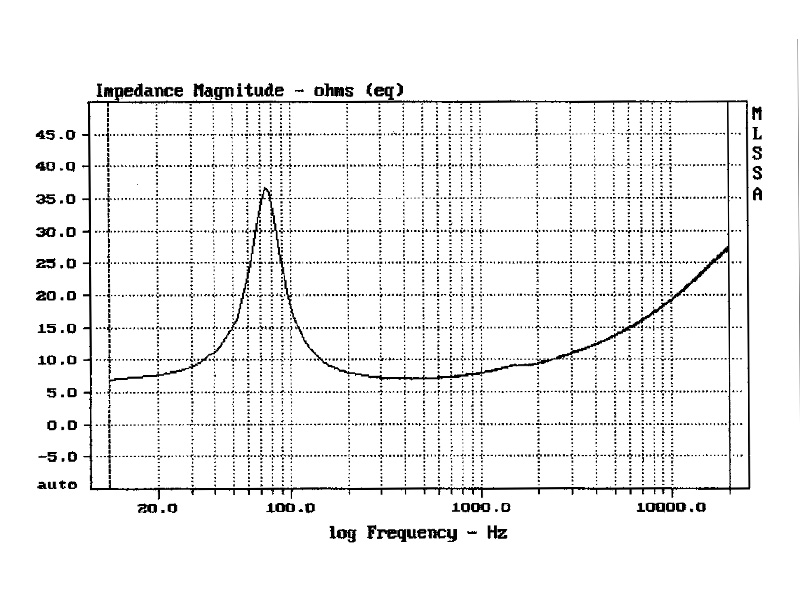

impedance R = 8 Ohm

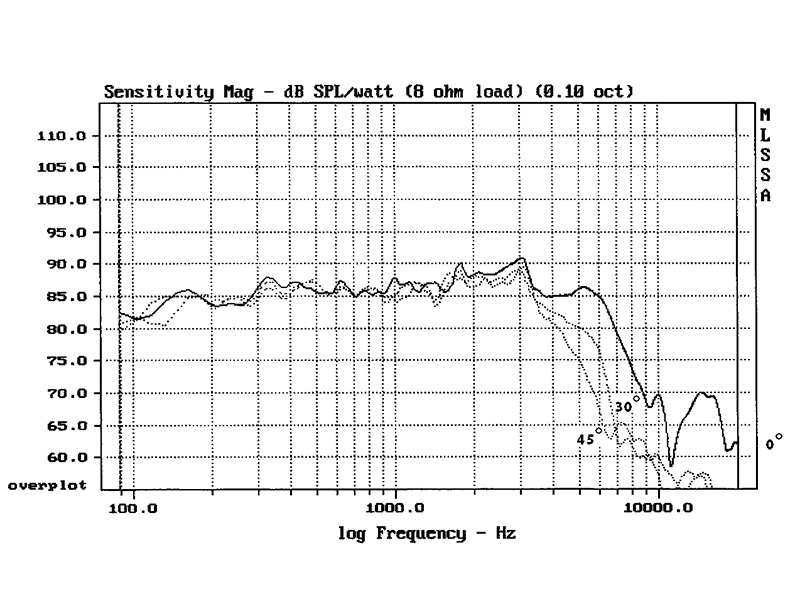

sound pressure level SPL = 88 dB (2,83V; 1m)
DC resistance Re = 5,5 Ohm
force factor BL = 5 N/A
voice coil inductance L = 0,32 mH
effective piston radiating area Sd = 57 cm2
effective mechanical mass incl. air load mms = 4,55 g
equivalent volume of compliance Vas = 4,5 l
total Q factor Qts = 0,38 (Qms=2,33, Qes=0,46)
voice coil diameter = 54 mm
maximum peak linear excursion vibration xlin = +/- 4 mm
