SB Acoustics SB12CACS25-8

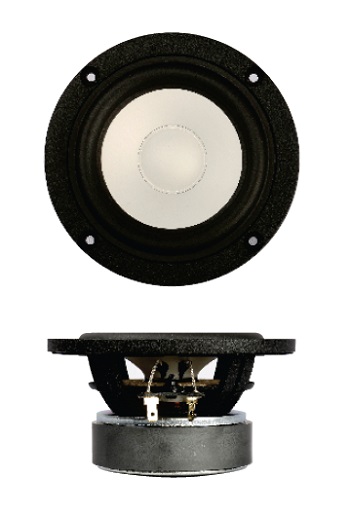

SB Acoustics SB12CACS25-8 Ceramic 4" Woofer

• Vented cast aluminium chassis for optimum strength and low compression
• Ceramic cone
• Soft low damping rubber surround for improved transient response
• Shorting ring in motor system for reduced distortion
• Non-conducting fibre glass voice coil former for minimum damping
• CCAW voice coil for reduced moving mass
• Long life silver lead wires
• Vented pole piece for reduced compression

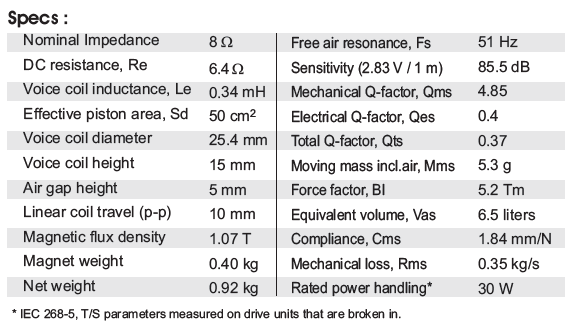

Specifications

• power handling (continuous/programme) = 30 W

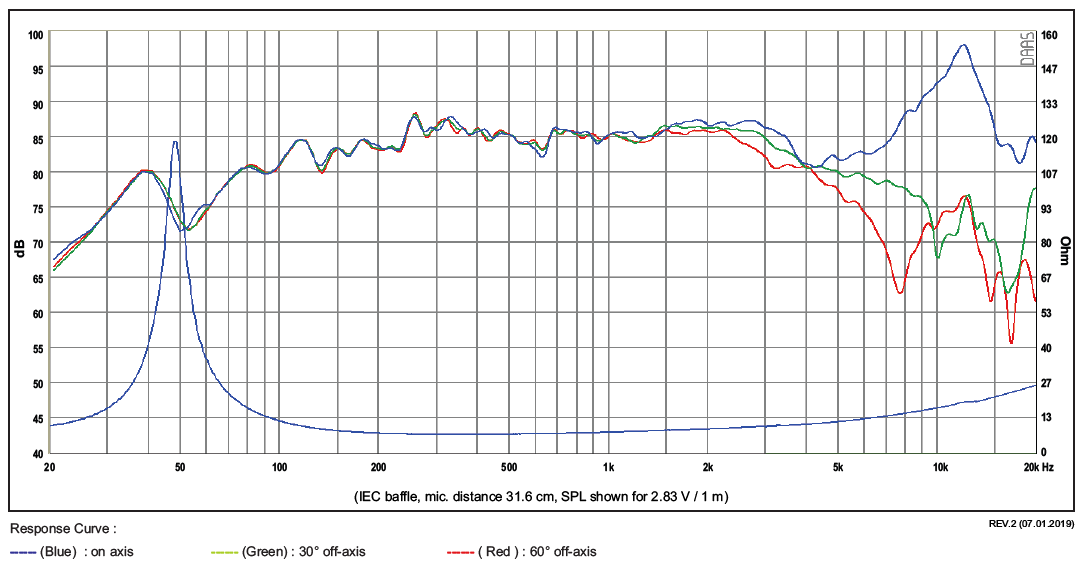

• frequency range = 60-12000 Hz
• resonance frequency fs = 51 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 85,5 dB (2,83V; 1m)
• DC resistance Re = 6,4 Ohm
• force factor BL = 5,2 N/A
• voice coil inductance L = 0.34 mH
• effective piston radiating area Sd = 50 cm²
• effective mechanical mass incl. air load mms = 5,3 g
• equivalent volume of compliance Vas = 6,5 l
• total Q factor Qts = 0.37 (Qms=4,85, Qes=0.40)
• voice coil diameter = 25,4 mm

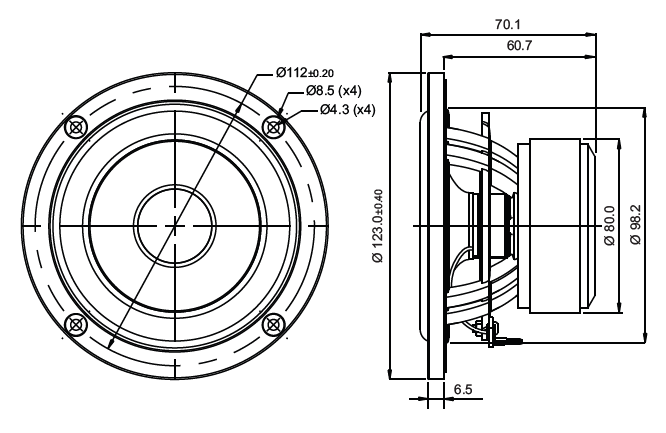

• mounting diameter d = 98,2 mm
• overall diameter d = 123mm
• mounting depth (not countersunk) t = 60,7 mm
