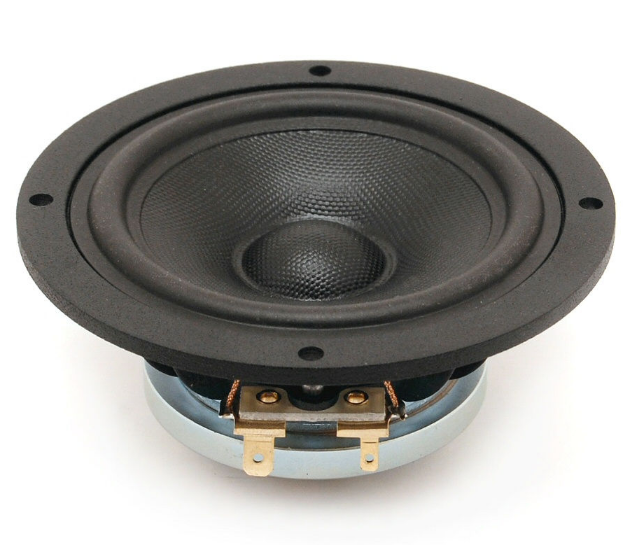

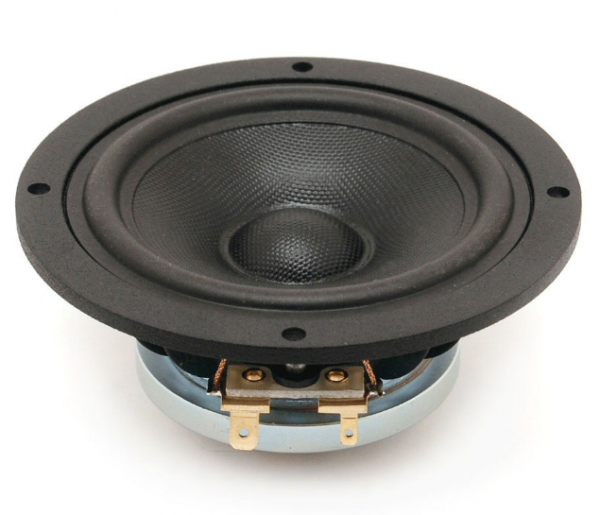

Scan-Speak 10F/8414G10

The Scan-Speak 10F/8414G10 Discovery, 4" Widerange offers a traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

Specifications

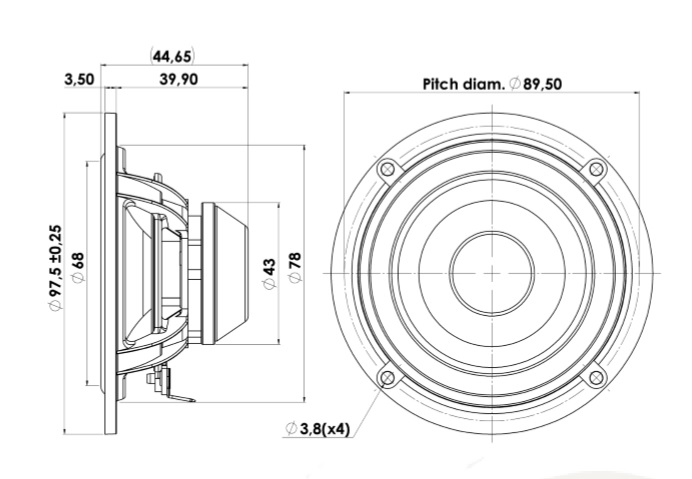

• mounting depth (not countersunk) t = 44,7 mm
• overall diameter d = 97,5 mm
• mounting diameter d = 78 mm
• maximum peak linear excursion vibration x_lin = +/- 2,3 mm
• voice coil diameter = 19,4 mm
• total Q factor Qts = 0,51 (Qms=2,44, Qes=0,65)
• ^{equivalent volume of compliance Vas = 1,57 l}
• effective mechanical mass incl. air load mms = 2,93 g
• effective piston radiating area Sd = 36,3 cm²
• voice coil inductance L = 0,11 mH
• force factor BL = 4,27 N/A
• _{DC resistance Re = 6,3 Ohm}
• sound pressure level SPL = 86 dB (2,83V; 1m)
• impedance R = 8 Ohm
• resonance frequency fs = 100 Hz

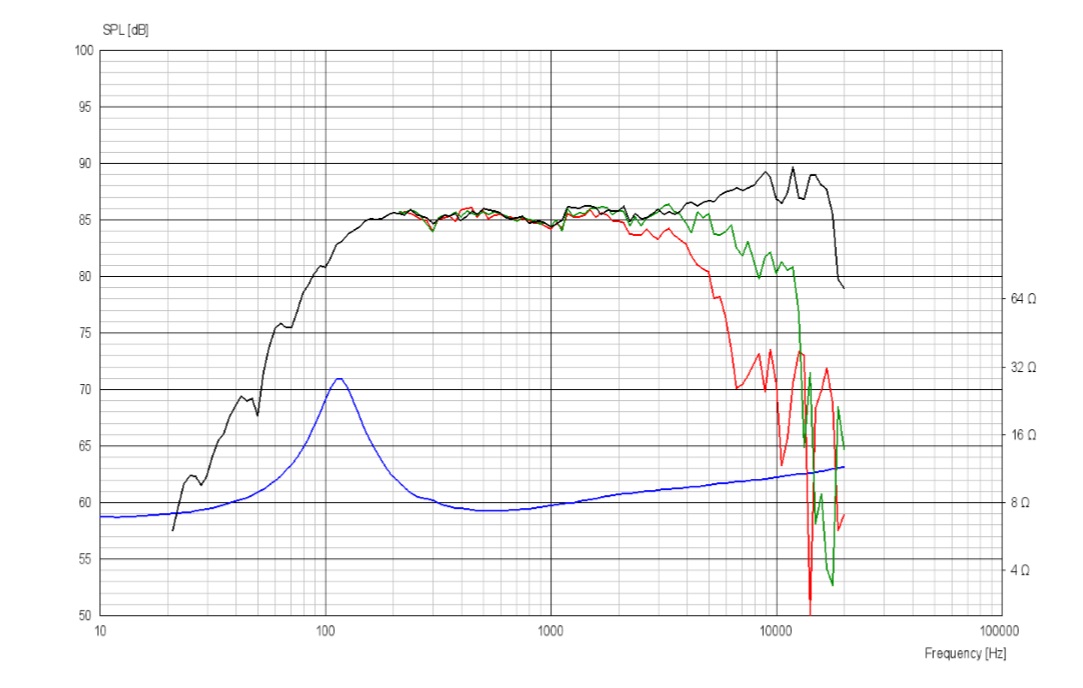

• frequency range = 100-19000 Hz
• power handling (continuous/programme) = 10/20 W
