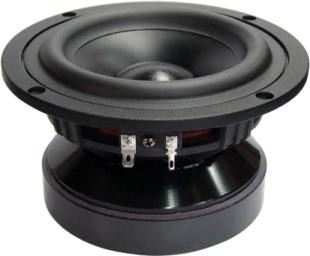

The W5-1685 5" midbass features a long throw, underhung 1-1/2" voice coil driven by a massive 33 oz. ferrite magnet. A shorting ring on the polepiece is responsible for the speaker's extremely low levels of second and third order harmonic distortion. This impressive motor is coupled to an optimized paper cone with rubber surround, supported by a cast aluminum frame. The driver's naturally high and smooth upper frequency rolloff facilitates simplified crossover designs.
Specifications
power handling (continuous/programme) = 45/90 W
frequency range = 50-10000 Hz
resonance frequency fs = 50 Hz
impedance R = 4 Ohm

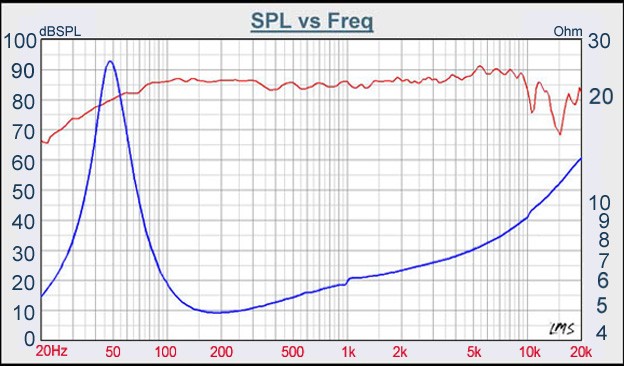

sound pressure level SPL = 86 dB (2,83V; 1m)
DC resistance Re = 3,6 Ohm
force factor BL = 4,72 N/A
voice coil inductance L = 0,042 mH
effective piston radiating area Sd = 94 cm2
effective mechanical mass incl. air load mms = 10,98 g
equivalent volume of compliance Vas = 12,76 l
total Q factor Qts = 0,46 (Qms=3,33, Qes=0,53)
voice coil diameter = 38,5 mm
maximum peak linear excursion vibration xlin = +/- 6,1 mm
