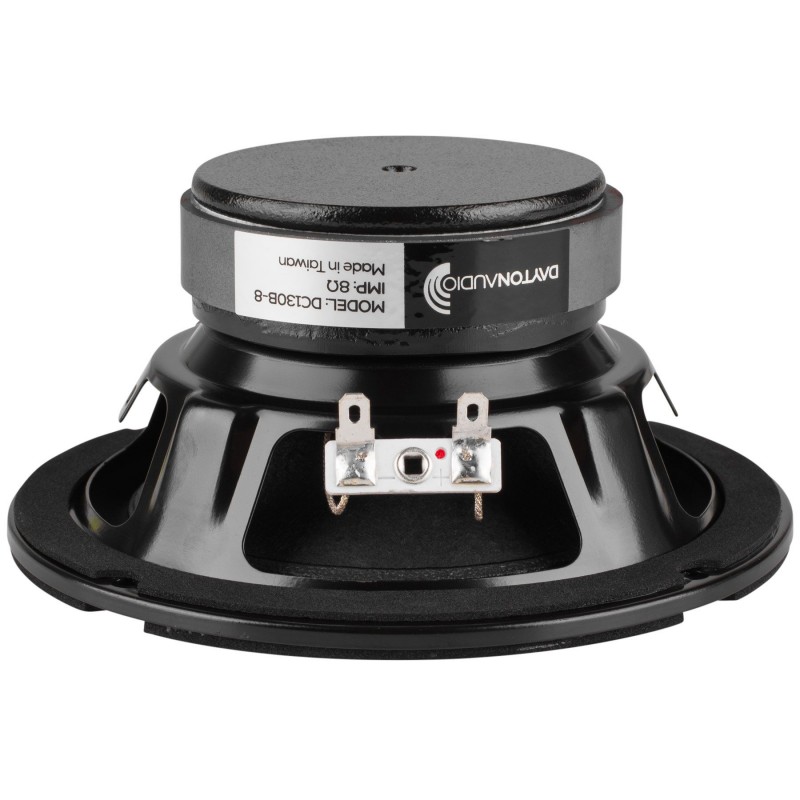

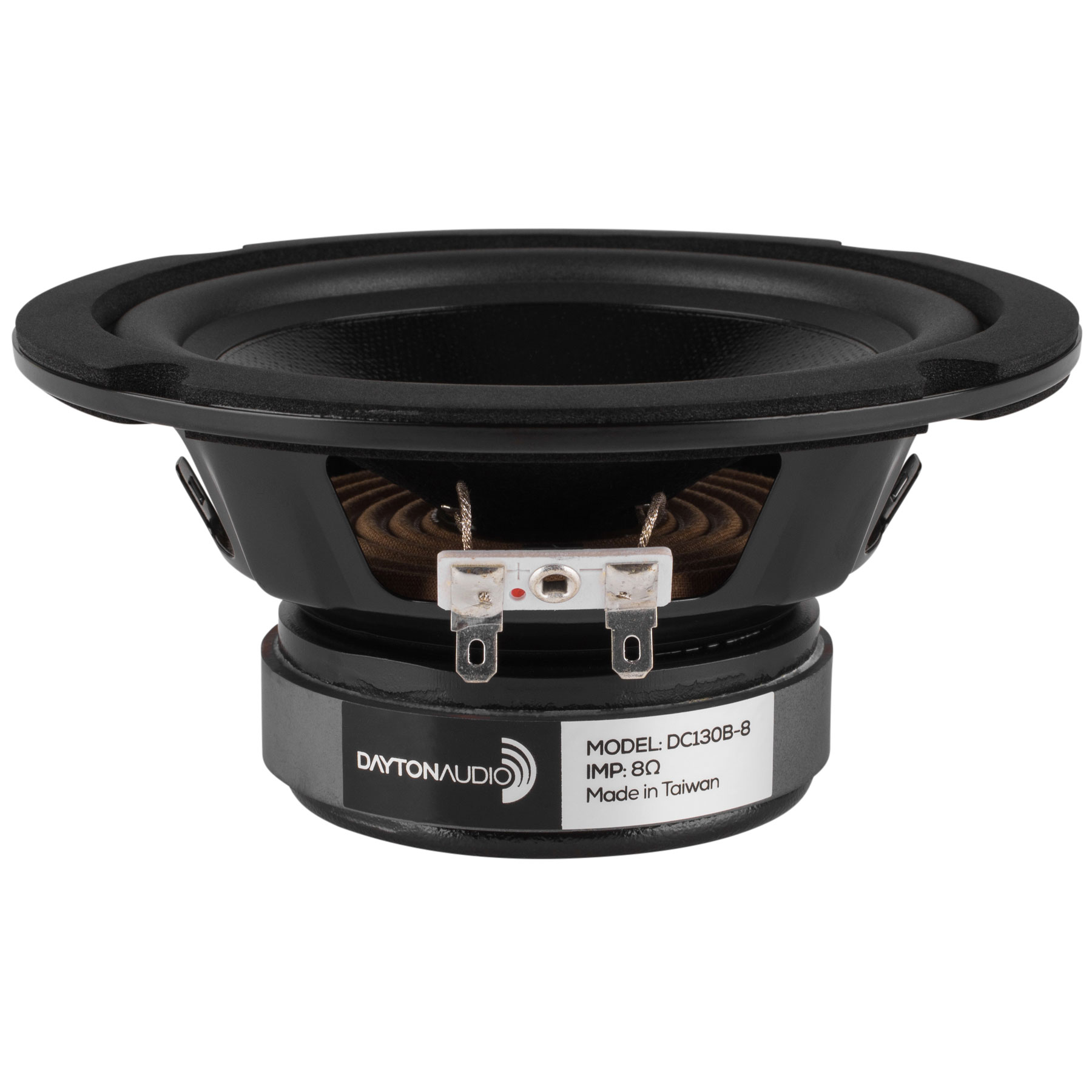

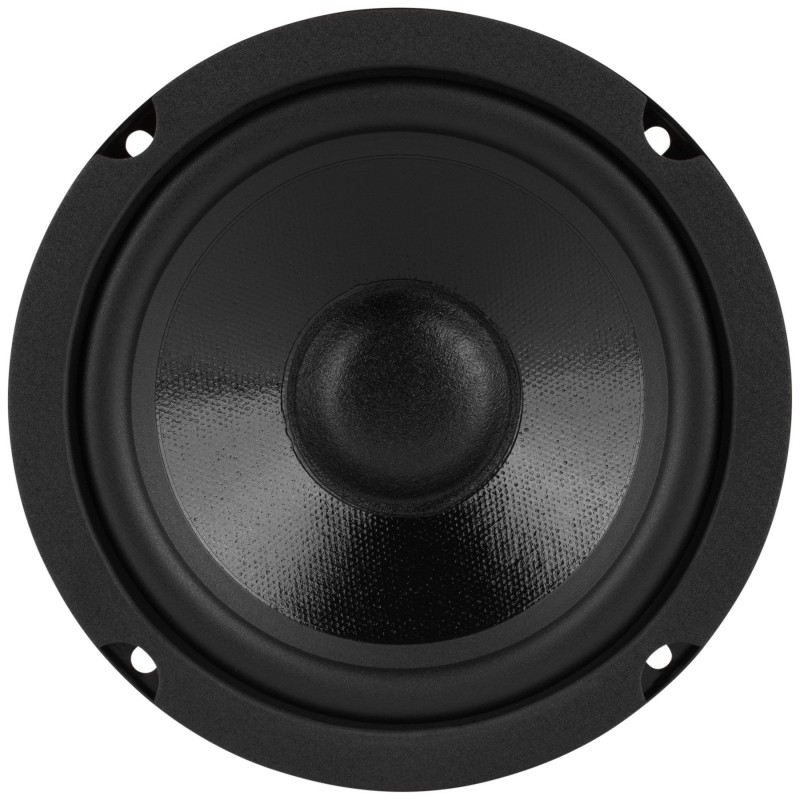

Dayton Audio's DC130B-8 5-1/4" Classic Series woofer is perfect for compact 2-way designs as well as use in multiples or transmission lines.
One of the main design goals at Dayton Audio is to create loudspeakers that can achieve high levels of performance at reasonable prices. The Dayton Audio DC130B-8 5-1/4" woofer is a great example of this approach. It features a non-pressed treated paper cone, rubber half-roll surround, ASV voice coil, coated cloth dust cap, and excellent low frequency response.
Specifications
power handling (continuous/programme) = 40 W
frequency range = 50-5000 Hz
resonance frequency fs = 50,5 Hz
impedance R = 8 Ohm
DC resistance Re = 5,8 Ohm
force factor BL = 5,79 N/A
voice coil inductance L = 0,81 mH
effective piston radiating area Sd = 91,6 cm2
effective mechanical mass incl. air load mms = 8,8 g
equivalent volume of compliance Vas = 14,3 l
total Q factor Qts = 0,38 (Qms=1,75, Qes=0,48)
voice coil diameter = 25 mm
maximum peak linear excursion vibration xlin = +/- 2,5 mm
