SB Acoustics SB15CAC30-4

SB Acoustics
Preview: SB Acoustics SB15CAC30-4 Preview: SB Acoustics SB15CAC30-4 charts Preview: SB Acoustics SB15CAC30-4 parameters Preview: SB Acoustics SB15CAC30-4 dimensions

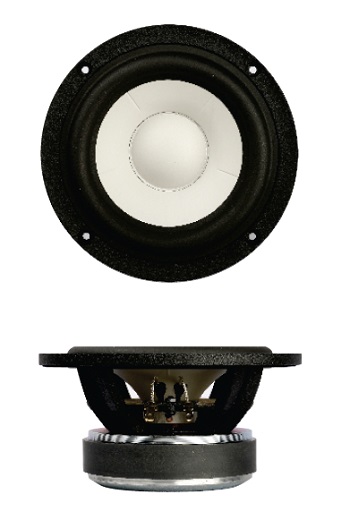

SB Acoustics SB15CAC30-4

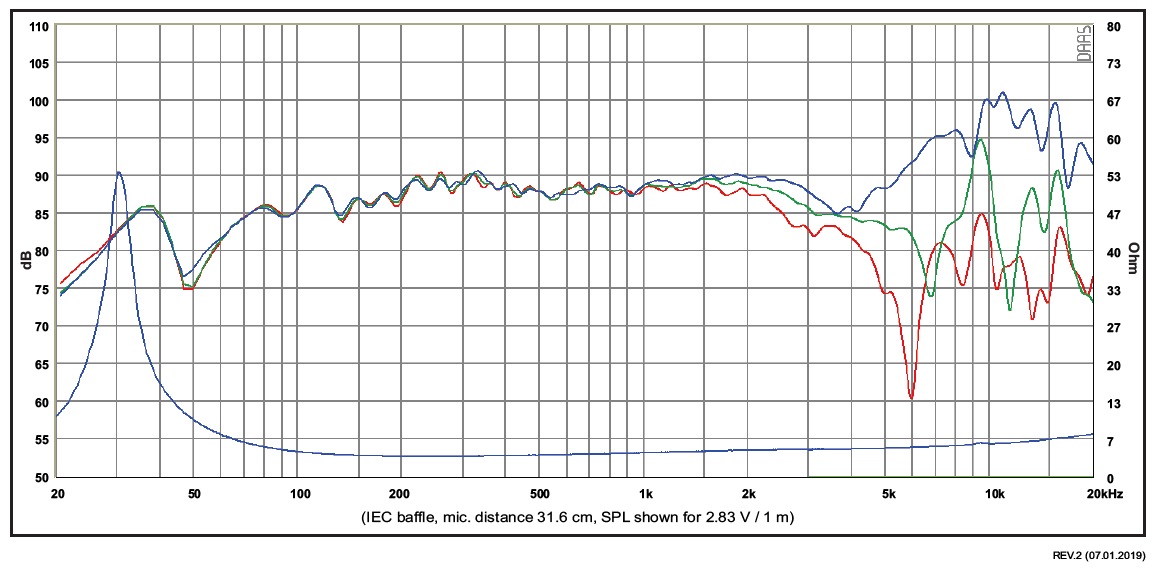

SB Acoustics SB15CAC30-4 charts

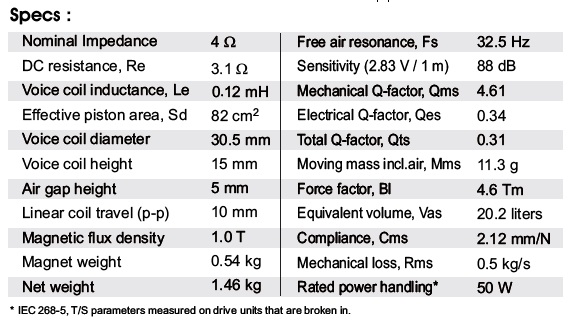

SB Acoustics SB15CAC30-4 parameters

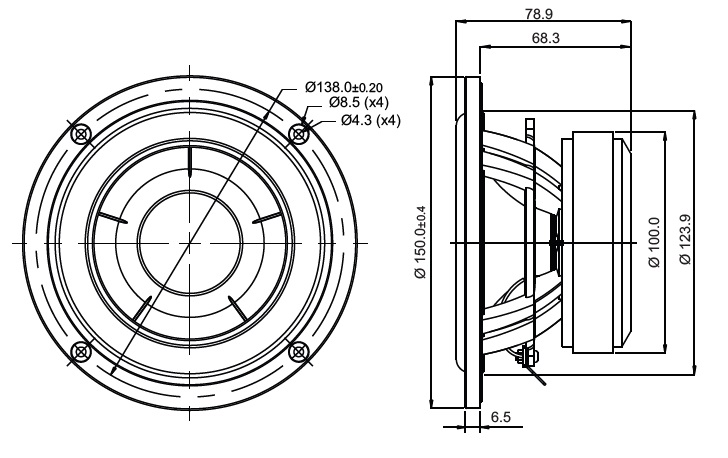

SB Acoustics SB15CAC30-4 dimensions

€104.73 *

Prices incl. VAT plus shipping costs

Delivery time 1-3 Workdays

  • Order number: 1382441
Description Evaluations 0
Description
SB Acoustics SB15CAC-30-4 Vented cast aluminium chassis for optimum strength and low... more
Close menu
Product information "SB Acoustics SB15CAC30-4"

SB Acoustics SB15CAC-30-4

  • Vented cast aluminium chassis for optimum strength and low compression
  • Geometrically reinforced ceramic cone for optimum piston operation and reduced break-up
  • Soft low damping rubber surround for improved transient response
  • Non-conducting fibre glass voice coil former for minimum damping
  • Extended copper sleeve on pole piece for low inductance and low distortion
  • CCAW voice coil for reduced moving mass
  • Long life silver lead wires
  • Vented pole piece for reduced compression



Specifications

  • power handling (continuous/programme) = 50 W
  • resonance frequency fs = 32,5 Hz
  • impedance R = 4 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 3,1 Ohm
  • force factor BL = 4,6 N/A
  • voice coil inductance L = 0,12 mH
  • effective piston radiating area Sd = 82 cm2
  • effective mechanical mass incl. air load mms = 11,3 g
  • equivalent volume of compliance Vas = 20,2 l
  • total Q factor Qts = 0.31 (Qms=4,61, Qes=0.34)
  • voice coil diameter = 30,5 mm
  • mounting diameter d = 123.9 mm
  • overall diameter d = 150 mm
  • mounting depth (not countersunk) t = 68.3 mm
