SB Acoustics SB15NRX2C30-8

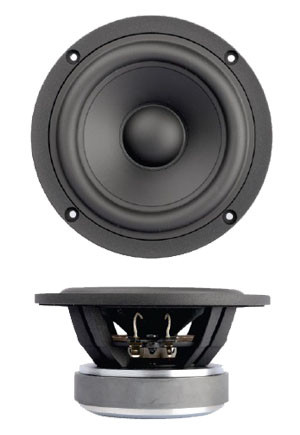

SB Acoustics SB15NRX2C30-8 5" Woofer

Features

• Vented cast aluminum chassis for optimum strength and low compression
• Proprietary cone material with natural fibers made in-house
• Soft low damping rubber surround for improved transient response
• Non-conducting fiber glass voice coil former for minimum damping
• Extended copper sleeve on pole piece for low inductance and low distortion
• CCAW voice coil for reduced moving mass
• Long life silver lead wires
• Vented pole piece for reduced compression

Specifications

• power handling (continuous/programme) = 50 W

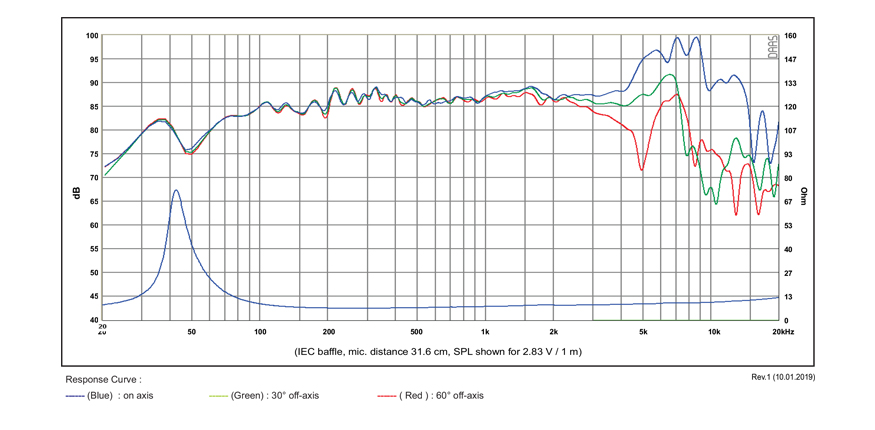

• frequency range = 80-15000 Hz
• resonance frequency fs = 36,5 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 86,5 dB (2,83V; 1m)
• DC resistance Re = 5,9 Ohm
• force factor BL = 5,75 N/A
• voice coil inductance L = 0,14 mH
• effective piston radiating area Sd = 82 cm²
• effective mechanical mass incl. air load mms = 9,1 g
• equivalent volume of compliance Vas = 20 l
• total Q factor Qts = 0,34 (Qms=3,48, Qes=0,37)
• voice coil diameter = 30,5 mm

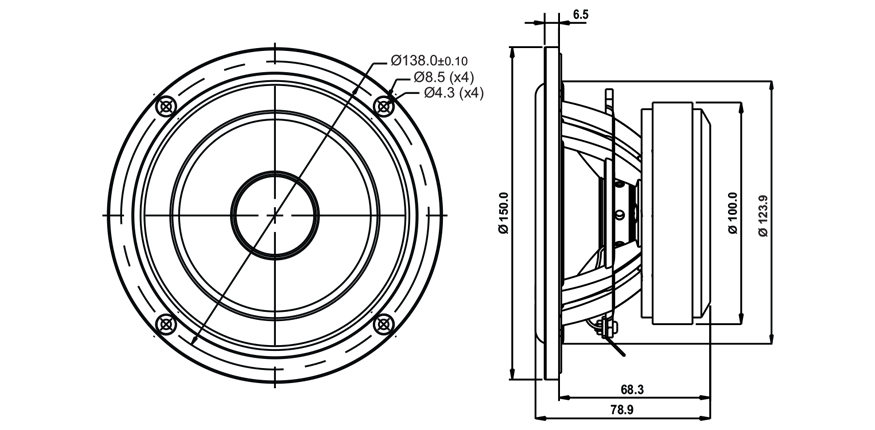

• mounting diameter d = 123 mm
• overall diameter d = 150 mm
• mounting depth (not countersunk) t = 69 mm
