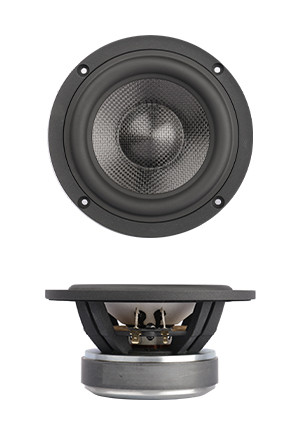

SB Acoustics SB15CRC30-8

SB Acoustics SB15CRC30-8

• Rohacell®/Carbon fibre sandwich cone for optimized stiffness/damping ratio
• Vented cast aluminum chassis for optimum strength and low compression
• Low damping rubber surround for improved transient response
• Non-conducting fibre glass voice coil former for minimum damping
• Extended copper sleeve on pole piece for low inductance and low distortion
• CCAW voice coil for reduced moving mass
• Long life silver lead wires
• Vented pole piece for reduced compression

Specifications

• power handling (continuous/programme) = 50 W

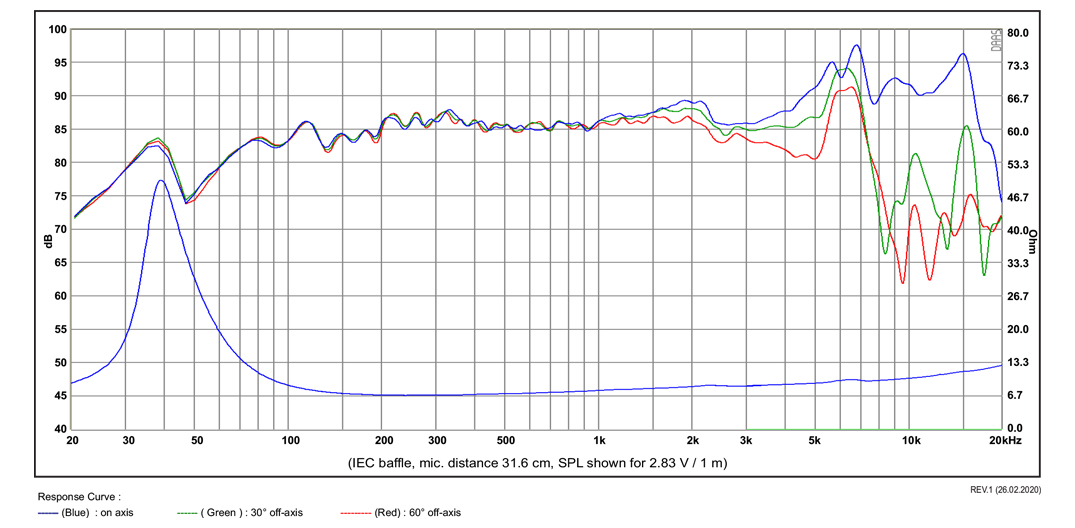

• resonance frequency fs = 35.5 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 86 dB (2,83V; 1m)
• DC resistance Re = 5.9 Ohm
• force factor BL = 5.6 N/A
• voice coil inductance L = 0,14 mH
• effective piston radiating area Sd = 82 cm²
• effective mechanical mass incl. air load mms = 9,8 g
• equivalent volume of compliance Vas = 14.9 l
• total Q factor Qts = 0.41 (Qms=3,52, Qes=0.46)
• voice coil diameter = 30,5 mm

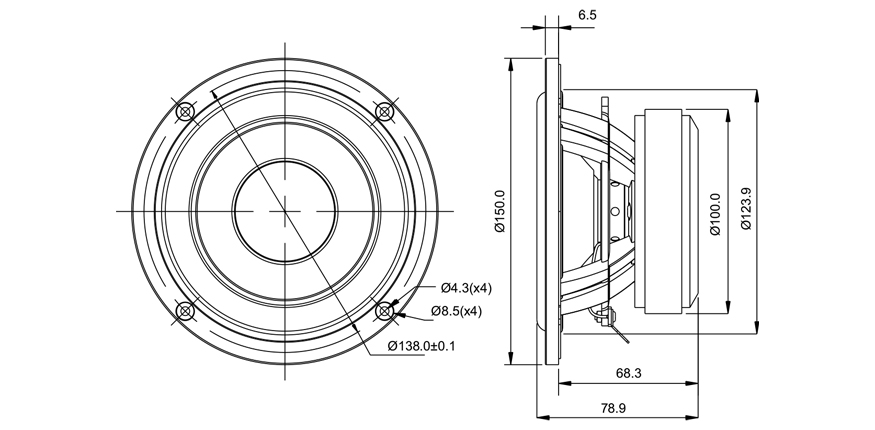

• mounting diameter d = 123.9 mm
• overall diameter d = 150 mm
• mounting depth (not countersunk) t = 68.3 mm
