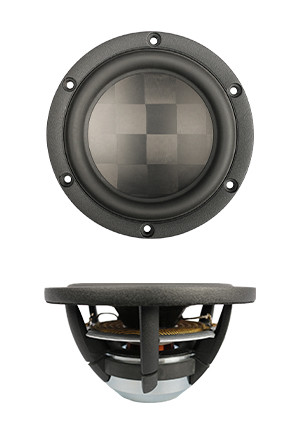

SB Acoustics SATORI MW13TX-8

SB-Acoustics 5'' SATORI MW13TX-8

• Advanced TeXtreme® cone
• Vented aerodynamic cast aluminium chassis
• Soft low damping rubber surround
• Advanced BIMAX spider
• Powerful optimized low distortion neodymium motor system
• Extended copper sleeve on pole piece
• Non-conducting fiberglass voice coil former
• Vented pole piece and voice coil
• Light weight CCAW voice coil
• Long life silver lead wires

Specifications

• Nominal Impedance 8 Ω
• DC resistance, Re 6.0 Ω
• Voice coil inductance, Le 0.18 mH
• Effective piston area, Sd 70 cm²
• Voice coil diameter 30.5 mm
• Voice coil height 15 mm
• Air gap height 5 mm
• Linear coil travel (p-p) 10 mm
• Magnetic flux density 1.08 T
• Magnet weight 0.1 kg
• Net weight 0.79 kg
• Free air resonance, Fs 40 Hz
• Sensitivity (2.83V/1m) 87 dB
• Mechanical Q-factor, Qms 4.99
• Electrical Q-factor, Qes 0.34
• Total Q-factor, Qts 0.33
• Moving mass incl. air,Mms 7.3 g
• Force factor, Bl 5.7 Tm
• Equivalent volume, Vas 14.8 liters
• Compliance, Cms 2.19 mm/N
• Mechanical loss, Rms 0.4 kg/s
• Rated power handling* 40 W
