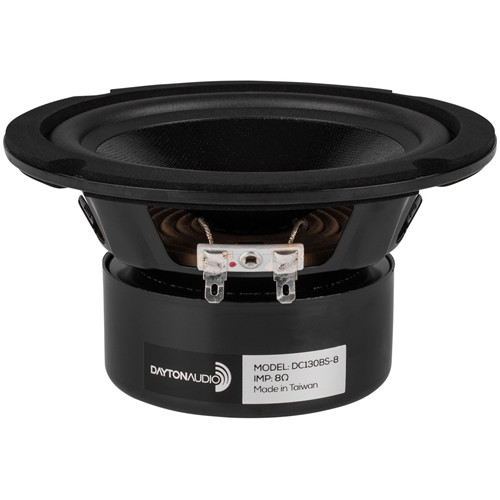

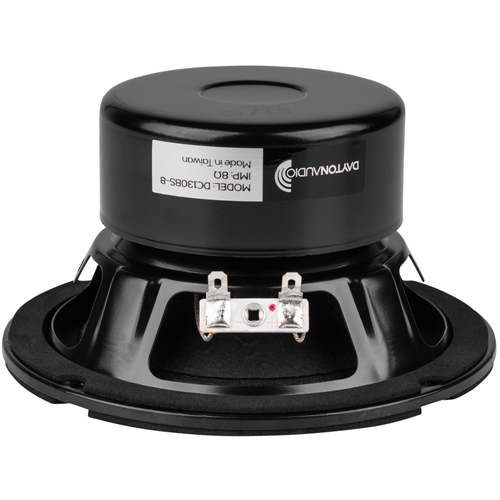

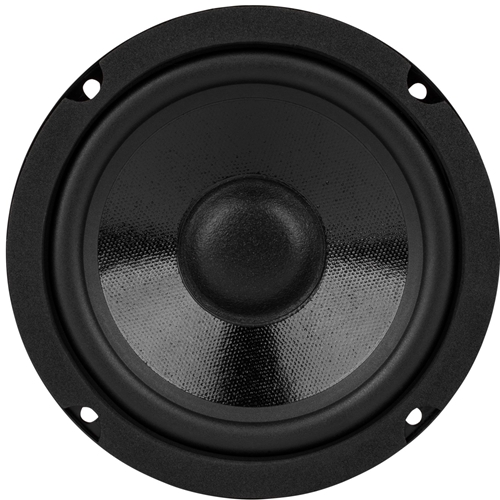

DC130BS-8 5-1/4" Classic Shielded Woofer 8 Ohm
Choose the Dayton Audio DC130BS-8 Classic Series 5-1/4" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.
Product Highlights
- Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer
- Smooth frequency response up to 2 kHz and great bass response
- Rubber surround, aluminum voice coil, and extended bump plate
- Shielded design increases performance and allows it to be used near tube TVs
Specifications
- Power Handling (RMS) 30 Watts
- Power Handling (max) 60 Watts

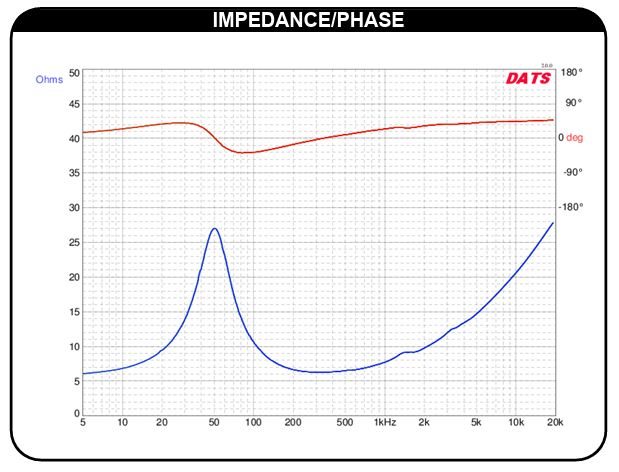

- Impedance (Z) 8 ohms
- Sensitivity (SPL at 1m / 2.83V) 88.9 dB

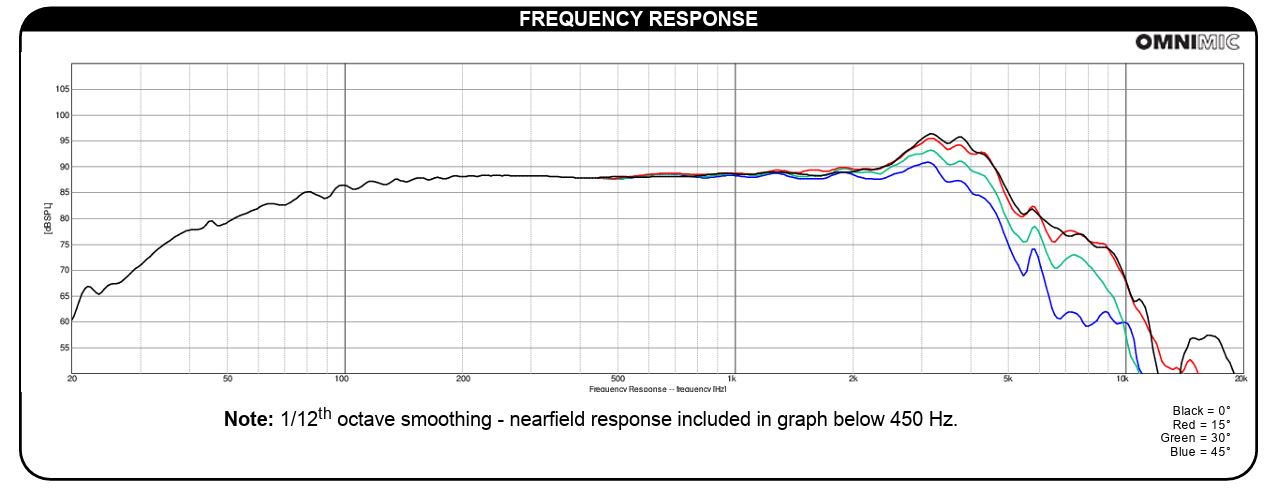

- Frequency Response 55 to 4,000 Hz
- Voice Coil Diameter 25 mm
- Magnet Weight 10 oz.
- DC Resistance (Re) 5.8 ohms
- Voice Coil Inductance (Le) 0.82 mH @ 1 kHz
- Resonant Frequency (Fs) 50.5 Hz
- Mechanical Q (Qms) 1.82
- Electromagnetic Q (Qes) 0.49
- Total Q (Qts) 0.39
- Diaphragm Mass Inc. Airload (Mms) 8.8g
- Mechanical Compliance of Suspension (Cms) 1.13 mm/N
- Surface Area of Cone (Sd) 91.6 cm²
- Volume of Displacement (Vd) 22.9 cm³
- BL Product (BL) 5.71 Tm
- Compliance Equivalent Volume (Vas) 13.8 liters
- Maximum Linear Excursion (Xmax) 2.5 mm

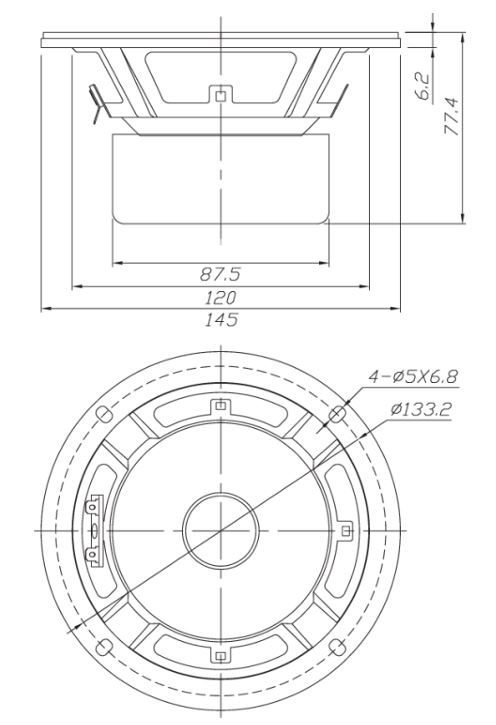

- Overall Outside Diameter 145 mm
- Overall Depth 77.4 mm
- Baffle Cutout Diameter 120 mm
