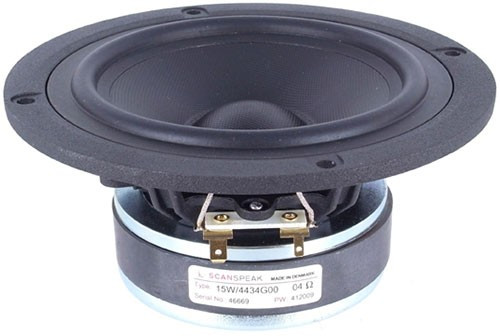

Scan-Speak 15W/4434G00

The Scanspeak 15W/4434G-00, 5.25 Discovery offer traditional design, superior sound, a solid construction, and a wide range of variants. Combining these elements - plus a wealth of technical features and finesses - it gives our customers the possibility of acquiring a tailor-made Scan-Speak solution with very good performance at a reasonable low price point!

• High Output 90dB @ 2,83V
• Magnet System w. Alu Ring
• Die cast Alu Chassis vented below spider
• Coated NRSC Fibre Glass Cone
• Low Damping SBR Rubber Surround
• Aluminium Chassis, Fiber Glass cone, NR rubber surround, Vented below spider

Specifications

• power handling (continuous/programme) = 60/120 W

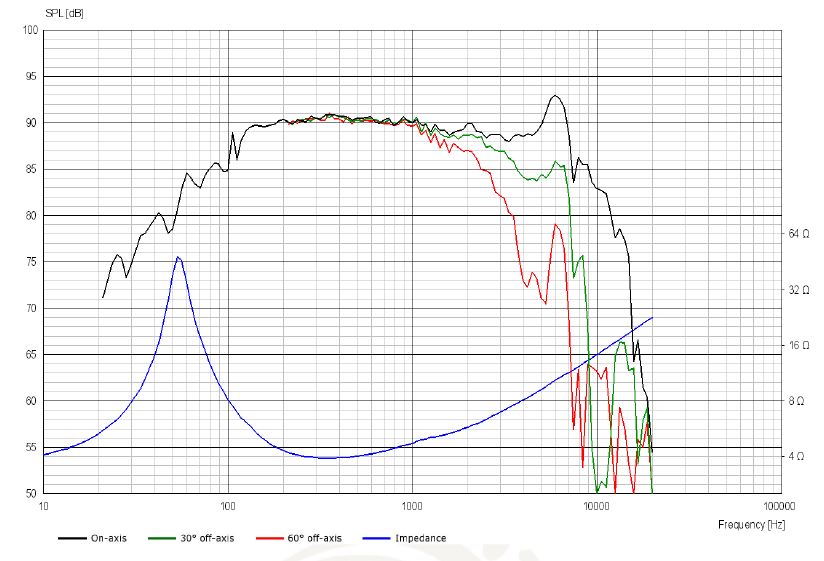

• frequency range = 45-4000 Hz
• resonance frequency fs = 43 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 89,7 dB (2,83V; 1m)
• DC resistance Re = 3 Ohm
• force factor BL = 5,9 N/A
• voice coil inductance L = 0,5 mH
• effective piston radiating area Sd = 80 cm²
• effective mechanical mass incl. air load mms = 9,6 g
• equivalent volume of compliance Vas = 12,8 l
• total Q factor Qts = 0,21 (Qms=3,69, Qes=0,22)
• voice coil diameter = 32 mm
• maximum peak linear excursion vibration x_lin = +/- 4,3 mm

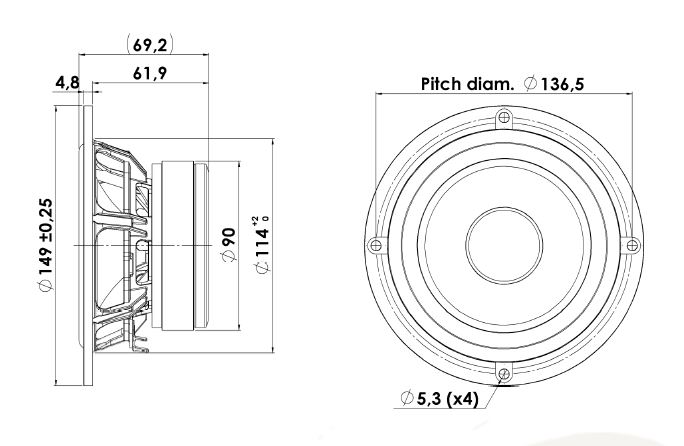

• mounting diameter d = 114 mm
• overall diameter d = 149 mm
• mounting depth (not countersunk) t = 69,2 mm
