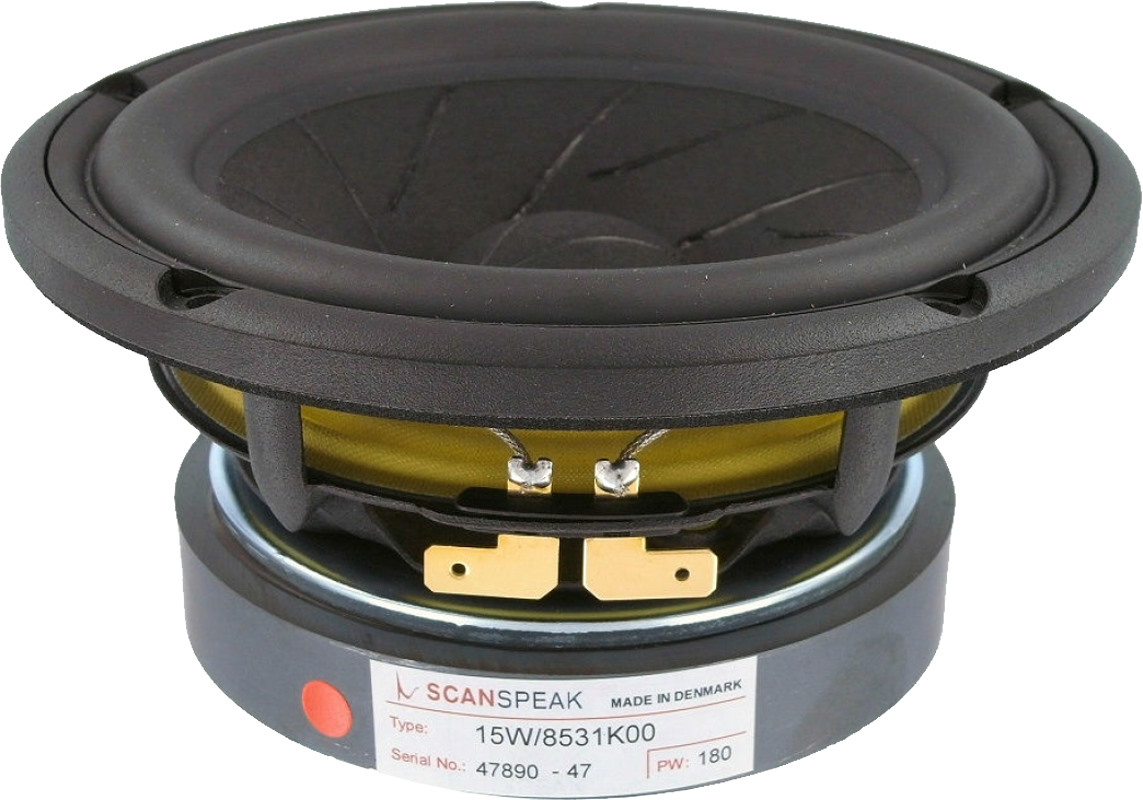

Scan-Speak 15W/8531K00

The Scan-Speak 15W/8530K-01 5.25" revelator midwoofer, well known for their sliced paper cone technology. The slices are filled with damping glue, wich dramatically reduces break-up modes in the diaphragm. In cominatiopn with Scan-Speaks low-loss linear suspension and the patented Symmetrical Drive (SD-1) it represented a brakthrough in midarange clarity and overall smooth frequency response characteristics.

Features

• Patented Symmetrical Drive motor design
• Low-Loss linear suspension
• Die cast Alu chassis vented below spider
• Sliced Cone (Controls Cone Breakups)
• Low Damping SBR Rubber Surround
• Large Ferrite Magnet System

Specifications

• power handling (continuous/programme) = 60 W

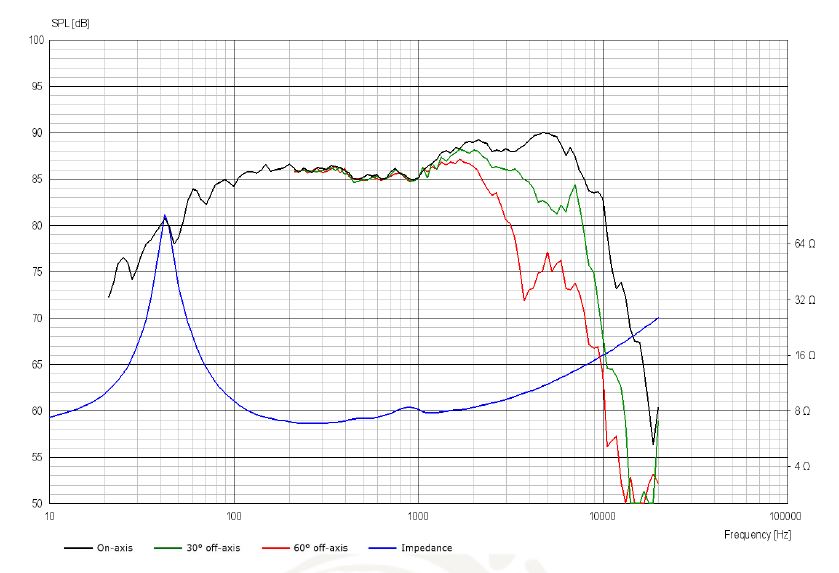

• frequency range = 30-6000 Hz
• resonance frequency fs = 32 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 85,5 dB (2,83V; 1m)
• DC resistance Re = 5,8 Ohm
• force factor BL = 6,8 N/A
• voice coil inductance L = 0,35 mH
• effective piston radiating area Sd = 95 cm²
• effective mechanical mass incl. air load mms = 13 g
• equivalent volume of compliance Vas = 24 l
• total Q factor Qts = 0,31 (Qms=5,23, Qes=0,33)
• voice coil diameter = 38 mm
• maximum peak linear excursion vibration x_lin = +/- 6,5 mm

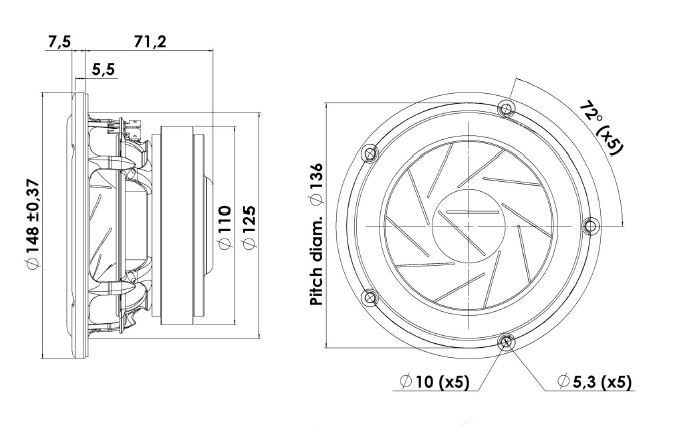

• mounting diameter d = 125 mm
• overall diameter d = 148 mm
• mounting depth (not countersunk) t = 76,7 mm
