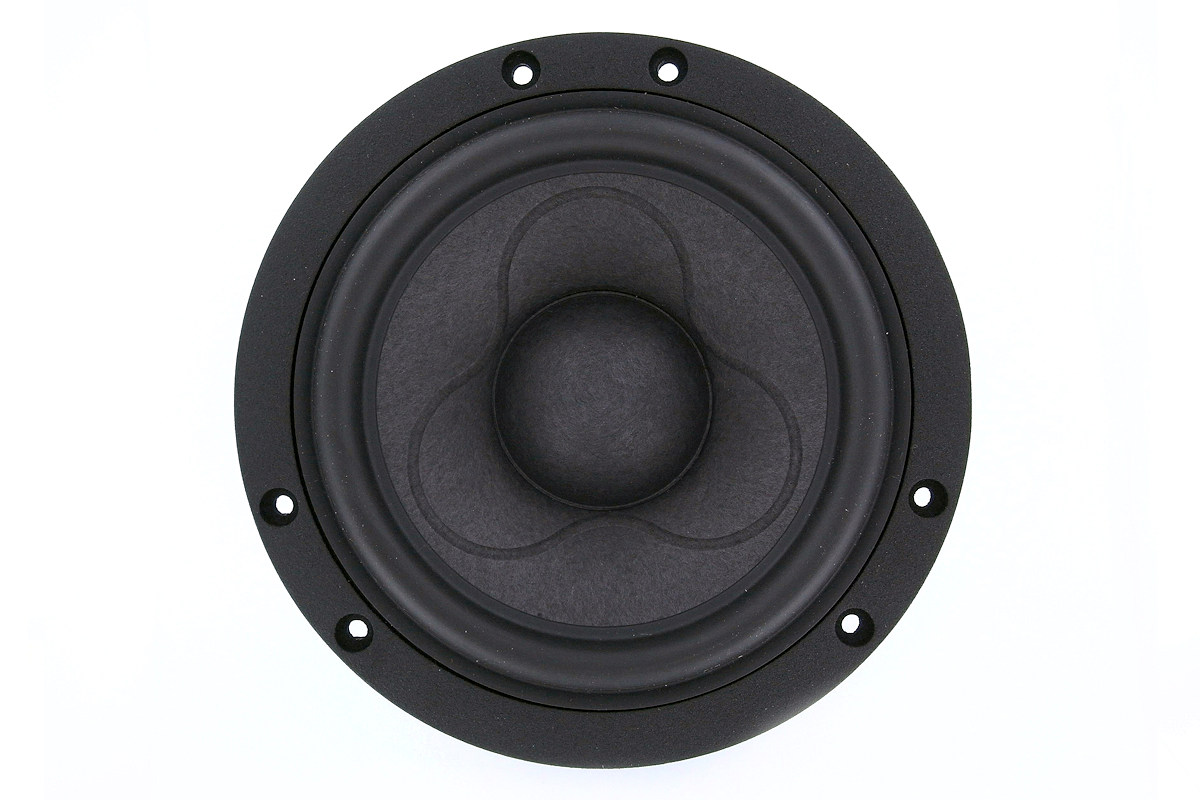

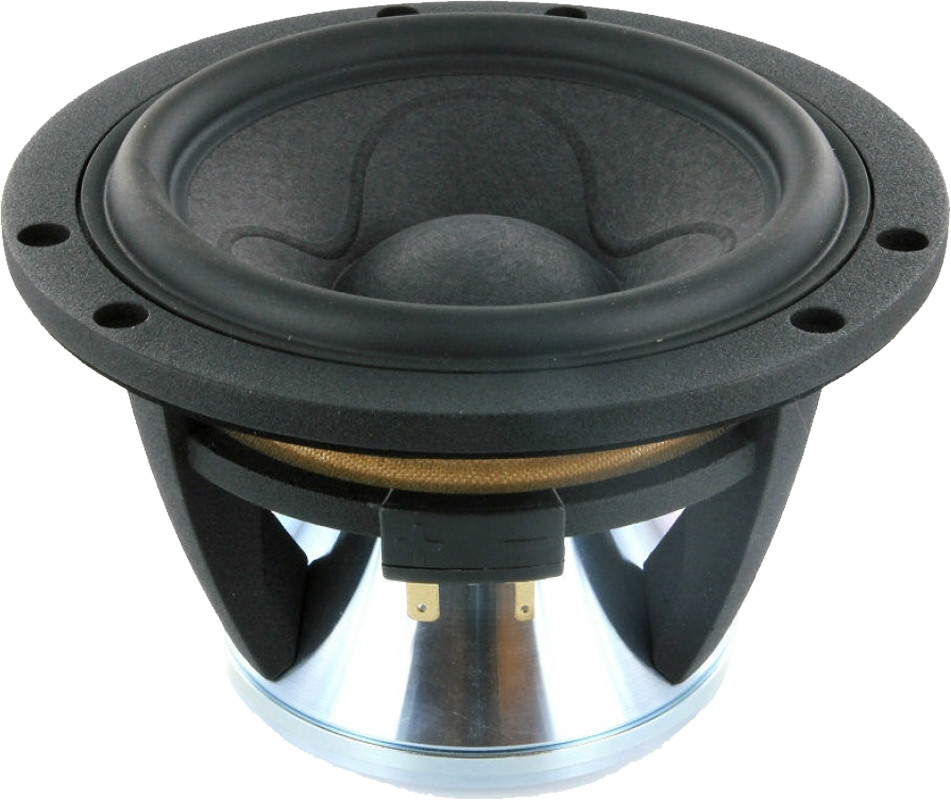

The Scan-Speak 15WU/8741T-00 5.25" woofers are based on compact under-hung motor systems with large neodymium ring magnets. The patent pending motor offers a very long linear excursion together with a very high force factor. The top plate is shaped to “guide” the backside airflow around the motor and with the very open cast aluminum chassis design the driver is virtually free from compression.
Paper cone
Cast frame

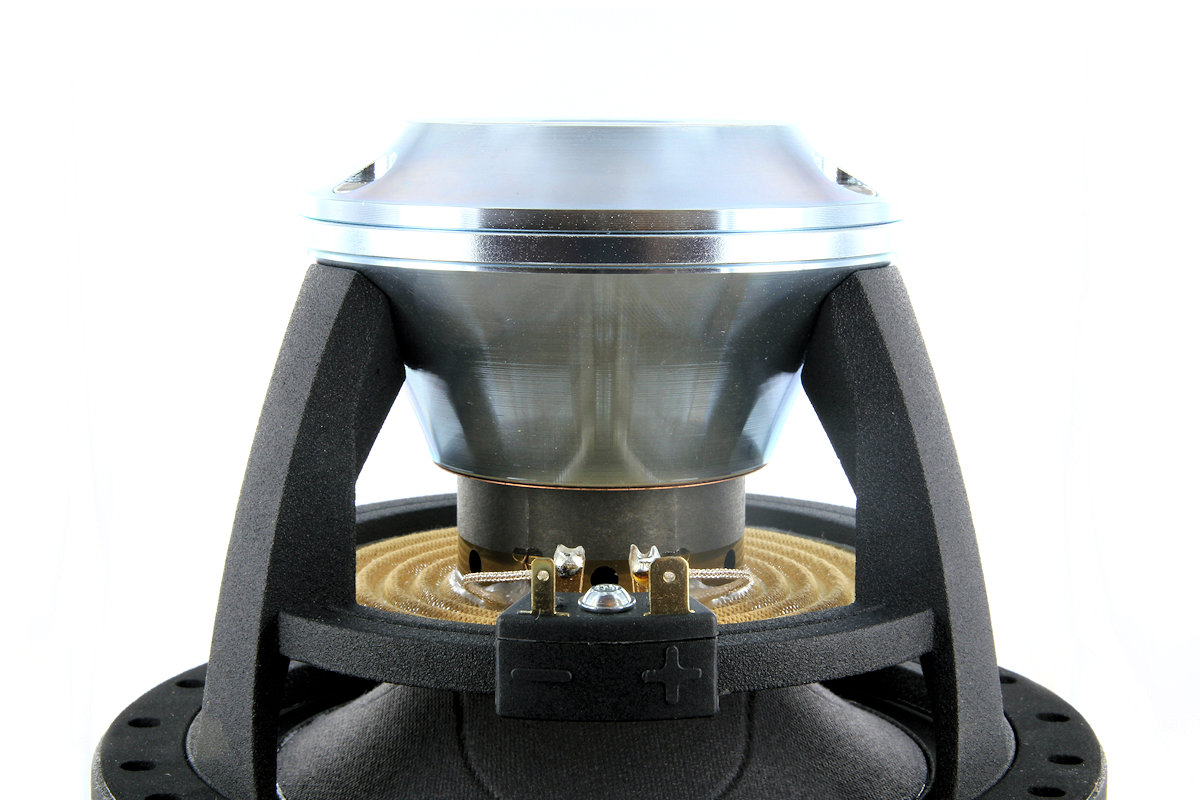

Neodymium motor
Underhung voice coil
long excursion
Specifications
power handling (continuous/programme) = 80/150 W
frequency range = 30-3500 Hz
resonance frequency fs = 35 Hz
impedance R = 8 Ohm
sound pressure level SPL = 83,4 dB (2,83V; 1m)
DC resistance Re = 5,9 Ohm
force factor BL = 7,5 N/A
voice coil inductance L = 0,41 mH
effective piston radiating area Sd = 92 cm2
effective mechanical mass incl. air load mms = 12,3 g
equivalent volume of compliance Vas = 19,9 l
total Q factor Qts = 0,26 (Qms=3,37, Qes=0,28)
voice coil diameter = 42 mm
maximum peak linear excursion vibration xlin = +/- 9 mm
