Wavecor WF152BD08

Wavecor WF152BD08 Paper/Glass Fiber 8 Ohm

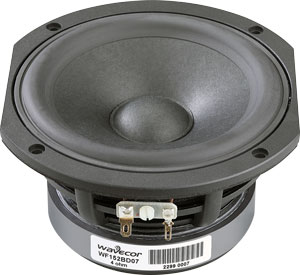

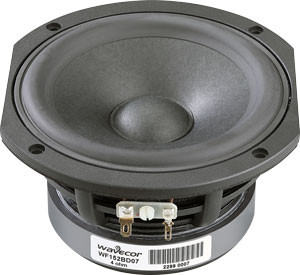

The 6” transducers WF152BD07 (4 ohm) and WF152BD08 (8 ohm) were designed as high performance bass and midrange units for very compact monitors and high-end hi-fi speakers.

FEATURES

• Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
• Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
• Cone made of a new paper/glass fiber mix with improved consistency and stability
• Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
• Vented voice coil former for reduced distortion and compression
• Vented center pole with dual flares for reduced noise level at large cone excursions
• Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
• Large motor with 1¼” voice coil diameter for better control and power handling
• Built-in alu field-stabilizing ring for reduced distortion at high levels
• Low-loss suspension (high Qm) for better reproduction of details and dynamics
• Black motor parts for better heat transfer to the surrounding air
• Conex spider for better durability under extreme conditions
• Gold plated terminals to ensure long-term trouble free connection

SPECIFICATIONS

• power handling (continuous/programme) = 70 W
• frequency range = 50-3500 Hz
• resonance frequency fs = 46 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 87 dB (2,83V; 1m)
• DC resistance Re = 6,3 Ohm
• force factor BL = 8 N/A
• voice coil inductance L = 0,19 mH
• effective piston radiating area Sd = 93 cm²
• effective mechanical mass incl. air load mms = 12,8 g
• equivalent volume of compliance Vas = 11,5 l
• total Q factor Qts = 0,34 (Qms=8, Qes=0,36)
• voice coil diameter = 32 mm
• maximum peak linear excursion vibration x_lin = +/- 4,5 mm
• mounting diameter d = 128 mm
• overall diameter d = 152 mm
• mounting depth (not countersunk) t = 80,5 mm
• mass m = 1,44 kg
