Dayton Audio RS150P-8A

€72.45 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

Order number: da-rs150p-8a

RS150P-8A 6" Reference Paper Woofer 8 Ohm Dayton Audio Reference Series paper cone... more

Close menu

Product information "Dayton Audio RS150P-8A"

Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.

Product Highlights

Now with improved frequency response for easier crossover integration
Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
Perfect for use as a woofer, midwoofer, or dedicated midrange driver
88.7 dB sensitivity and 4 mm of excursion

Specifications

Power Handling (RMS) 40 watts
Power Handling (max) 65 watts

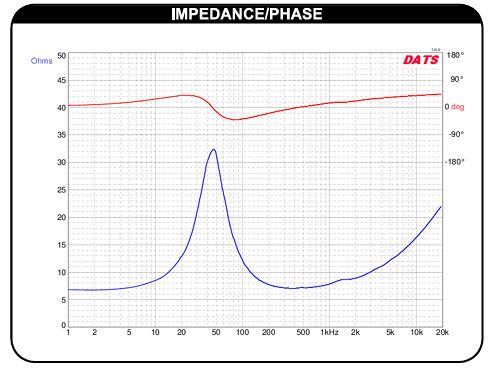

Impedance (Z) 8 ohms
Sensitivity (SPL at 1m / 2.83V) 88.7 dB

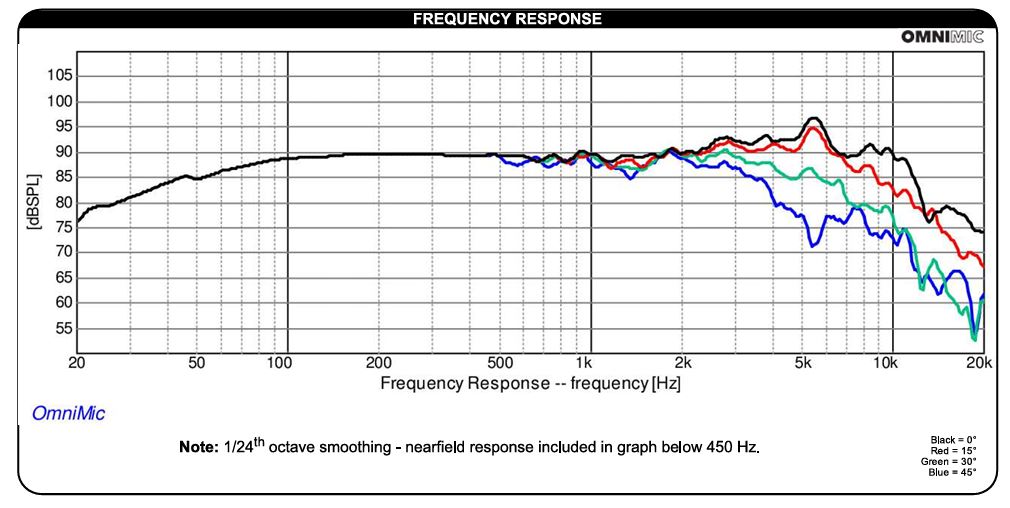

Frequency Response 49 - 10,000 Hz
Voice Coil Diameter 25 mm
DC Resistance (Re) 6.7 ohms
Voice Coil Inductance (Le) 0.65 mH @ 1 kHz
Resonant Frequency (Fs) 47.1 Hz
Mechanical Q (Qms) 1.66
Electromagnetic Q (Qes) 0.43
Total Q (Qts) 0.34
Diaphragm Mass Inc. Airload (Mms) 6.9g
Mechanical Compliance of Suspension (Cms) 1.65 mm/N
Surface Area of Cone (Sd) 85.0 cm²
Volume of Displacement (Vd) 34.0 cm³
BL Product (BL) 5.6 Tm
Compliance Equivalent Volume (Vas) 16.7 liters
Maximum Linear Excursion (Xmax) 4 mm

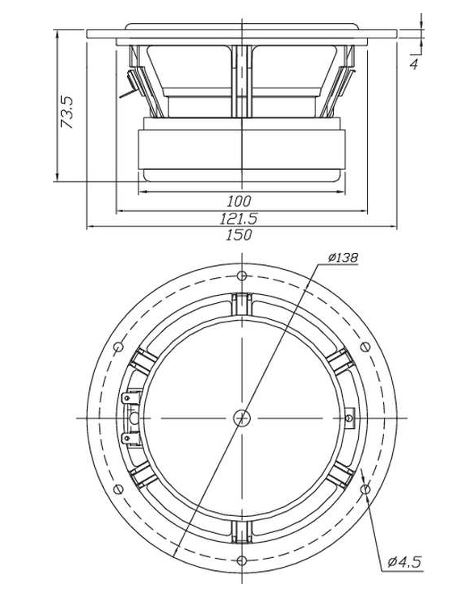

Overall Outside Diameter 150 mm
Overall Depth 73.5 mm
Baffle Cutout Diameter 121.5 mm
