RS150P-4A 6" Reference Paper Woofer 4 Ohm Dayton Audio Reference Series paper cone... more
Product information "Dayton Audio RS150P-4A"

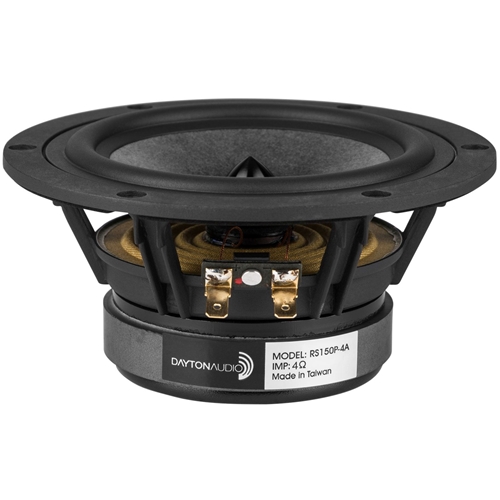

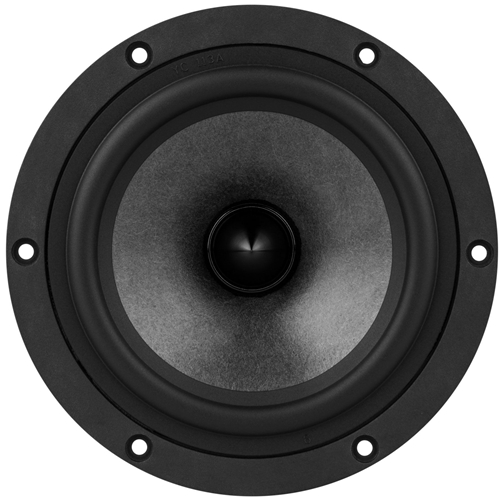

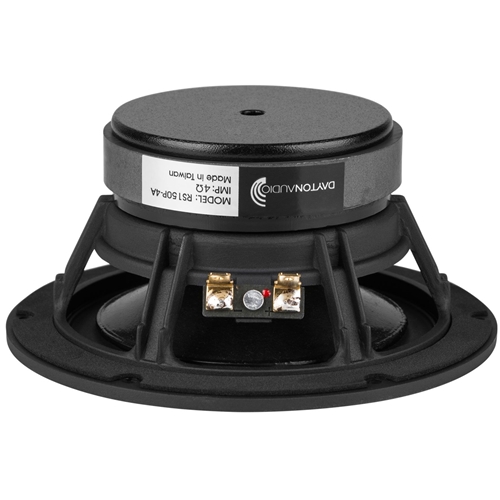

RS150P-4A 6" Reference Paper Woofer 4 Ohm
Dayton Audio Reference Series paper cone drivers combine class-leading low distortion performance with the use of a proprietary cone blend. Now with a flatter frequency response and smoother high frequency roll-off allowing for extended bandwidth and easier crossover integration.
Product Highlights
- Now with improved frequency response for easier crossover integration
- Three-part paper composite diaphragm featuring paper, Kevlar, and glass fibers
- Low-distortion motor, 6-hole cast frame, rubber surround, and solid aluminum phase plug
- Perfect for use as a woofer, midwoofer, or dedicated midrange driver
- 90.3 dB sensitivity and 4.4 mm of excursion
Specifications
- Power Handling (RMS) 40 watts
- Power Handling (max) 65 watts

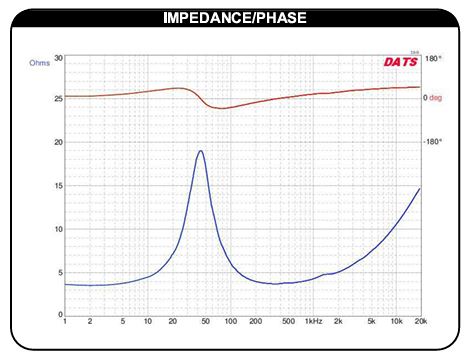

- Impedance (Z) 4 ohms
- Sensitivity (SPL at 1m / 2.83V) 90.3 dB

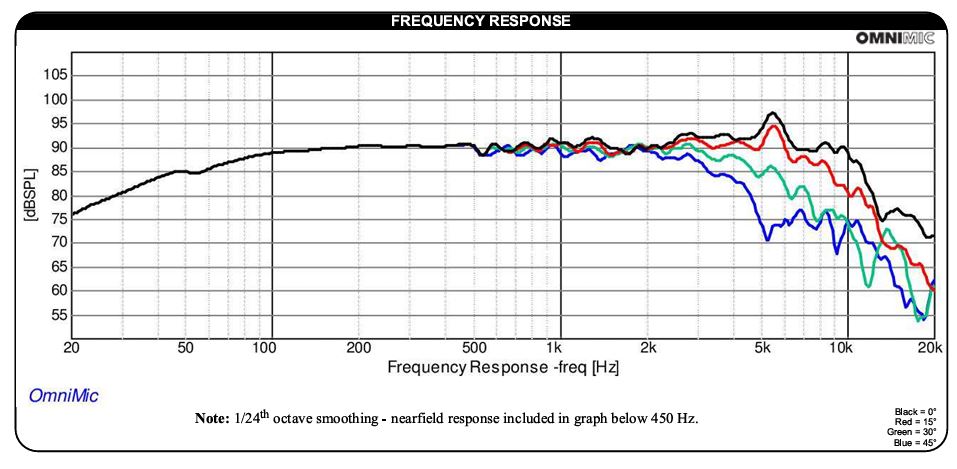

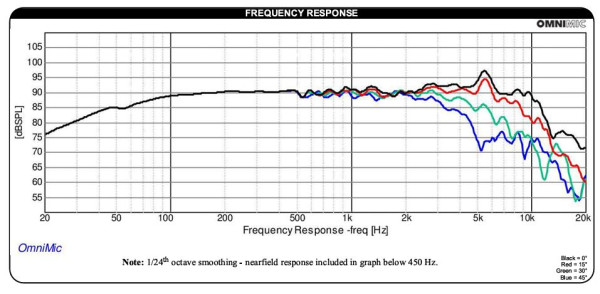

- Frequency Response 45 - 10,000 Hz
- Voice Coil Diameter 25 mm
- DC Resistance (Re) 3.5 ohms
- Voice Coil Inductance (Le) 0.39 mH @ 1 kHz
- Resonant Frequency (Fs) 43.7 Hz
- Mechanical Q (Qms) 1.85
- Electromagnetic Q (Qes) 0.42
- Total Q (Qts) 0.34
- Diaphragm Mass Inc. Airload (Mms) 8.6g
- Mechanical Compliance of Suspension (Cms) 1.54 mm/N
- Surface Area of Cone (Sd) 85.0 cm²
- Volume of Displacement (Vd) 37.4 cm³
- BL Product (BL) 4.4 Tm
- Compliance Equivalent Volume (Vas) 15.7 liters
- Maximum Linear Excursion (Xmax) 4.4 mm

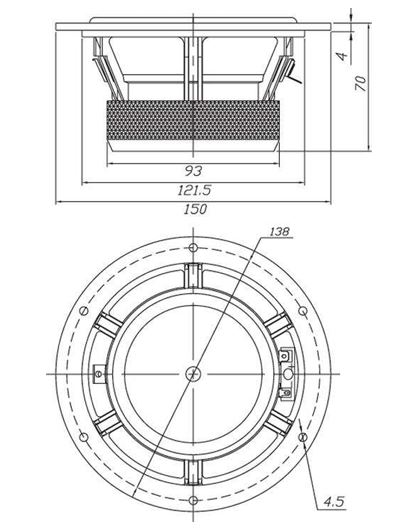

- Overall Outside Diameter 150 mm
- Overall Depth 73.5 mm
- Baffle Cutout Diameter 121.5 mm
