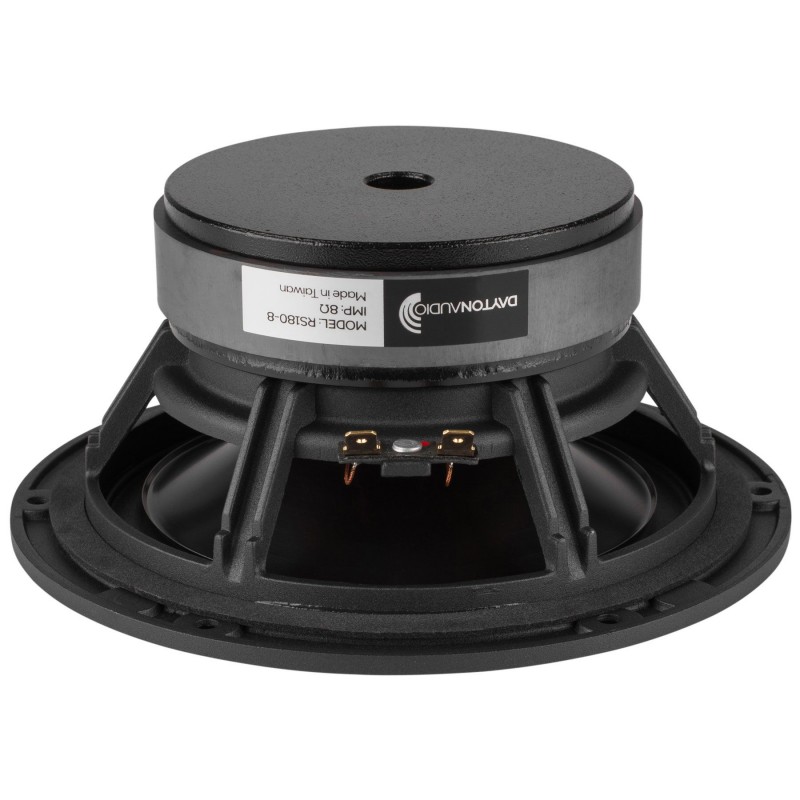

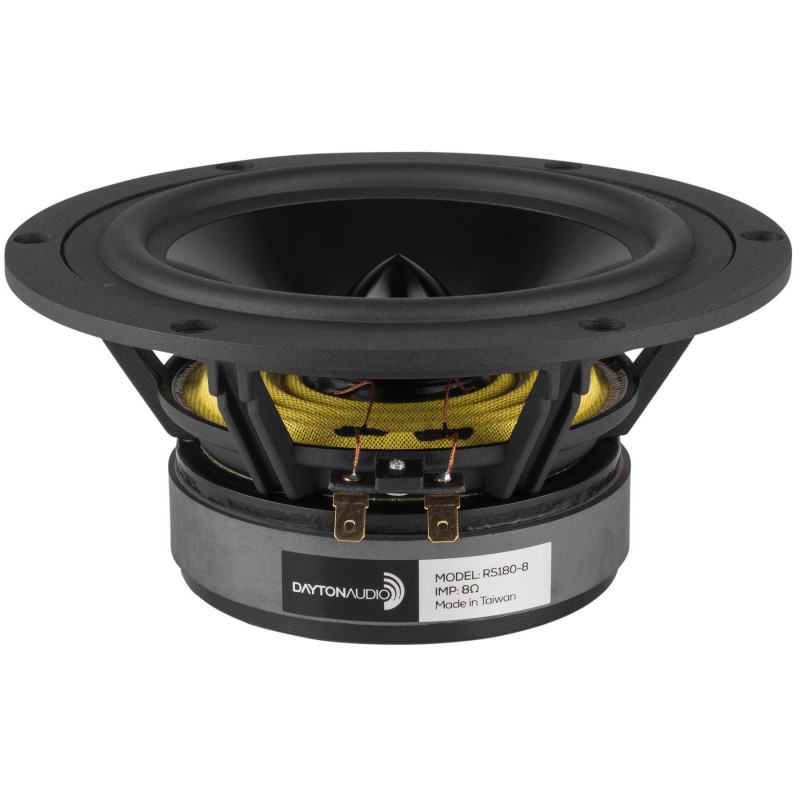

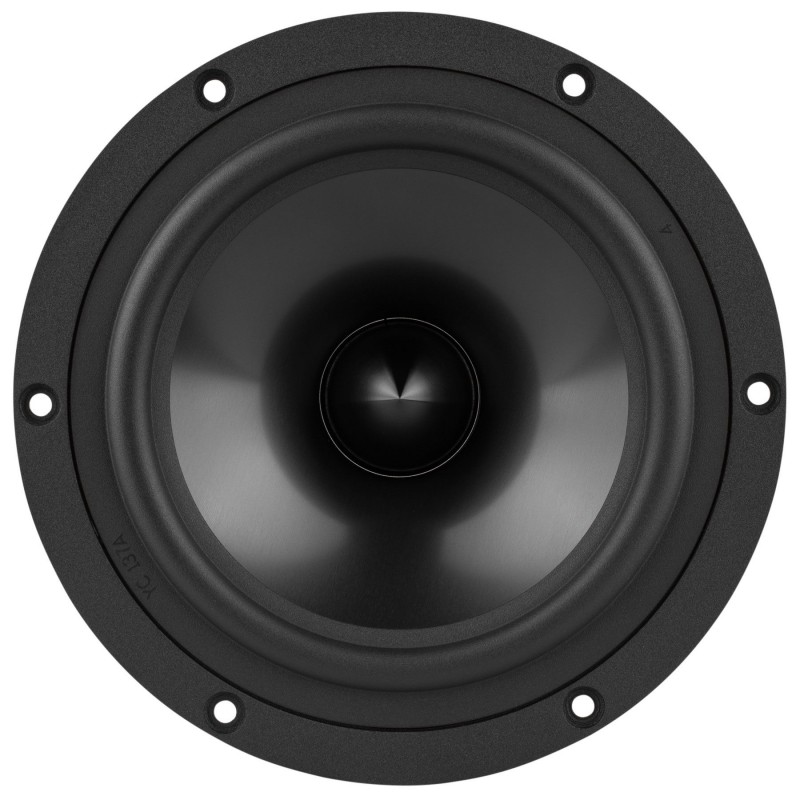

Dayton Audio RS180-8

€100.04 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • da-rs180-8
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker... more
Product information "Dayton Audio RS180-8"
The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold spring terminals.



Specifications

Impedance
8 ohms

Re
6.4 ohms

Le
0.73 mH @ 1 kHz

Fs
35.7 Hz

Qms
1.22

Qes
0.42

Qts
0.31

Mms
17.9g

Cms
1.12 mm/N

Sd
124.7 cm²

Vd
74.8 cm³

BL
7.82 Tm

Vas
24.4 liters

Xmax
6.0 mm

VC Diameter
38 mm

SPL
87.1 dB @ 2.83V/1m

RMS Power Handling
60 watts

Usable Frequency Range (Hz)
39 - 3,600 Hz
