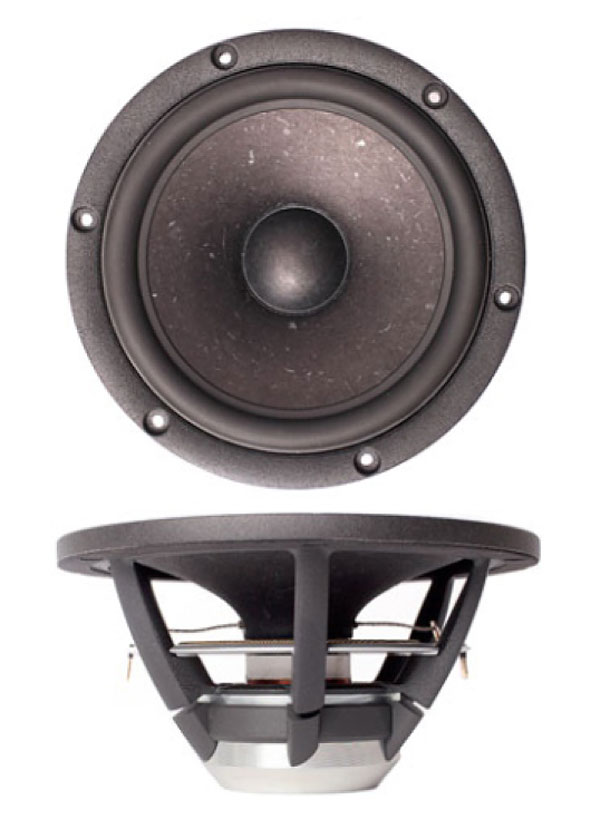

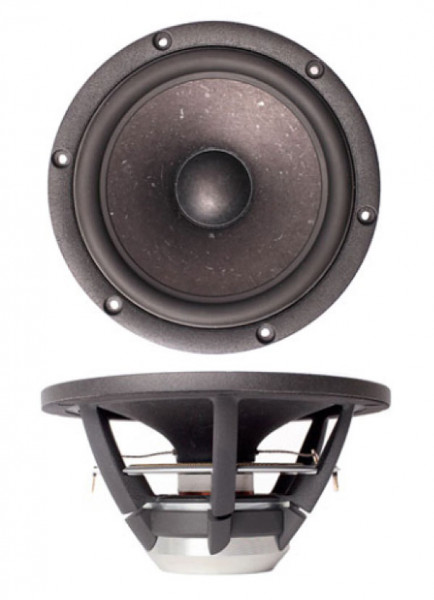

SB Acoustics SATORI MW16P-4

SB-Acoustics 6 1/2'' SATORI MW16P-4

• Vented aerodynamic cast aluminum chassis for optimum strength and low compression
• Proprietary cone material with EGYPTIAN PAPYRUS™ fibres made in-house
• Soft low damping rubber surround for optimum transient response
• Advanced BIMAX spider for improved linearity
• Powerful optimized low distortion neodymium motor system
• Non-conducting fibre glass voice coil former for minimum damping
• Extended copper sleeve on pole piece for low inductance and reduced distortion
• CCAW voice coil for reduced moving mass
• Long life silver lead wires attached 180° apart for improved stability
• Vented pole piece for reduced compression
• High piston to chassis diameter ratio
• Gasket and bolt hole protrusions for reduced coupling to speaker cabinet

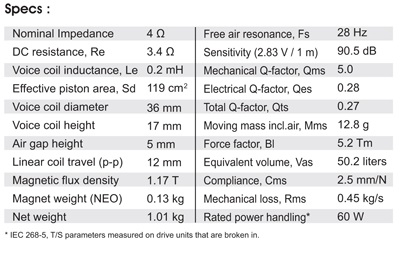

Specifications

• power handling (continuous/programme) = 60 W
• resonance frequency fs = 28 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 90,5 dB (2,83V; 1m)
• DC resistance Re = 3,4 Ohm
• force factor BL = 5,2 N/A
• voice coil inductance L = 0,2 mH
• effective piston radiating area Sd = 119 cm²
• effective mechanical mass incl. air load mms = 12,4 g
• equivalent volume of compliance Vas = 50,2 l
• total Q factor Qts = 0,27 (Qms=5,0, Qes=0,28)
• voice coil diameter = 36 mm

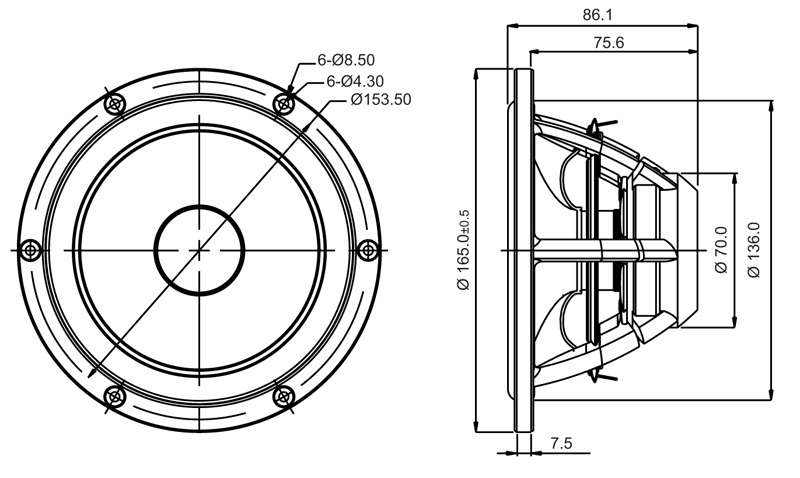

• mounting diameter d = 136 mm
• overall diameter d = 165 mm
• mounting depth (not countersunk) t = 75,57 mm
