With the Scanspeak Ellipticor 18WE/8542T00 a long tradition of circular motor structures and their inherent breakup behavior has been broken since one of its key features is an elliptical voice coil and magnet gap. In combination with the powerful SD AirCirc magnet system the 18WE has high sensitivity, very low distortion, and has an extremely fast response to transients. Above all a TRUE TO LIVE sound which makes 18WE/8542T00 one of the very best midwoofers on the market!
Specifications
power handling (continuous/programme) = 50/100 W

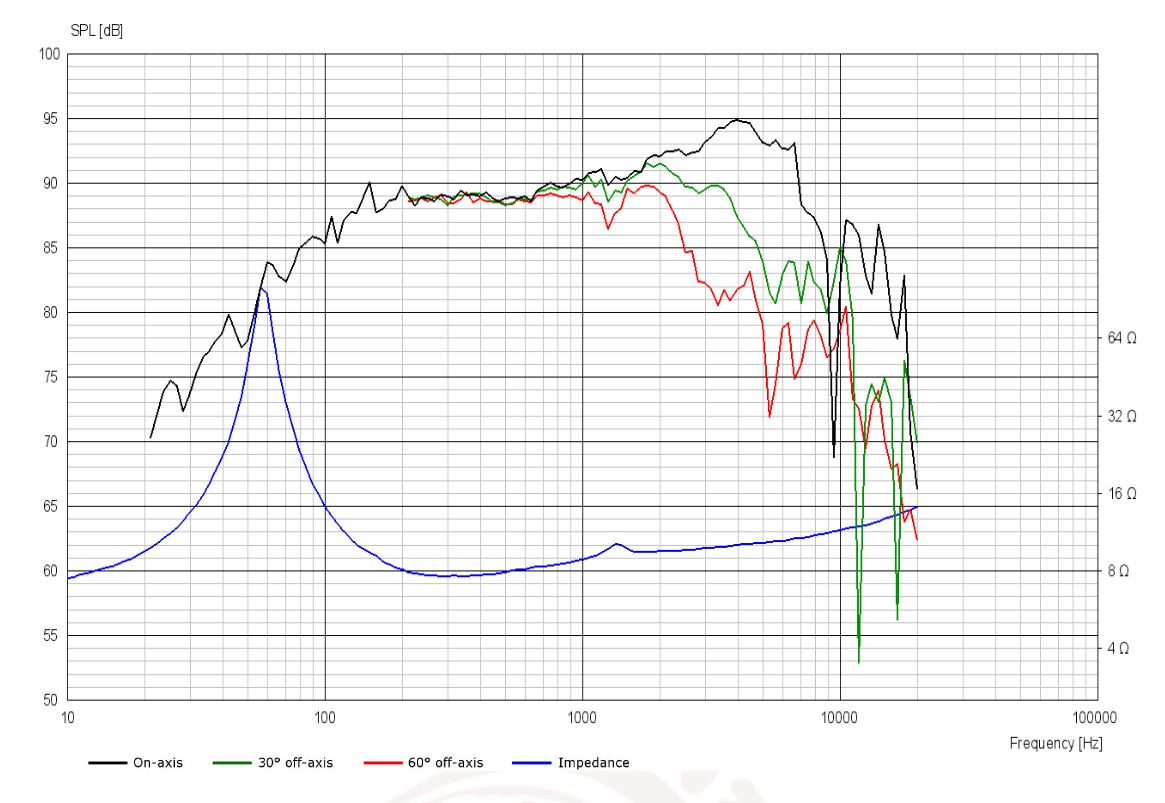

frequency range = 50-3000 Hz
resonance frequency fs = 50 Hz
impedance R = 8 Ohm
sound pressure level SPL = 91 dB (2,83V; 1m)
DC resistance Re = 6,3 Ohm
force factor BL = 9,7 N/A
voice coil inductance L = 0,14 mH
effective piston radiating area Sd = 133 cm2
effective mechanical mass incl. air load mms = 16 g
equivalent volume of compliance Vas = 16 l
total Q factor Qts = 0,32 (Qms=5,01, Qes=0,34)
voice coil diameter = 35/45 mm
maximum peak linear excursion vibration xlin = +/- 7,2 mm
