SB Acoustics SATORI MW16TX-8

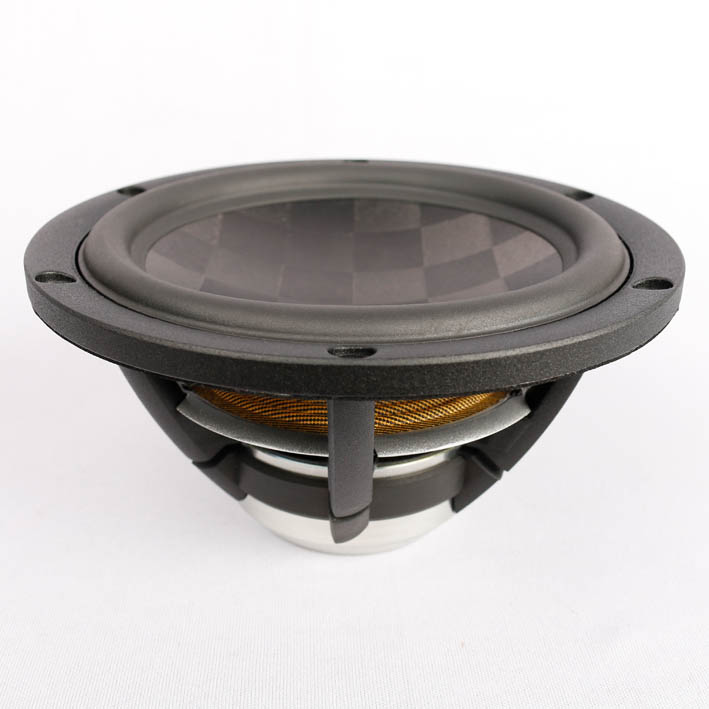

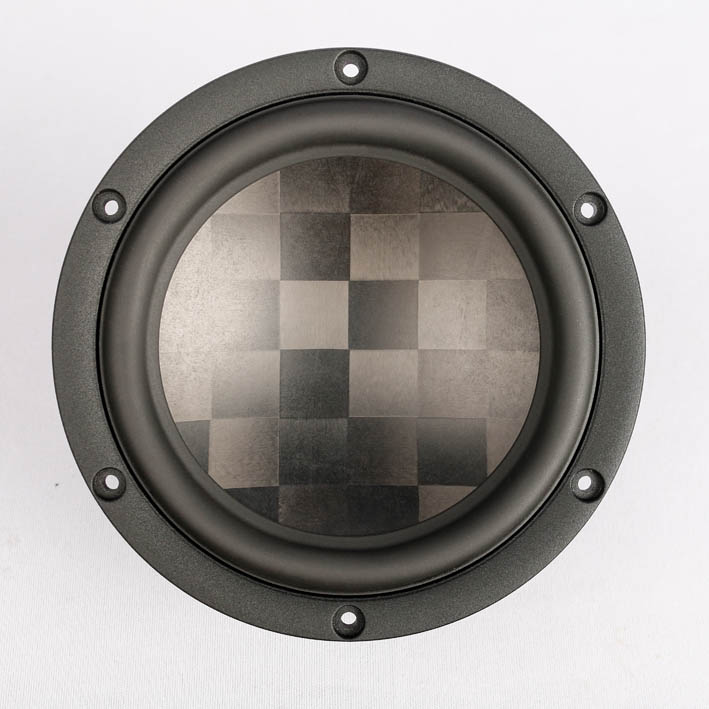

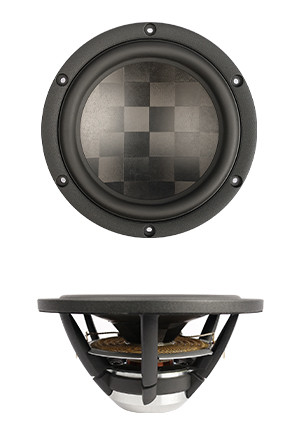

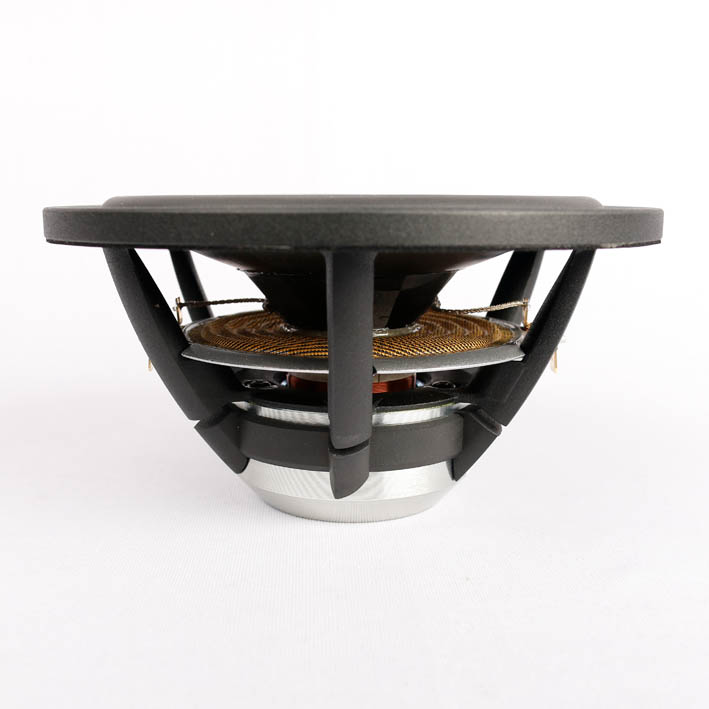

SB-Acoustics 6 1/2'' SATORI MW16TX-8

• Advanced TeXtreme® cone
• Vented aerodynamic cast aluminium chassis
• Soft low damping rubber surround
• Advanced BIMAX spider
• Powerful optimized low distortion neodymium motor system
• Extended copper sleeve on pole piece
• Non-conducting fiberglass voice coil former
• Vented pole piece and voice coil
• Light weight CCAW voice coil
• Long life silver lead wires

Specifications

• Nominal Impedance 8 Ω
• DC resistance, Re 6.2 Ω
• Voice coil inductance, Le 0.2 mH
• Effective piston area, Sd 119 cm²
• Voice coil diameter 36 mm
• Voice coil height 17 mm
• Air gap height 5 mm
• Linear coil travel (p-p) 12 mm
• Magnetic flux density 1.17 T
• Magnet weight 0.13 kg
• Net weight 1.01 kg
• Free air resonance, Fs 29.3 Hz
• Sensitivity (2.83V/1m) 87.5 dB
• Mechanical Q-factor, Qms 4.7
• Electrical Q-factor, Qes 0.35
• Total Q-factor, Qts 0.33
• Moving mass incl. air,Mms 12.3 g
• Force factor, Bl 6.3 Tm
• Equivalent volume, Vas 48 liters
• Compliance, Cms 2.4 mm/N
• Mechanical loss, Rms 0.48 kg/s
• Rated power handling* 60 W
