Dayton Audio DSA175-8

€64.95 *

Prices incl. VAT plus shipping costs

Delivery time 7 Workdays

  • da-dsa175-8
DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer 8 Ohm   Although its true that... more
Product information "Dayton Audio DSA175-8"

DSA175-8 6-1/2" Designer Series Aluminum Cone Woofer 8 Ohm



Although its true that the Dayton Audio Designer Series DSA175-8 is a nice looking and well thought-out 6-1/2" woofer, its ability to handle full rated power down to 39 Hz without exceeding Xmax is very impressive!

Product Highlights

  • Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
  • Low distortion motor system with copper shorting ring

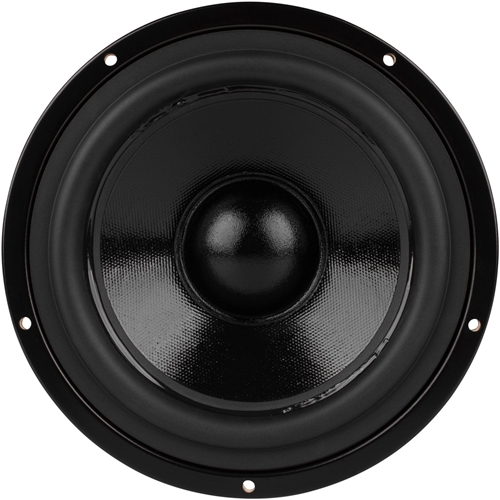

  • Black anodized aluminum cone, half roll rubber surround for durability and accurate reproduction
  • Optimized to yield the smallest possible box volume and lowest 3 dB down point
  • Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
  • Vented pole piece for minimized power compression and maximized reliability
  • Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators



Specifications

  • Power Handling (RMS) 70 watts
  • Power Handling (max) 140 watts
  • Impedance (Z) 8 ohms
  • Sensitivity (SPL at 1m / 2.83V) 88.1 dB

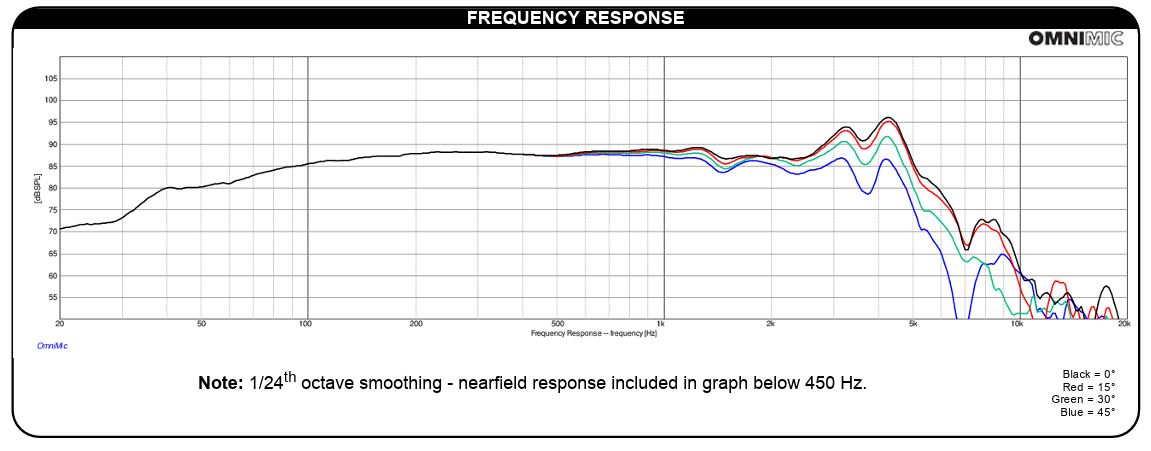

  • Frequency Response 38 - 7,500 Hz
  • Voice Coil Diameter 35.5 mm
  • Magnet Weight 33 oz.

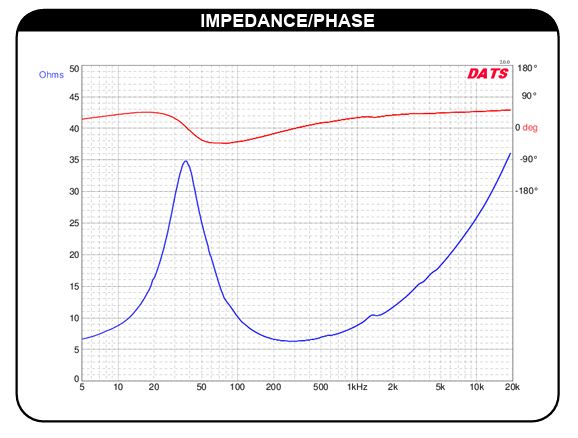

  • DC Resistance (Re) 5.8 ohms
  • Voice Coil Inductance (Le) 0.85 mH @ 1 kHz
  • Resonant Frequency (Fs) 38.4 Hz
  • Mechanical Q (Qms) 1.66
  • Electromagnetic Q (Qes) 0.35
  • Total Q (Qts) 0.29
  • Diaphragm Mass Inc. Airload (Mms) 24.2g
  • Mechanical Compliance of Suspension (Cms) 0.71 mm/N
  • Surface Area of Cone (Sd) 128.7 cm²
  • Volume of Displacement (Vd) 67.6 cm³
  • BL Product (BL) 9.75 Tm
  • Compliance Equivalent Volume (Vas) 18.7 liters
  • Maximum Linear Excursion (Xmax) 5.3 mm

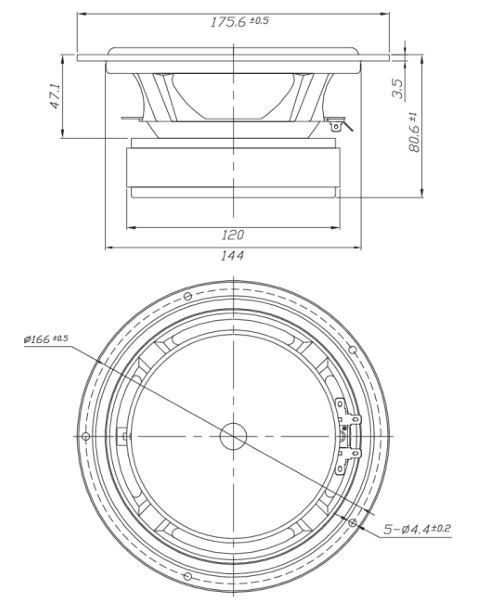

  • Overall Outside Diameter 175.6 mm
  • Overall Depth 80.6 mm
  • Baffle Cutout Diameter 144 mm
