DC160S-8 6-1/2" Classic Shielded Woofer 8 Ohm Choose the Dayton Audio DC160S-8... more
Product information "Dayton Audio DC160S-8"

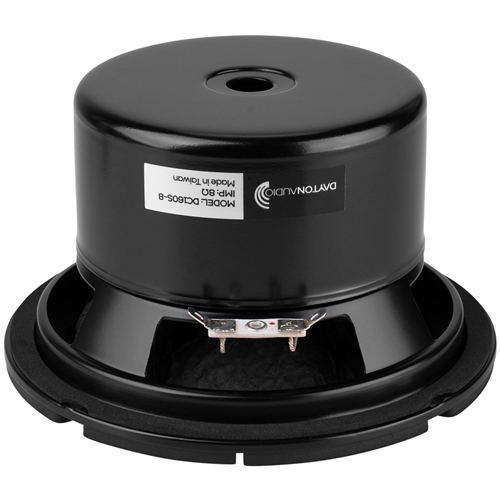

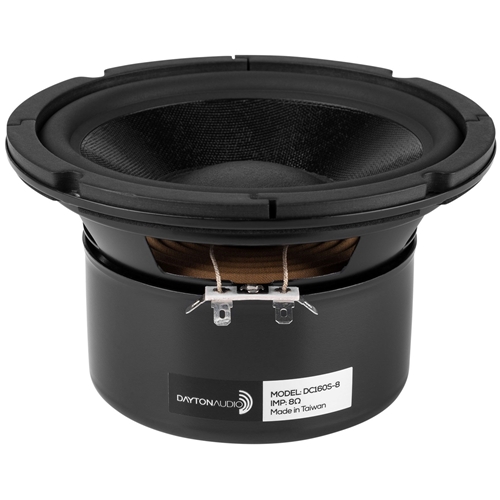

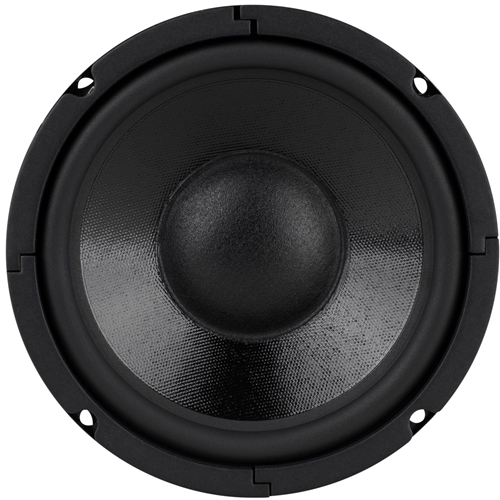

DC160S-8 6-1/2" Classic Shielded Woofer 8 Ohm
Choose the Dayton Audio DC160S-8 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.
Product Highlights
- Great bang-for-the-buck driver can be used as a woofer, midbass, or even as a small subwoofer
- Smooth frequency response up to 2 kHz and great bass response
- Rubber surround, aluminum voice coil, and extended bump plate
- Low 32 Hz free-air resonance
Specifications
- Power Handling (RMS) 50 watts
- Power Handling (max) 100 watts

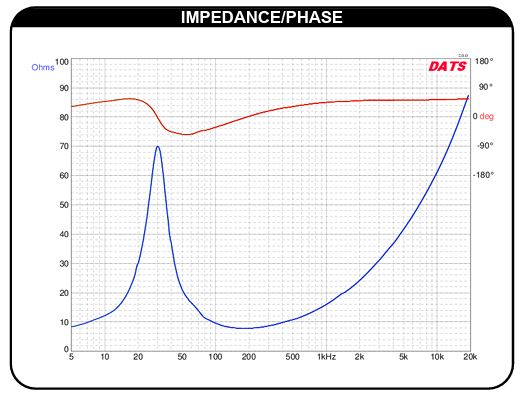

- Impedance (Z) 8 ohms
- Sensitivity (SPL at 1m / 2.83V) 85.3 dB

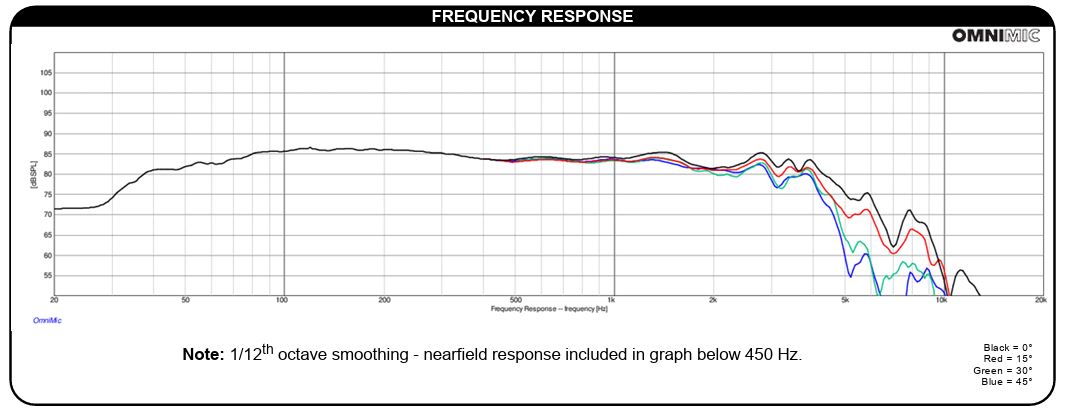

- Frequency Response 33 - 4,000 Hz
- Voice Coil Diameter 35 mm
- Magnet Weight 15 oz.
- DC Resistance (Re) 6.9 ohms
- Voice Coil Inductance (Le) 2.29 mH @ 1 kHz
- Resonant Frequency (Fs) 30.3 Hz
- Mechanical Q (Qms) 3.04
- Electromagnetic Q (Qes) 0.33
- Total Q (Qts) 0.30
- Diaphragm Mass Inc. Airload (Mms) 32.2g
- Mechanical Compliance of Suspension (Cms) 0.86 mm/N
- Surface Area of Cone (Sd) 134.8 cm²
- Volume of Displacement (Vd) 42.5 cm³
- BL Product (BL) 11.3 Tm
- Compliance Equivalent Volume (Vas) 22.5 liters
- Maximum Linear Excursion (Xmax) 3.15 mm

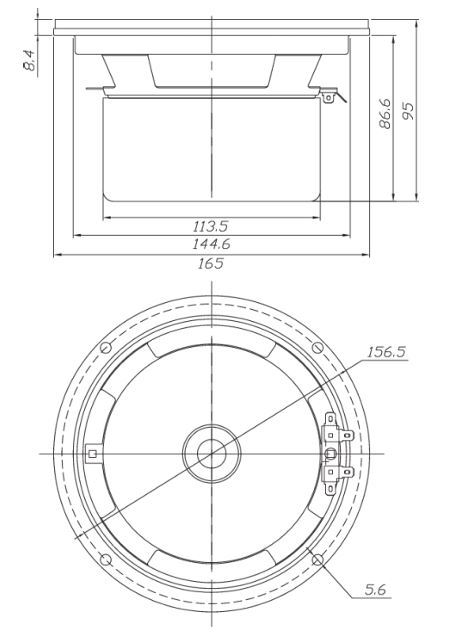

- Overall Outside Diameter 165 mm
- Overall Depth 95 mm
- Baffle Cutout Diameter 144.6 mm
