DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm Choose the Dayton Audio DC160S-4... more
Product information "Dayton Audio DC160S-4"

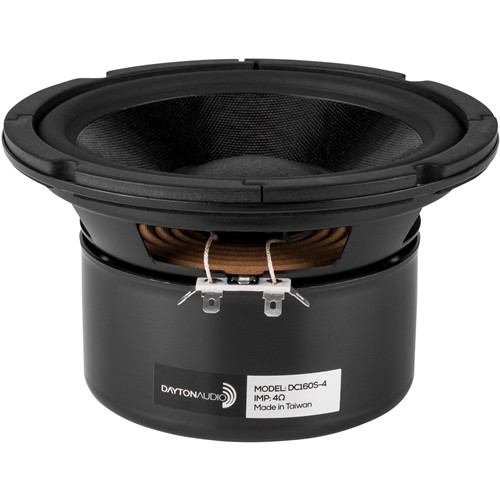

DC160S-4 6-1/2" Classic Shielded Woofer 4 Ohm
Choose the Dayton Audio DC160S-4 Classic Series 6-1/2" shielded woofer for use as a great replacement bookshelf speaker, midbass in 3-way designs, or even as a small subwoofer.
Product Highlights

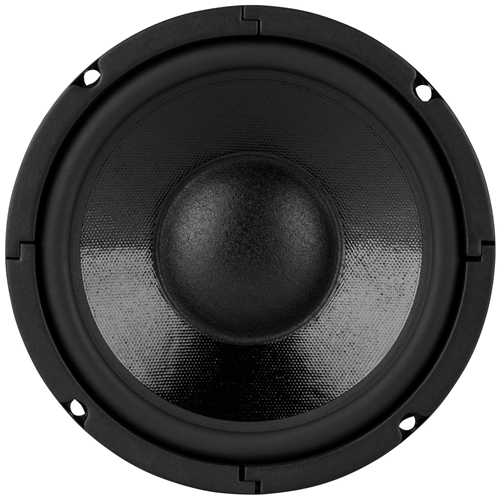

- Treated paper cone provides smooth response and low energy storage

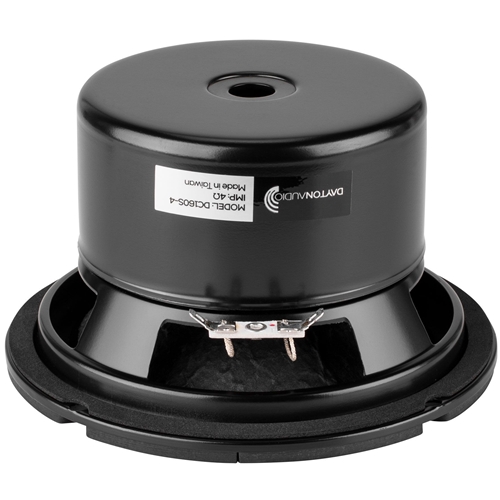

- Aluminum former, vented pole piece, and porous dustcap for high power handling
- Large diameter flat spider and good Xmax for clean bass
Specifications
- Power Handling (RMS) 50 watts
- Power Handling (max) 100 watts

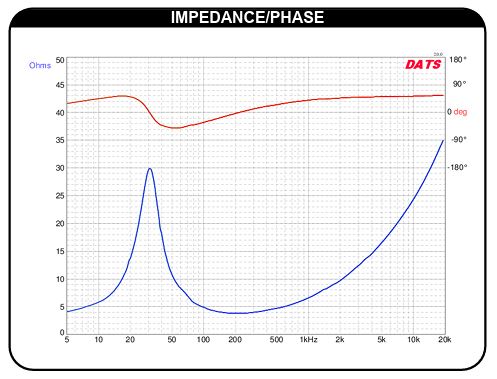

- Impedance (Z) 4 ohms
- Sensitivity (SPL at 1m / 2.83V) 88.5 dB

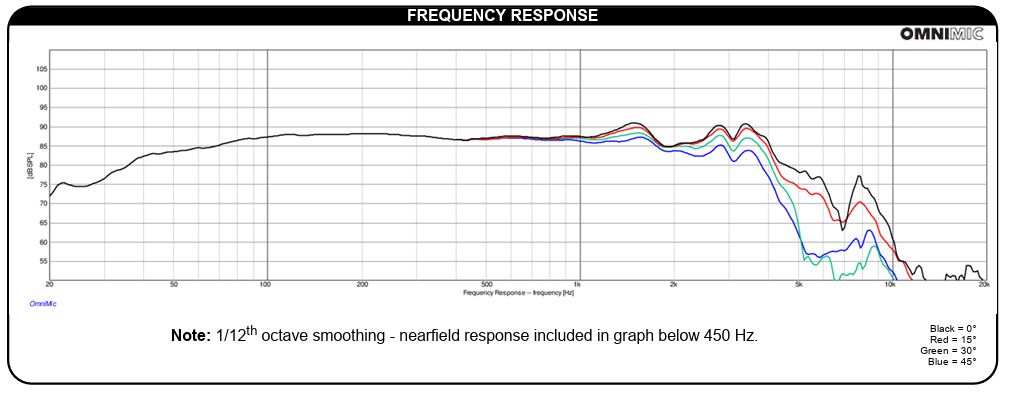

- Frequency Response 33 - 4,000 Hz
- Voice Coil Diameter 35 mm
- DC Resistance (Re) 3.5 ohms
- Voice Coil Inductance (Le) 0.89 mH @ 1 kHz
- Resonant Frequency (Fs) 30.9 Hz
- Mechanical Q (Qms) 2.61
- Electromagnetic Q (Qes) 0.34
- Total Q (Qts) 0.30
- Diaphragm Mass Inc. Airload (Mms) 30g
- Mechanical Compliance of Suspension (Cms) 0.88 mm/N
- Surface Area of Cone (Sd) 136.8 cm²
- Volume of Displacement (Vd) 46.5 cm³
- BL Product (BL) 7.68 Tm
- Compliance Equivalent Volume (Vas) 23.2 liters
- Maximum Linear Excursion (Xmax) 3.4 mm

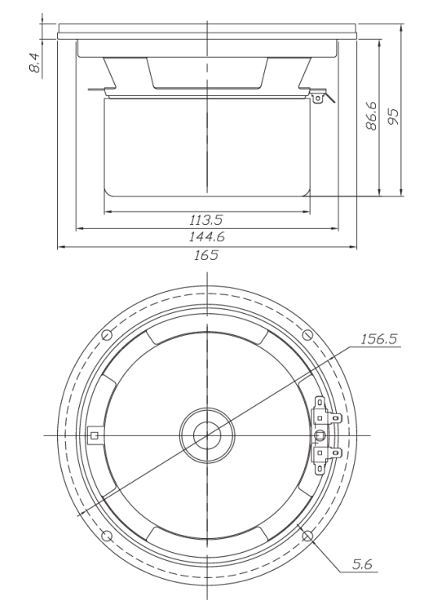

- Overall Outside Diameter 165 mm
- Overall Depth 95 mm
- Baffle Cutout Diameter 144.6 mm
