7“ Bass-Midrange driver for multiple usage, 3-layer Hexacone Sandwich cone,fast and detailed... more
Product information "Eton 7-212/C8/32 Hex"
7“ Bass-Midrange driver for multiple usage, 3-layer Hexacone Sandwich cone,fast and detailed repro-duction, equipped with a solid bass-base,homogeneous uncolored sound performance.
Specifications
- power handling (continuous/programme) = 80 W

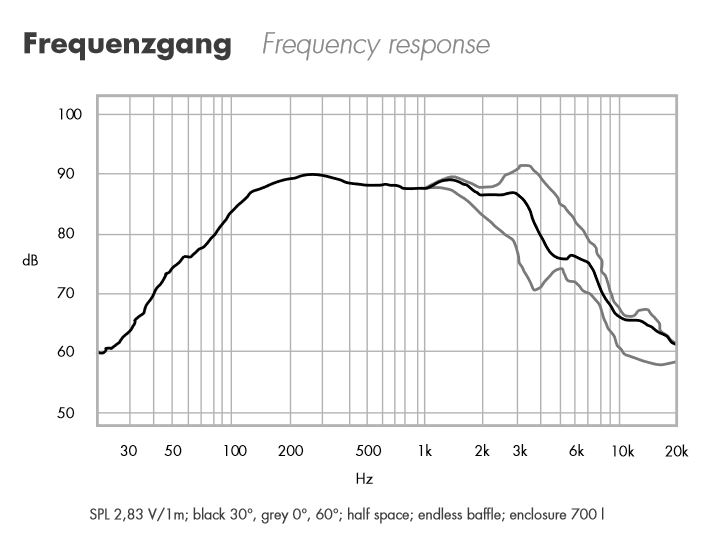

- frequency range = 50-3000 Hz
- resonance frequency fs = 33 Hz

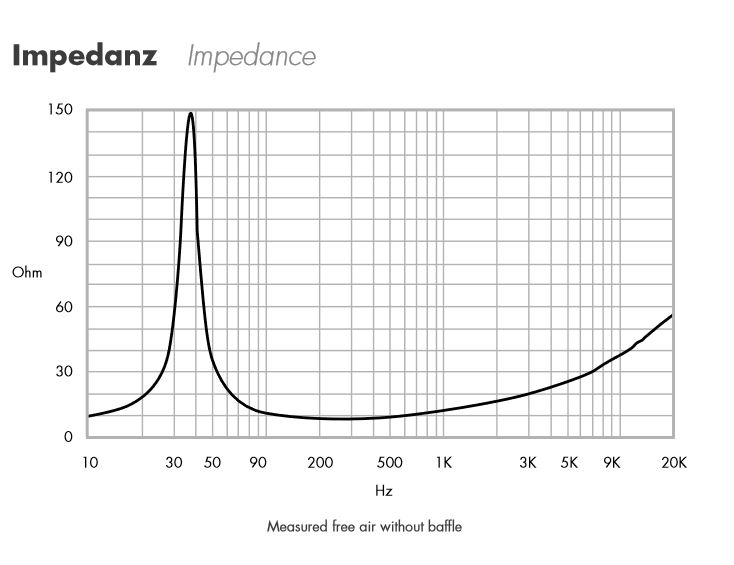

- impedance R = 8 Ohm
- sound pressure level SPL = 89 dB (2,83V; 1m)
- DC resistance Re = 6,6 Ohm
- force factor BL = 9 N/A
- voice coil inductance L = 0,95 mH
- effective piston radiating area Sd = 137 cm2
- effective mechanical mass incl. air load mms = 17,5 g
- equivalent volume of compliance Vas = 28 l
- total Q factor Qts = 0,32 (Qms=5,61, Qes=0,34)
- voice coil diameter = 32 mm
- maximum peak linear excursion vibration xlin = +/- 4,5 mm

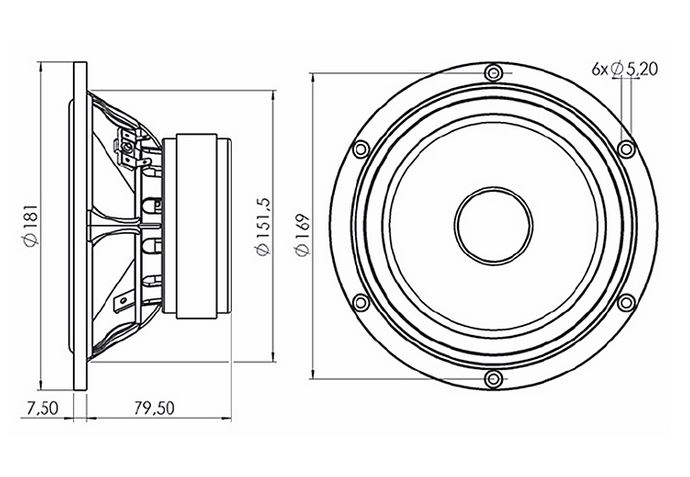

- mounting diameter d = 151,5 mm
- overall diameter d = 181 mm
- mounting depth (not countersunk) t = 79,50 mm
