Wavecor WF182BD16 7" Kevlar/Carbon fiber cone 8 Ohm The 7” transducers WF182BD13... more
Product information "Wavecor WF182BD16"

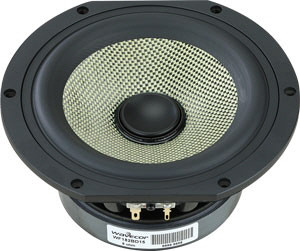

Wavecor WF182BD16 7" Kevlar/Carbon fiber cone 8 Ohm
The 7” transducers WF182BD13 (round, 4 ohm), WF182BD15 (truncated, 4 ohm), WF182BD14 (round, 8 ohm), and WF182BD16 (truncated, 8 ohm) were designed as high performance bass and midrange units for compact monitors and high-end hi-fi speakers.
FEATURES
- New cone of interwoven Kevlar/Carbon fibers, a new reference for the combination of low mass, rigidness, and damping - highly beneficial properties for midrange reproduction

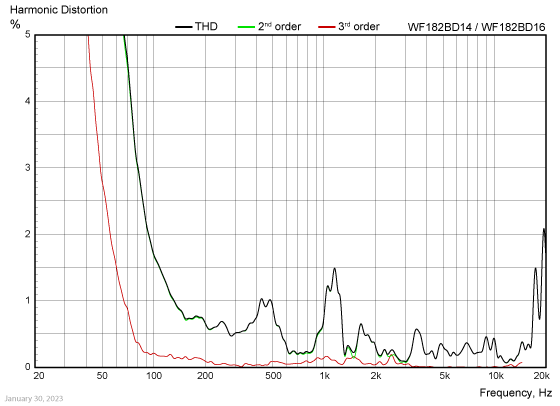

- Balanced Drive motor structure for optimal drive force symmetry resulting in largely reduced even order harmonic distortion
- Vented, inverted center dome for reduced compression
- Copper cap on center pole to reduce voice coil inductance and to minimize variations in voice coil inductance as a function of voice coil position
- Rigid die cast alu chassis with extensive venting for lower air flow speed reducing audible distortion
- Vented voice coil former for reduced distortion and compression
- Heavy-duty black fiber glass voice coil former to reduce mechanical losses resulting in better dynamic performance and low-level details
- Large motor with 1.25” voice coil diameter for better control and power handling
- Built-in alu field-stabilizing ring for reduced distortion at high levels
- Low-loss suspension (high Qm) for better reproduction of details and dynamics
- Black motor parts for better heat transfer to the surrounding air
- Conex spider for better durability under extreme conditions
- Gold plated terminals to ensure long-term trouble free connection
SPECIFICATIONS
- power handling (continuous/programme) = 80 W
- frequency range = 30-7000 Hz

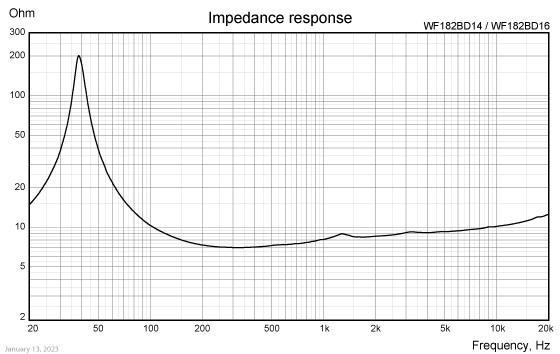

- resonance frequency fs = 37 Hz
- impedance R = 8 Ohm

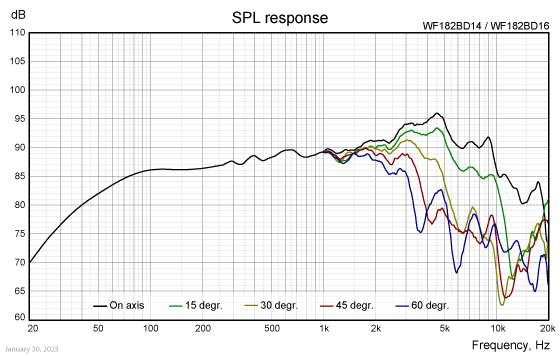

- sound pressure level SPL = 88 dB (2,83V; 1m)
- DC resistance Re = 6,3 Ohm
- force factor BL = 8,5 N/A
- effective piston radiating area Sd = 117 cm2
- effective mechanical mass incl. air load mms = 15,6 g
- equivalent volume of compliance Vas = 23 l
- total Q factor Qts = 0,3 (Qms=10,3, Qes=0,31)
- voice coil diameter = 32 mm
- maximum peak linear excursion vibration xlin = +/- 5,5 mm

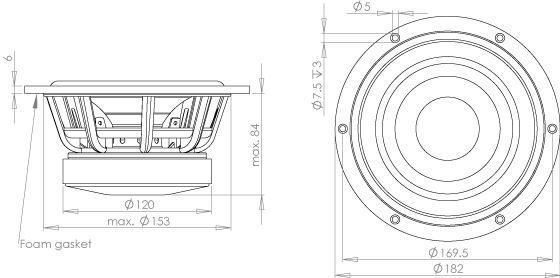

- mounting diameter d = 153 mm
- overall diameter d = 182 mm
- mounting depth (not countersunk) t = 84 mm
- mass m = 2,4 kg
