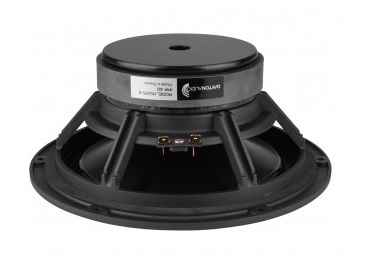

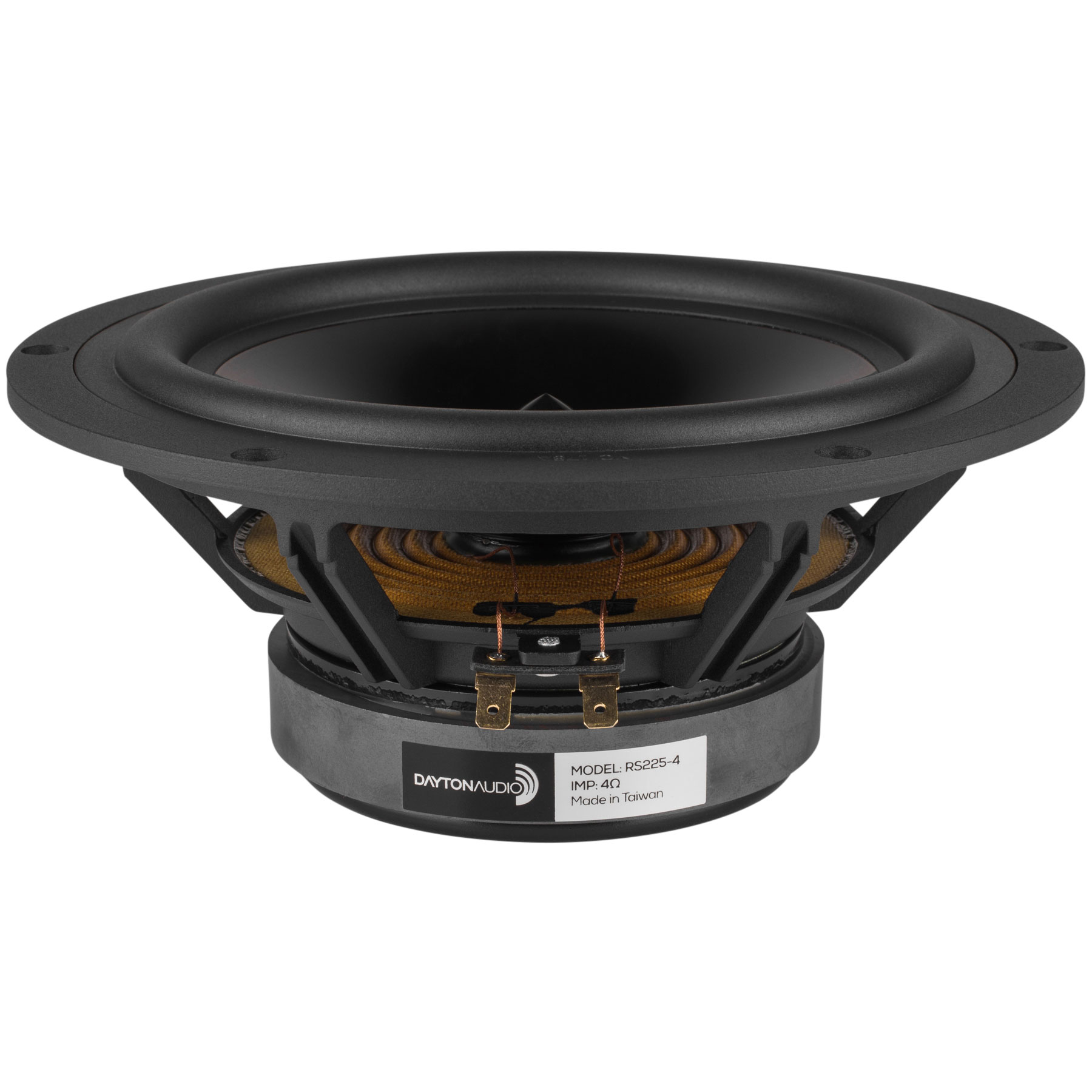

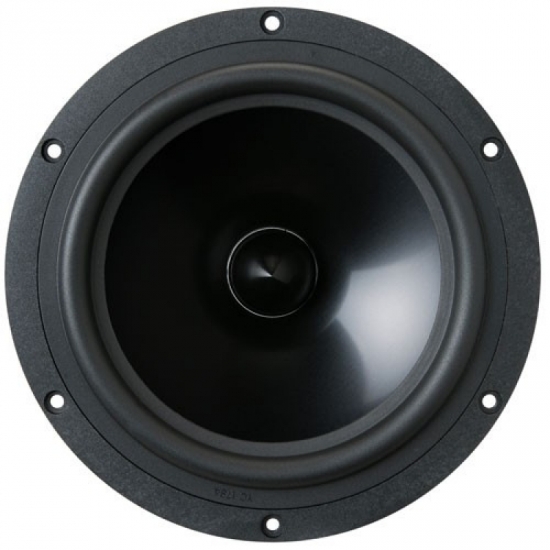

The Dayton Audio Reference Series sets a new standard of value in high-performance loudspeaker drivers. Woofer features a black anodized cone, heavy-duty 6-hole cast frame, low-loss rubber surround, solid aluminum phase plug, rubber magnet boot, and gold spring terminals.
Specifications
power handling (continuous/programme) = 80 W

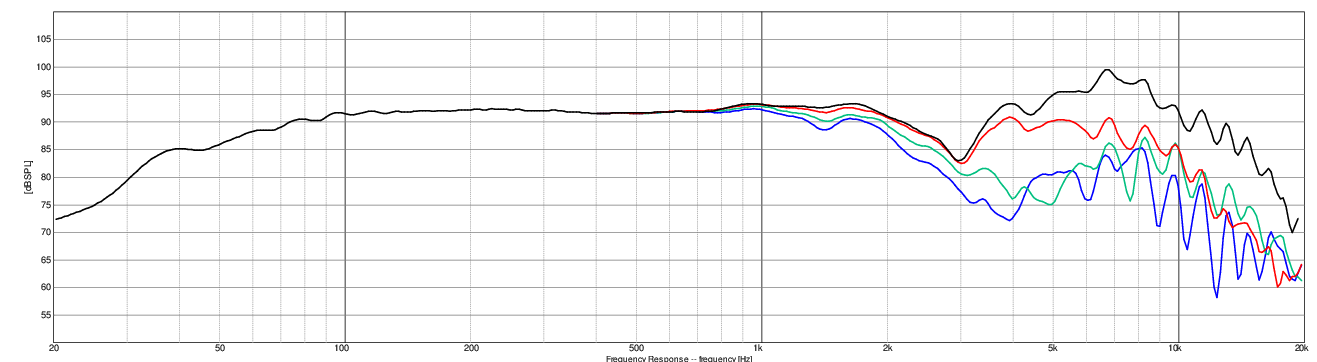

frequency range = 35-2000 Hz
resonance frequency fs = 37,7 Hz

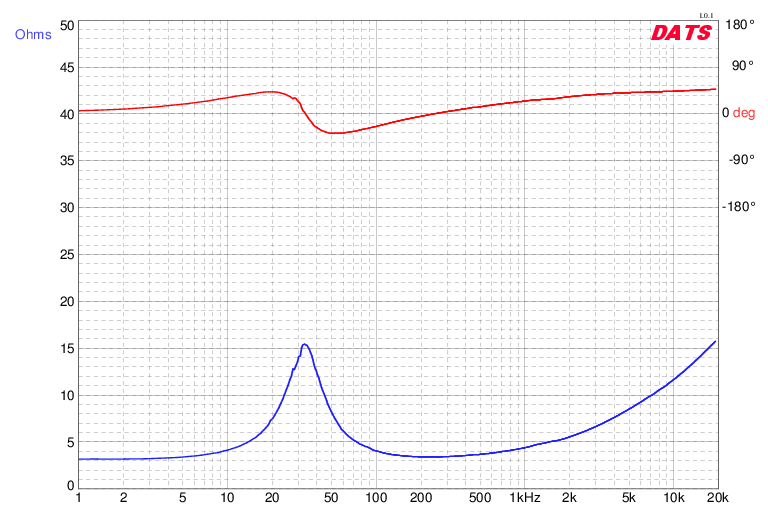

impedance R = 4 Ohm
DC resistance Re = 2,9 Ohm
force factor BL = 6,47 N/A
voice coil inductance L = 0,56 mH
effective piston radiating area Sd = 219 cm2
effective mechanical mass incl. air load mms = 32,02 g
equivalent volume of compliance Vas = 37,5 l
total Q factor Qts = 0,45 (Qms=2,39, Qes=0,56)
voice coil diameter = 38 mm
maximum peak linear excursion vibration xlin = +/- 6 mm
