Dayton Audio RS225-8

Dayton Audio
Preview: Dayton Audio RS225-8 Preview: Dayton Audio RS225-8 back Preview: Dayton Audio RS225-8 front Preview: Dayton Audio RS225-8 frequency chart Preview: Dayton Audio RS225-8 impedance curve Preview: Dayton Audio RS225-8 dimensions

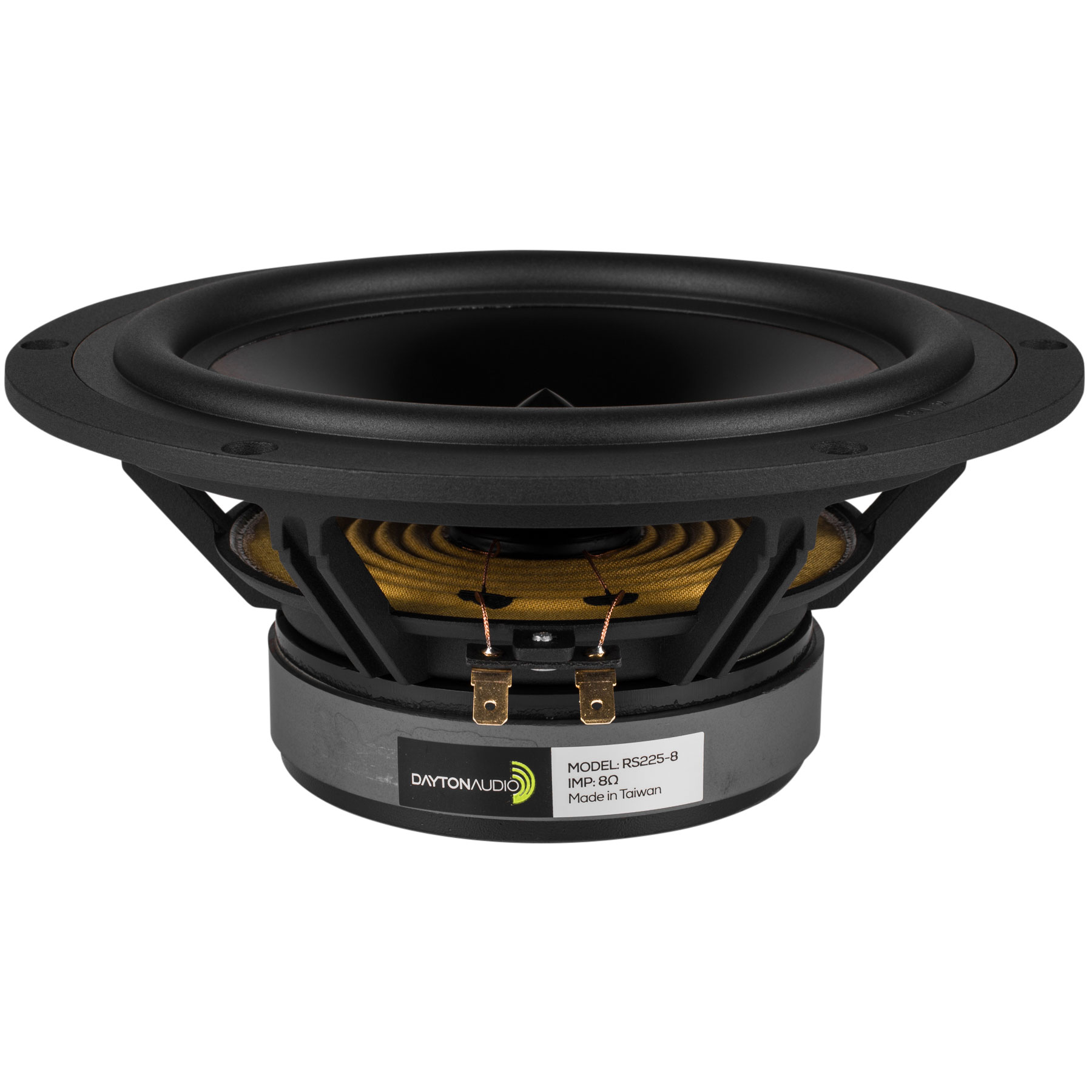

Dayton Audio RS225-8

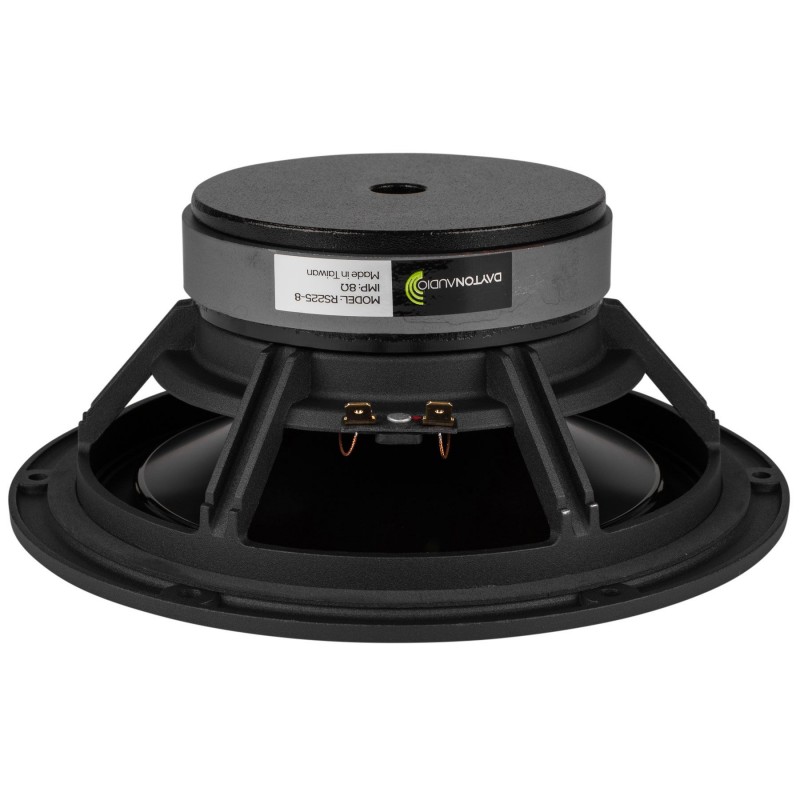

Dayton Audio RS225-8 back

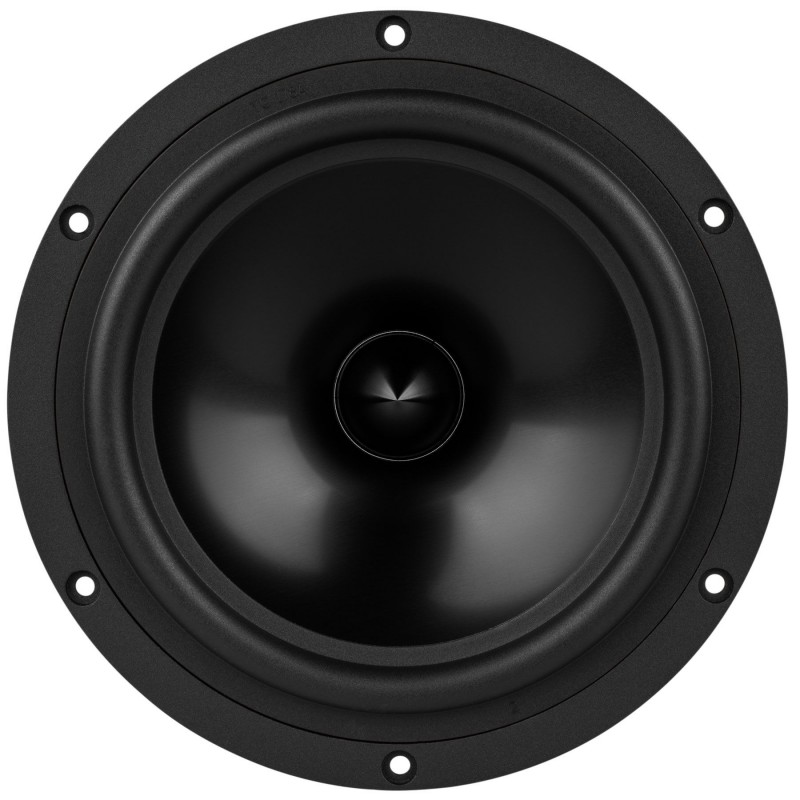

Dayton Audio RS225-8 front

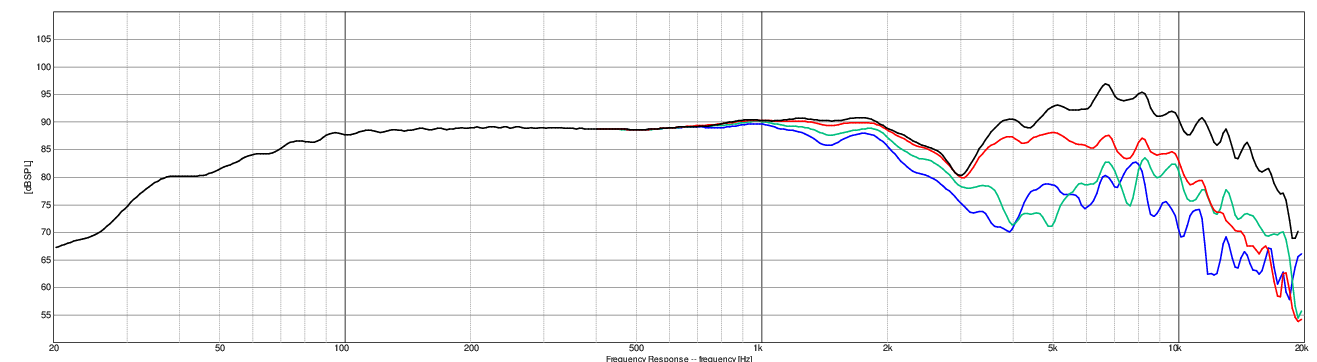

Dayton Audio RS225-8 frequency chart

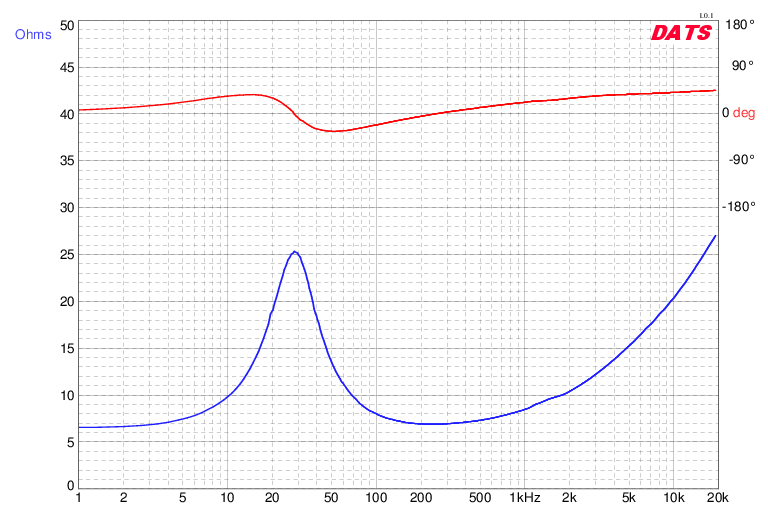

Dayton Audio RS225-8 impedance curve

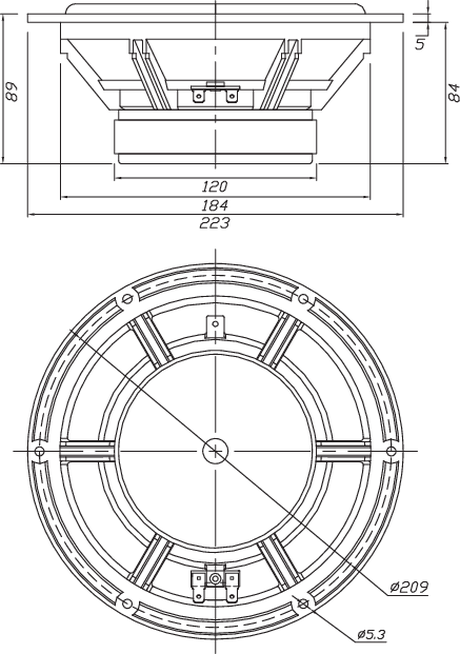

Dayton Audio RS225-8 dimensions

€127.22 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: da-rs225-8
Description Evaluations 0
Description
Dayton Audio Reference Series RS225-8 8" woofers deliver exceptional clarity, detail, and... more
Close menu
Product information "Dayton Audio RS225-8"
Dayton Audio Reference Series RS225-8 8" woofers deliver exceptional clarity, detail, and dynamics—and of course, incredibly low distortion.



Specifications

  • power handling (continuous/programme) = 80 W
  • frequency range = 28-2400 Hz
  • resonance frequency fs = 28,3 Hz
  • impedance R = 8 Ohm
  • sound pressure level SPL = 86,8 dB (2,83V; 1m)
  • DC resistance Re = 6,5 Ohm
  • force factor BL = 9,05 N/A
  • voice coil inductance L = 0,86 mH
  • effective piston radiating area Sd = 213,8 cm2
  • effective mechanical mass incl. air load mms = 35,8 g
  • equivalent volume of compliance Vas = 56,8 l
  • total Q factor Qts = 0,38 (Qms=1,46, Qes=0,51)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 7 mm
  • mounting diameter d = 184 mm
  • overall diameter d = 223 mm
  • mounting depth (not countersunk) t = 89 mm
