Dayton Audio's Designer Series DS215-8 8" woofer combines smooth response, excellent bass... more
Product information "Dayton Audio DS215-8"
Dayton Audio's Designer Series DS215-8 8" woofer combines smooth response, excellent bass performance, and a stylish visual presentation.
Product Highlights
• Cosmetic frame with low profile lip, designed for front mounting—no countersinking required!
• Coated paper cone, half roll rubber surround for durability and accurate reproduction
• Optimized to yield a low 3 dB down point and high potential output in a reasonably sized cabinet

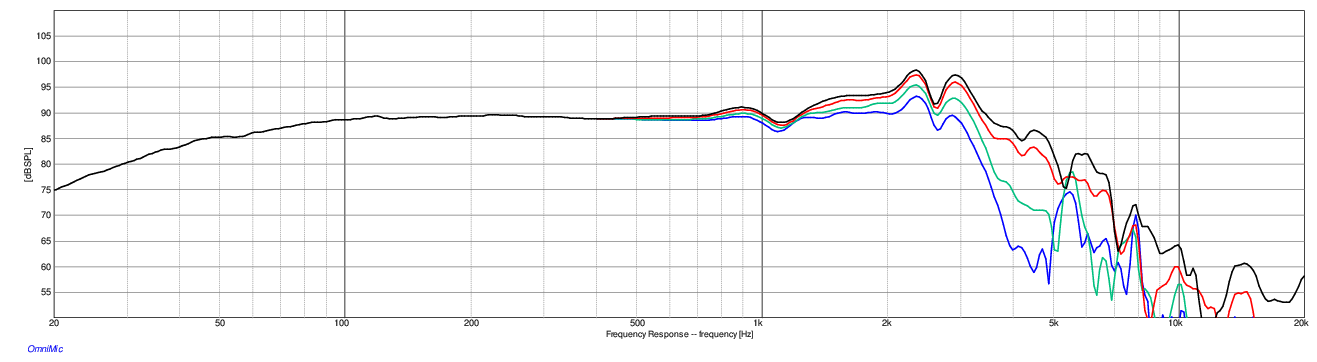

• Smooth frequency response and linear roll-off simplify filter design, guaranteeing good results with off-the-shelf crossovers
• Vented pole piece for minimized power compression and maximized reliability
• Retains the same "family look" as the popular Dayton Audio DVC Series subwoofers and passive radiators
• Generous Xmax capability encourages use of moderate bass boost to tailor the response
Specifications
Impedance
8 ohms
Re
5.8 ohms
Le
1.25 mH @ 1 kHz
Fs
34.3 Hz
Qms
1.75
Qes
0.38
Qts
0.31
Mms
29.7g
Cms
0.72 mm/N
Sd
211.2 cm²
Vd
116.2 cm³
BL
9.89 Tm
Vas
43.1 liters
Xmax
5.5 mm
VC Diameter
38.5 mm
SPL
89.9 dB @ 2.83V/1m
RMS Power Handling
80 watts
Usable Frequency Range (Hz)
35 - 4,000 Hz
