Accuton C220-11-221

Accuton
Preview: Accuton C220-11-221 Preview: Accuton C220-11-221 Frequency chart Preview: Accuton C220-11-221 Impedance curve Preview: Accuton C220-11-221 Distortion

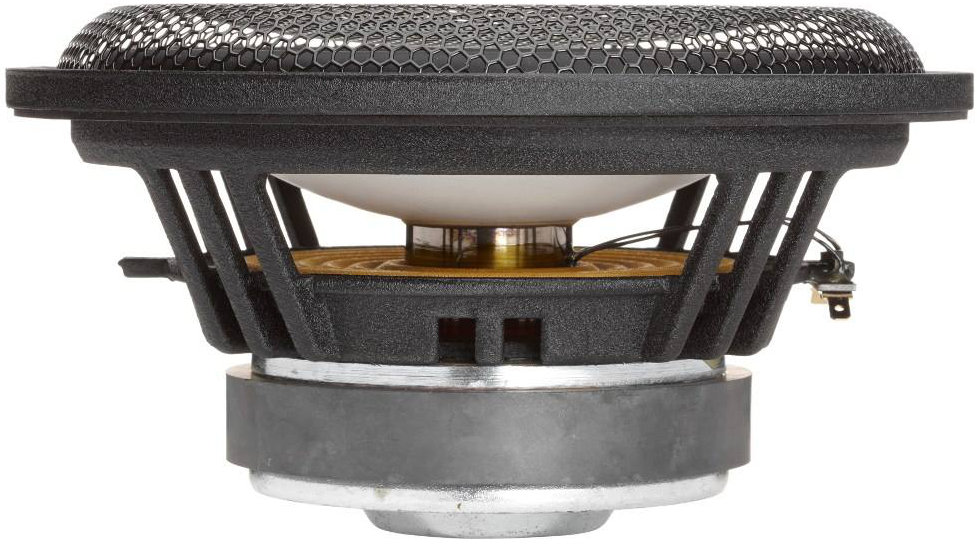

Accuton C220-11-221

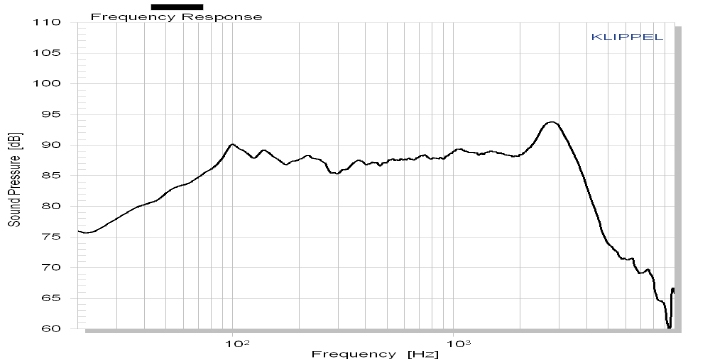

Accuton C220-11-221 Frequency chart
Accuton C220-11-221 Impedance curve

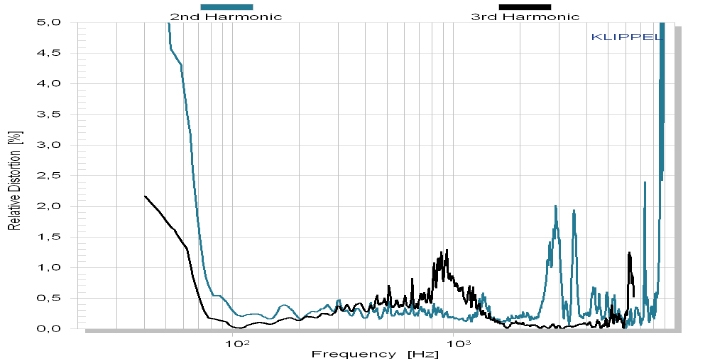

Accuton C220-11-221 Distortion

€715.00 *

Prices incl. VAT plus shipping costs

Delivery time approx. 5 working days

  • Order number: 7422223
Description Evaluations 0
Description
Highlights: 8.5 inch bass-midrange for 2 or 3-way floorstanders medium sized voice... more
Close menu
Product information "Accuton C220-11-221"

Highlights:

  • 8.5 inch bass-midrange for 2 or 3-way floorstanders

  • medium sized voice coil with 38mm titanium voice coil former for high midrange resolution

  • version with 11 Ohm impedance for tube amps or multiple parallel driver arrays



Specifications

  • power handling (continuous/programme) = 150 W
  • frequency range = 32-2000 Hz
  • resonance frequency fs = 25,2 Hz
  • impedance R = 12 Ohm
  • sound pressure level SPL = 88 dB (2,83V; 1m)
  • DC resistance Re = 10,9 Ohm
  • force factor BL = 11,1 N/A
  • voice coil inductance L = 1,2 mH
  • effective piston radiating area Sd = 227 cm2
  • effective mechanical mass incl. air load mms = 30,6 g
  • equivalent volume of compliance Vas = 95 l
  • total Q factor Qts = 0,4 (Qms=6,74, Qes=0,43)
  • voice coil diameter = 38 mm
  • maximum peak linear excursion vibration xlin = +/- 5 mm
  • mounting diameter d = 190,5 mm
  • overall diameter d = 220 mm
  • mounting depth (not countersunk) t = 105 mm
  • mass m = 2,10 kg
