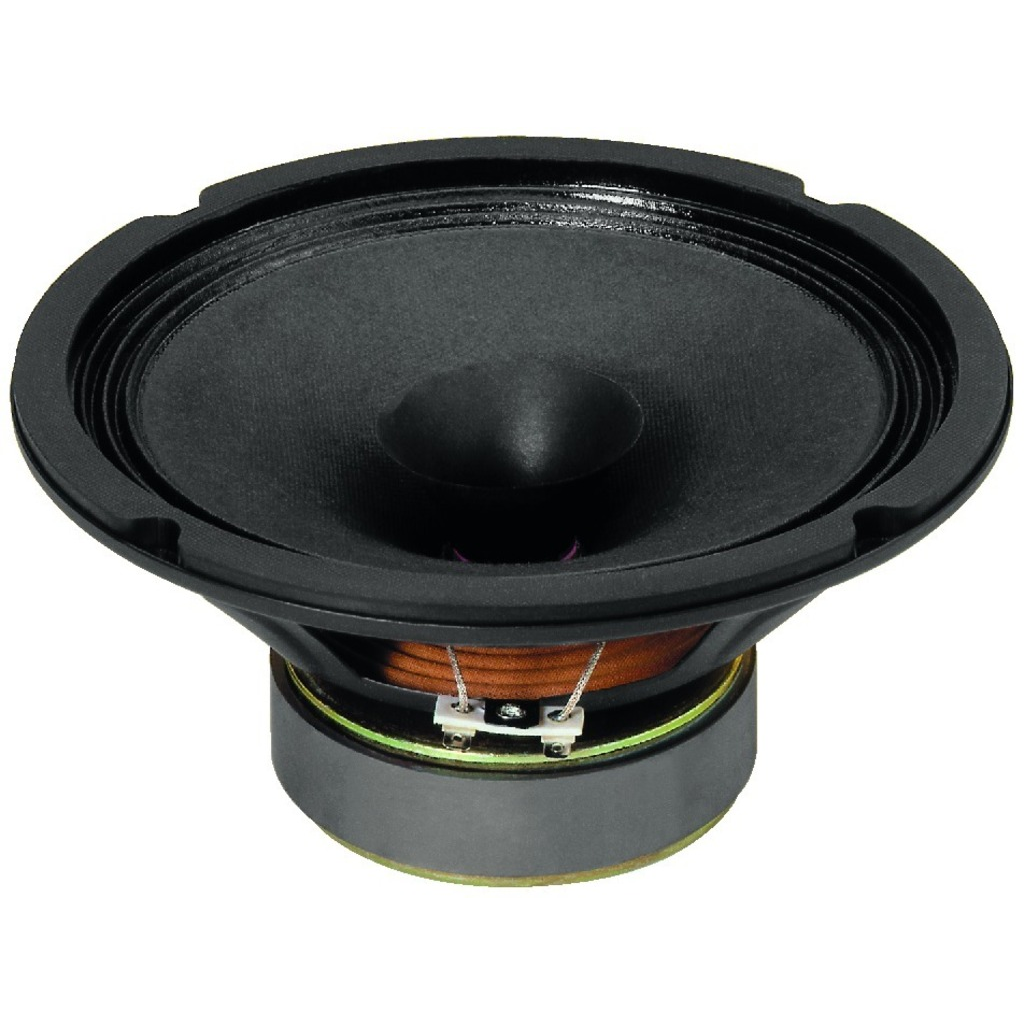

Monacor SP-200X

Monacor
Preview: Monacor SP-200X Preview: Monacor SP-200X Preview: Monacor SP-200X
Monacor SP-200X
Monacor SP-200X
Monacor SP-200X

€47.75 *

Prices incl. VAT plus shipping costs

Delivery time appr. 1-3 workdays

  • Order number: mon-sp-200x
Description Evaluations 0
Description
HiFi Full Range Speakers with Dual Cone   A comfortable alternative to reproduce... more
Close menu
Product information "Monacor SP-200X"

HiFi Full Range Speakers with Dual Cone



A comfortable alternative to reproduce the entire frequency spectrum in a high-quality way. HiFi full range speaker, 70WMAX, 8Ω



With one-piece rubber gasket, very good linearity and high efficiency, an excellent full range speaker of high power capability which can be used as midrange speaker in PA systems of special sound requirements or in large column speakers.



Technical Facts Speakers
 Impedance (Z)                    8Ω
 Resonant frequency (fs)       50Hz
 Max. frequency range          f3-15,000Hz
 Music power                        70WMAX
 Power rating (P)                  35WRMS
 SPL (1W/1m)                      92dB
 Suspension compl. (Cms)    0.77mm/N
 Moving mass (Mms)            11.5g
 Mech. Q factor (Qms)          1.96
 Electr. Q factor (Qes)          0.7
 Total Q factor (Qts)             0.52
 Equivalent volume (Vas)      48 l
 DC resistance (Re)              7.2Ω
 Force factor (BxL)               6.1Tm
 Voice coil induct. (Le)          0.3mH
 Voice coil diameter             25.5mm
 Voice coil former                aluminium
 Linear excursion (XMAX)     ±1.6mm
 Eff. cone area (Sd)             210cm2
 Magnet weight                   500g
 Weight                              1.3kg
