SB Acoustics SB23NACS45-8

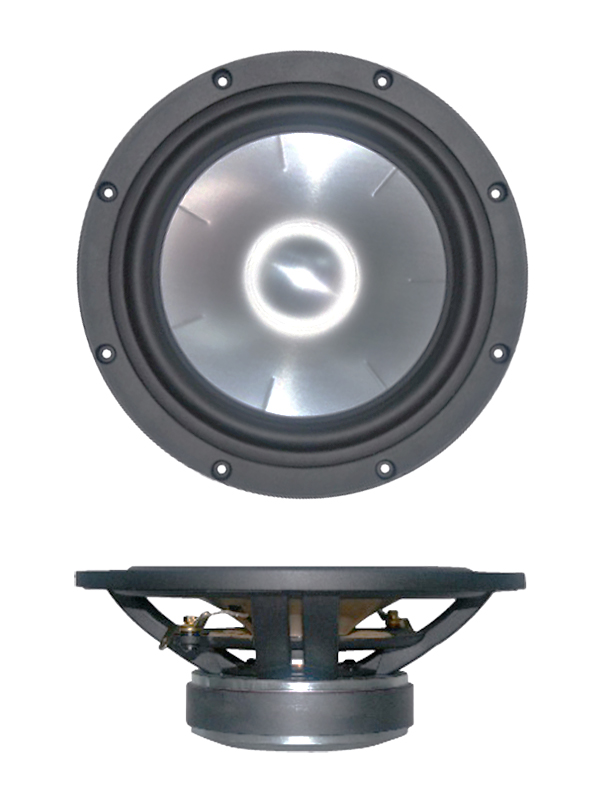

SB Acoustics SB23NAC45-8 8" Woofer

• Soft low damping rubber surround for improved transient response
• Geometrically reinforced aluminum cone for improved break-up control
• Shorting ring in motor system for reduced distortion
• Vented pole piece for reduced compression
• Vented cast aluminum chassis for optimum strength and low compression
• Shallow design
• Non-conducting fibre glass voice coil former for minimum damping
• CCAW voice coil for reduced moving mass
• Long life silver lead wires

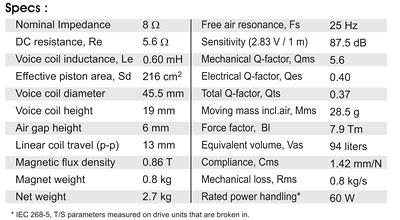

Specifications

• power handling (continuous/programme) = 60 W
• resonance frequency fs = 25 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 87.5 dB (2,83V; 1m)
• DC resistance Re = 5.6 Ohm
• force factor BL = 7.9 N/A
• voice coil inductance L = 0,16 mH
• effective piston radiating area Sd = 216 cm²
• effective mechanical mass incl. air load mms = 28.5 g
• equivalent volume of compliance Vas = 94 l
• total Q factor Qts = 0.37 (Qms=5.6, Qes=0.40)
• voice coil diameter = 45,5 mm

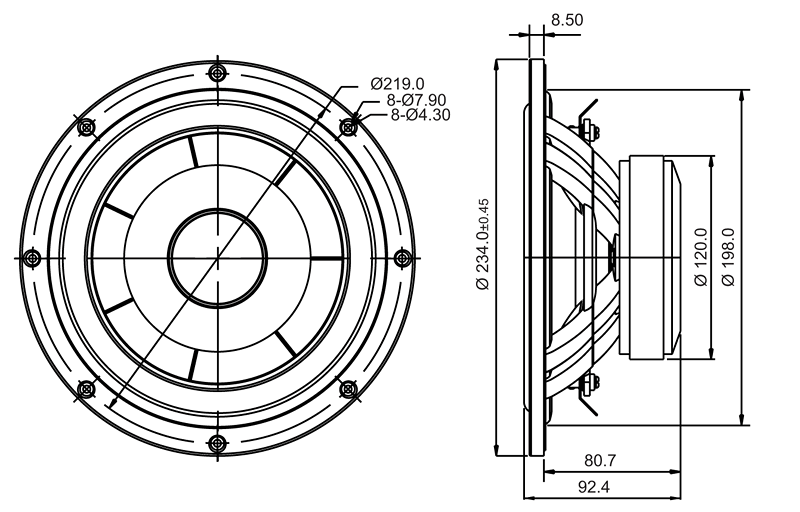

• mounting diameter d = 198 mm
• overall diameter d = 234 mm
• mounting depth (not countersunk) t = 81 mm
