SB Acoustics SB20PFCR30-4

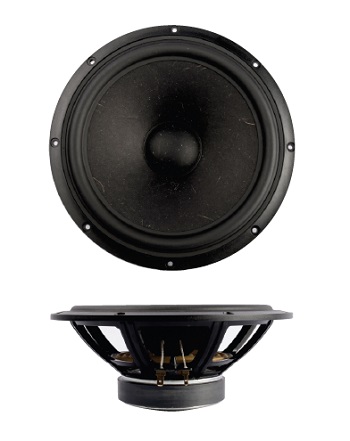

SB Acoustics SB20PFCR30-4 8" Woofer

• Vented reinforced plastic chassis
• Proprietary cone material with natural fibers made in-house
• Soft low damping rubber surround for improved transient response
• Large spider for improved linearity
• Optimized motor system
• Vented coil former for low compression
• Non-resonant long life lead wires

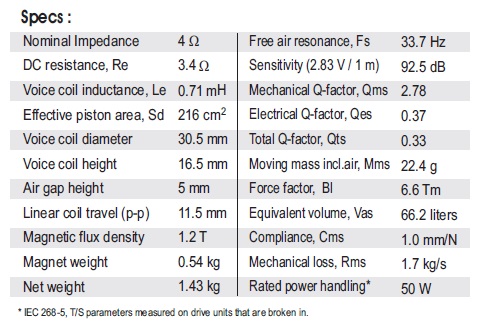

Specifications

• power handling (continuous/programme) = 50 W

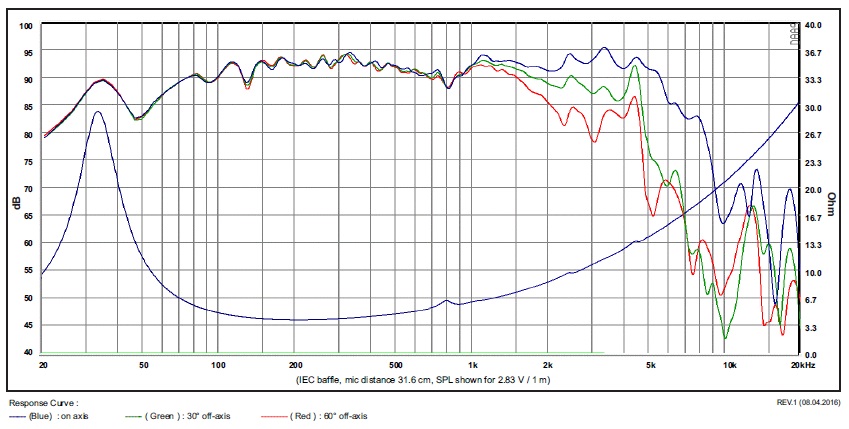

• frequency range = 30-5000 Hz
• resonance frequency fs = 33,7 Hz
• impedance R = 4 Ohm
• sound pressure level SPL = 92.5 dB (2,83V; 1m)
• DC resistance Re = 3,4 Ohm
• force factor BL = 6,6 N/A
• voice coil inductance L = 0.71 mH
• effective piston radiating area Sd = 216 cm²
• effective mechanical mass incl. air load mms = 22,4 g
• equivalent volume of compliance Vas = 66,2 l
• total Q factor Qts = 0.33 (Qms=2.78, Qes=0.37)
• voice coil diameter = 30 mm

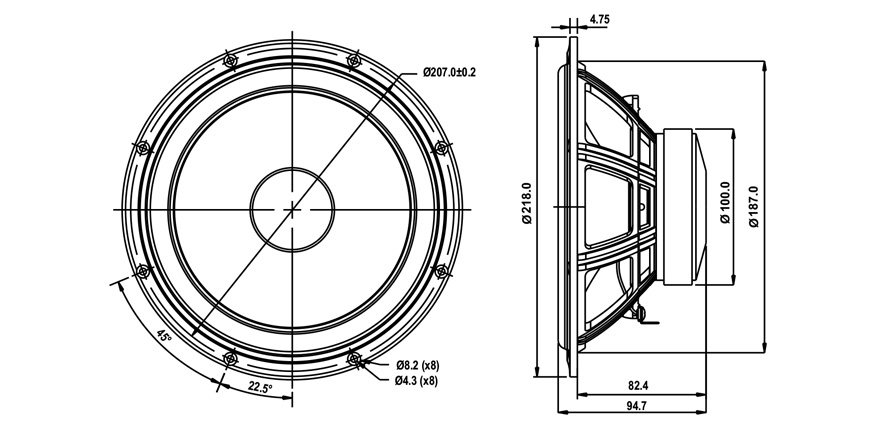

• mounting diameter d = 187 mm
• overall diameter d = 233mm
• mounting depth (not countersunk) t = 82,4 mm
