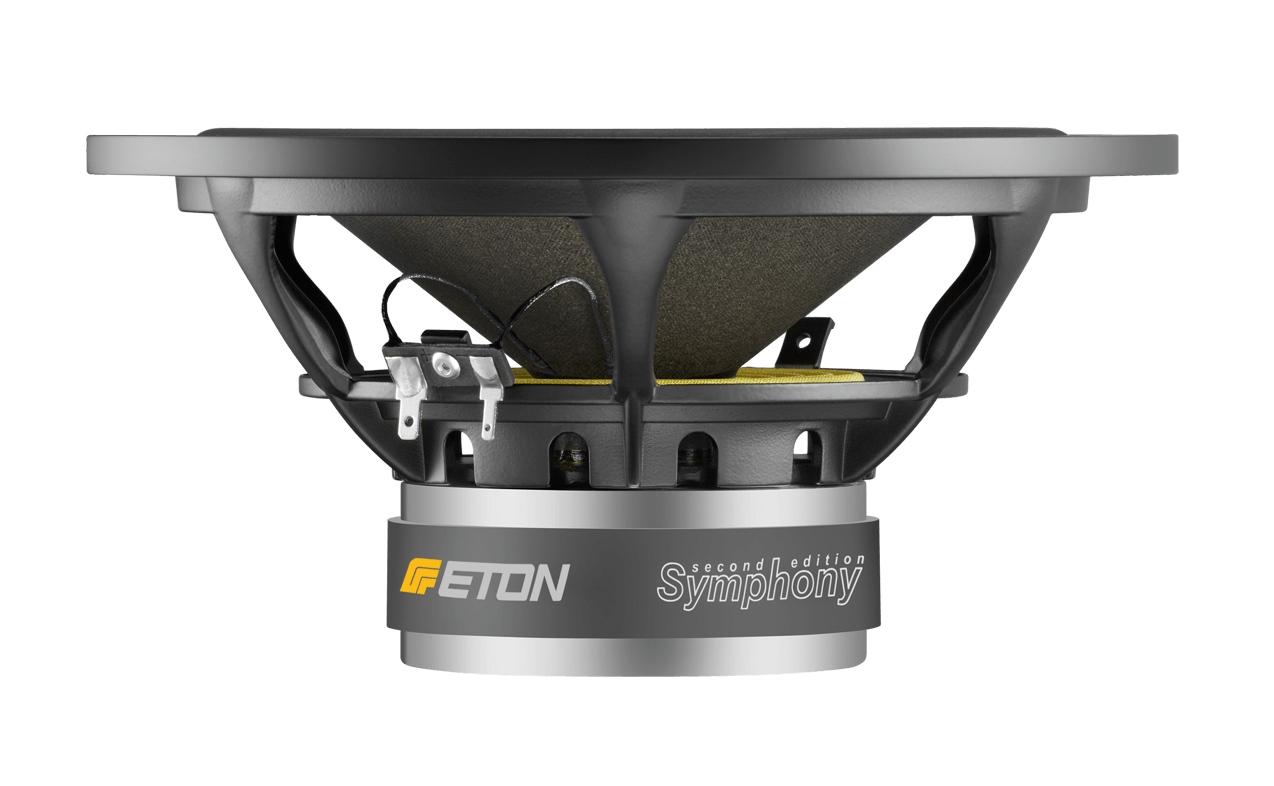

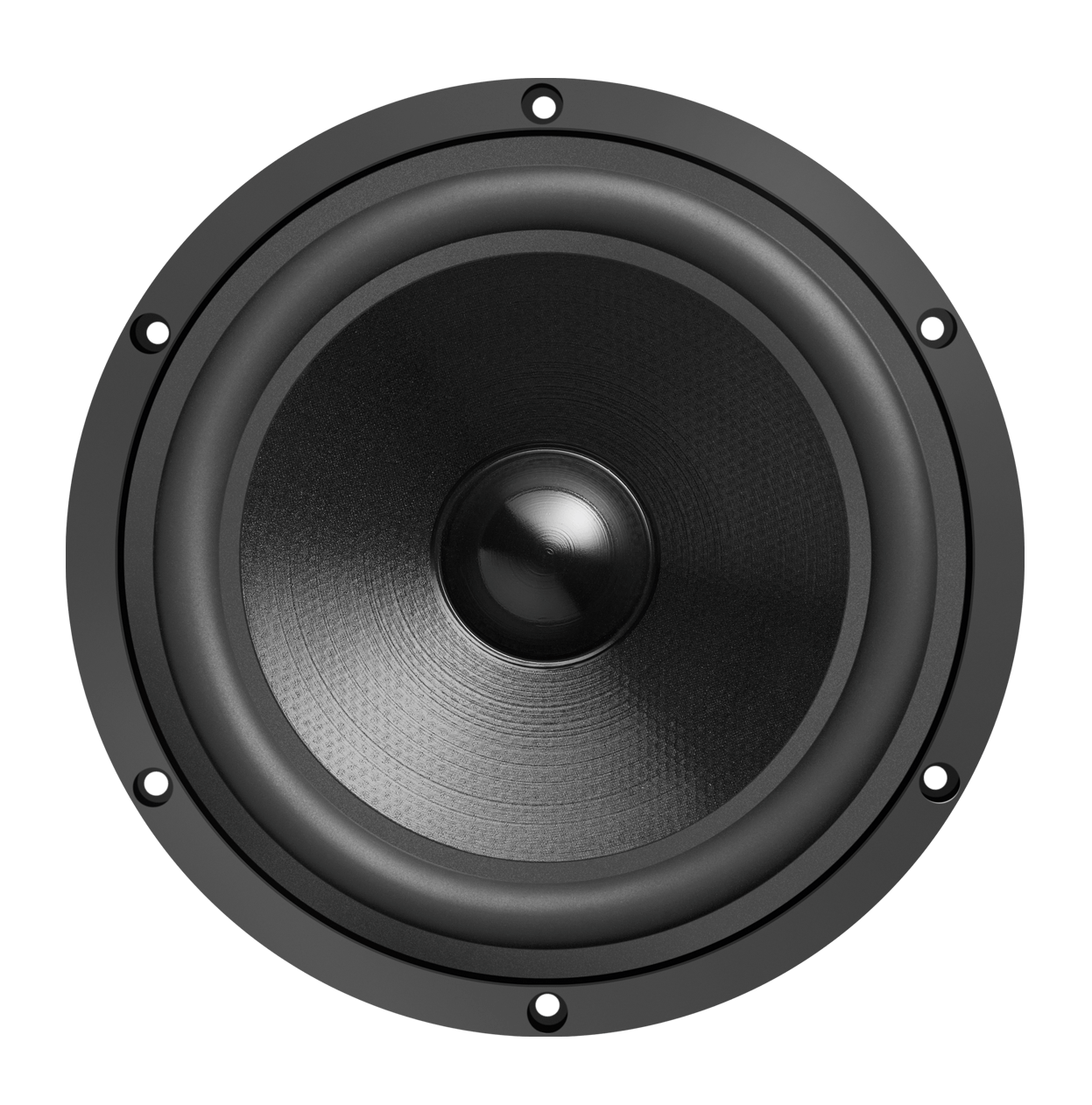

Eton 8-212/C8/37 Hex

8“ Bass-Midrange driver for multiple usage,3-layer Hexacone Sand-wich cone, equipped with a solid bass-base, fast and crispy bass reproduction, high dynamic reproduction also at lower mid-frequency range.

Specifications

• power handling (continuous/programme) = 120 W
• frequency range = 40-2000 Hz
• resonance frequency fs = 27 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 91 dB (2,83V; 1m)
• DC resistance Re = 5,5 Ohm
• force factor BL = 9 N/A
• voice coil inductance L = 0,78 mH
• effective piston radiating area Sd = 222 cm²
• effective mechanical mass incl. air load mms = 30,7 g
• equivalent volume of compliance Vas = 80 l
• total Q factor Qts = 0,31 (Qms=9,31, Qes=0,32)
• voice coil diameter = 37 mm
• maximum peak linear excursion vibration x_lin = +/- 4 mm
• mounting diameter d = 190 mm
• overall diameter d = 223 mm
• mounting depth (not countersunk) t = 100,5 mm
