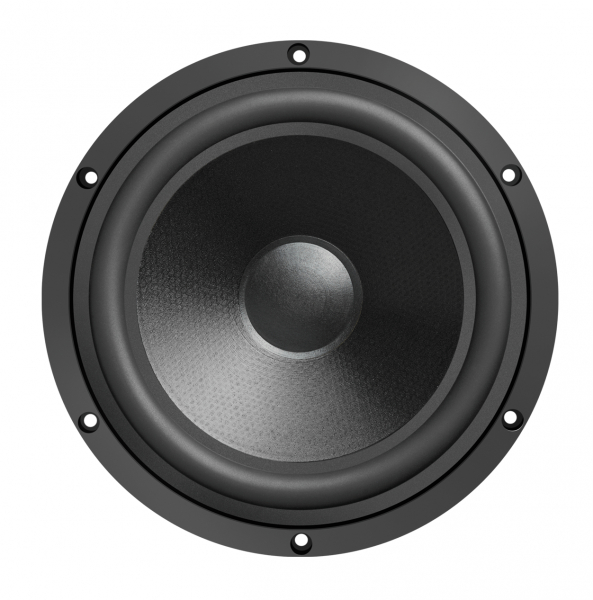

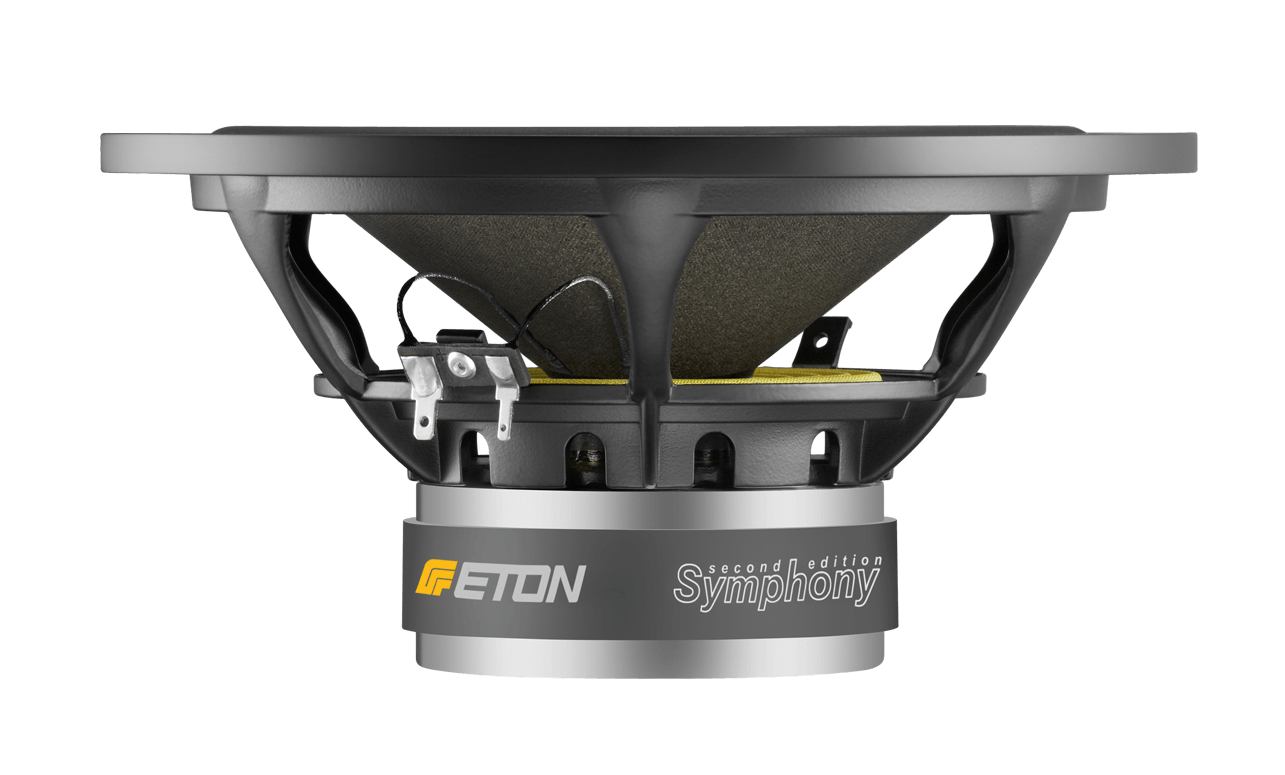

Eton 8-412/C8/32 Hex

8“ long stroke Bass driver,3-layer Hexacone Sandwich cone, fast and strong repro-duction, useful for deep bass reproduction, rich and voluminous bass-base.

Specifications

• power handling (continuous/programme) = 80 W
• frequency range = 40-2000 Hz
• resonance frequency fs = 25 Hz
• impedance R = 8 Ohm
• sound pressure level SPL = 89 dB (2,83V; 1m)
• DC resistance Re = 7,0 Ohm
• force factor BL = 8,0 N/A
• voice coil inductance L = 0,72 mH
• effective piston radiating area Sd = 222 cm²
• effective mechanical mass incl. air load mms = 29,6 g
• equivalent volume of compliance Vas = 101 l
• total Q factor Qts = 0,40 (Qms=5,54, Qes=0,43)
• voice coil diameter = 32 mm
• maximum peak linear excursion vibration x_lin = +/- 5,5 mm
• mounting diameter d = 190 mm
• overall diameter d = 223 mm
• mounting depth (not countersunk) t = 100,5mm
