SB Acoustics Satori WO24TX-4 Advanced TeXtreme® cone for improved piston operation Large... more
Product information "SB Acoustics Satori WO24TX-4"

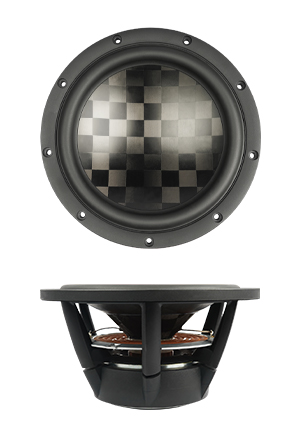

SB Acoustics Satori WO24TX-4
- Advanced TeXtreme® cone for improved piston operation
- Large optimized motor system with under-cut pole piece and dual shorting rings
- Vented aerodynamic cast aluminum chassis for optimum strength and low compression.
- Soft low damping rubber surround for optimum transient response
- Linear symmetric suspension design for improved dynamic performance
- Non-conducting fibre glass voice coil former for minimum damping
- Long life silver lead wires attached 180° apart for improved stability
- Vented pole piece for reduced compression
- Low piston to chassis diameter ratio
- Gasket and bolt hole protrusions for reduced coupling to speaker cabinet.
Specifications
- Nominal Impedance 4 Ω
- DC resistance, Re 3.3 Ω
- Voice coil inductance, Le 0.29 mH
- Effective piston area, Sd 255 cm2
- Voice coil diameter 49.5 mm
- Voice coil height 23.5 mm
- Air gap height 6 mm
- Linear coil travel (p-p) 17.5 mm
- Magnetic flux density 1.07 T
- Magnet weight 1.36 kg
- Net weight 3.9 kg
- Free air resonance, Fs 26.3 Hz
- Sensitivity (2.83V/1m) 91 dB
- Mechanical Q-factor, Qms 5.66
- Electrical Q-factor, Qes 0.37
- Total Q-factor, Qts 0.35
- Moving mass incl. air,Mms 42.8 g
- Force factor, Bl 7.9 Tm
- Equivalent volume, Vas 79 liters
- Compliance, Cms 0.86 mm/N
- Mechanical loss, Rms 1.25 kg/s
- Rated power handling* 90 W
